Cree XLamp XP-E High Power LED Star

Cree XLamp XP-E High Power LED Star
Click to enlarge

More images

Sale Price: $3.99
Compared at: $4.39
You Save: $0.40
PART #: CREEXPE-XXX-X
Volume Discounts
PCS% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class
FREE
Priority Mail
$5.99
FedEx Ground
$7.99
UPS Ground
$8.99
FedEx Express
CALC
349PCS IN-STOCK
Add to Cart
ORDER BY 3PM EST FOR
SAME DAY SHIPPING

Product Details


Features

XLamp Reliability: XR-E LED Packed in 80% Smaller Foot-print White CRI: 80-CRI, 85-CRI & 90 CRI
Max Drive Current: Up to 1000mA Wide Viewing Angle: 115° to 130°
Secondary Optics: Compatible with Carclo Optics Compliance: RoHS & REACH
Thermal Resistance: Low as 8°C/W Max. Junction Temp.: 150°C
Compliant: RoHS and REACH Colors: Deep-Red, Red, Green, Blue, Infrared & More




Description

The Cree XLamp® XP-E LED increases upon the proven technology from the XR-E line; Cree has reduced the space between the die, inside a package with an 80 percent smaller footprint and 69 percent more flux than the XR-E.

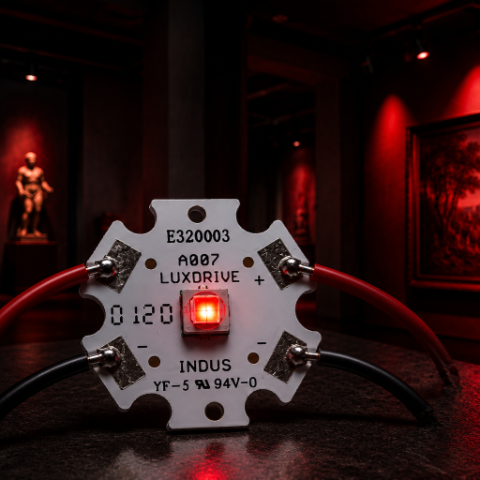

LED Star MCPCB

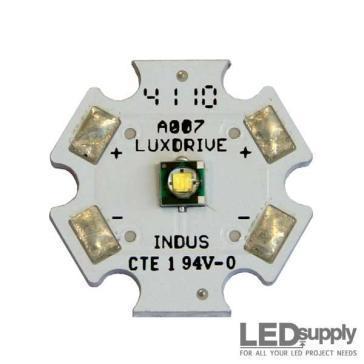

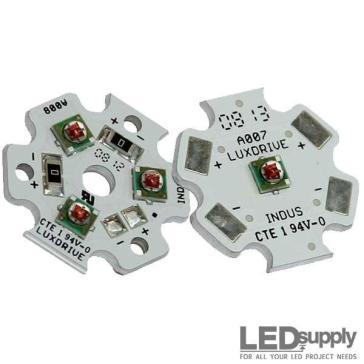

We offer the XP-E in two metal core printed circuit board (MCPCB) versions: a single (1-Up: 1 LED) and triple (3-Up: 3 LEDs). The 1-Up is a single XP-E LED reflow soldered to a 20mm hexagonal (LED Star) MCPCB. The MCPCB has four large solder pads for easy solder connections. The 3-Up is three (3) XP-E LEDs reflow soldered in-series to a 20mm hexagonal MCPCB. The 3-Up MCPCB has two solder pads for connections, mounting holes for secondary carclo optics and a center hole for wires or securing the LED star to a heat sink.

Colors

The XP-E LED is offered here in Far Red &Photo Red. The XP-E has been superseded by the XP-E2, and is limited in production. We continue to list the item for reference and in this case because some XP-E LEDs are still available.

Secondary Optics

Both versions (1-Up & 3-Up) of the XP-E are designed to work with secondary optics from Carclo; Carclo is a leader in molded poly-carbonate lens systems. The 1-Up secondary lens system combines a plastic holder and lens that sits on top of the 1-Up MCPCB, while the 3-Up optic is a one-piece system with three legs that sit down into corresponding holes on the 3-Up MCPCB. These secondary optics focus light into narrow, medium, wide and elliptical patterns. More information is available on optics that mate with the XP-E LED on this page under the Accessories tab above.

Images, Part Numbers & Notes

Selecting the LED options near the 'add to cart' button to see the corresponding product image and part number. For referencing detailed specifications there are tables and downloadable documentation below.Important Note: Unless noted otherwise the specifications list are for a single XP-E LED. This means that in most cases the values need to be tripled for applications with the 3-Up version. For Example, if the forward voltage listed is 2.95V @ 350mA, then the 3-Up version would be 8.85V.




Product Images

Cool-White 5000K Cree XP-E LEDCOOL-WHITE 5000K
CREEXPE-W105
Royal-Blue Cree XP-E LEDROYAL-BLUE
CREEXPE-ROY-1
Blue Cree XP-E LEDBLUE
CREEXPE-BLU-1
Green Cree XP-E LEDGREEN
CREEXPE-GRN-1
Amber Cree XP-E LEDAMBER
CREEXPE-AMB-1
Red-Orange Cree XP-E LEDRED/ORANGE
CREEXPE-RDO-1
Red Cree XP-E LEDRED
CREEXPE-RED-1
Deep-Red 660nm Cree XP-E LEDPHOTO-RED
CREEXPE-DRD-1
Infrared-Red 720nm Cree XP-E LEDFAR-RED
CREEXPE-FRD-1
Cool-White 5000K Cree XP-E LED3-Up COOL-WHITE
CREEXPE-W315
Royal-Blue Cree XP-E LED3-Up ROYAL-BLUE
CREEXPE-ROY-3
Blue Cree XP-E LED3-Up BLUE
CREEXPE-BLU-3
Green Cree XP-E LED3-Up GREEN
CREEXPE-GRN-3
Amber Cree XP-E LED3-Up AMBER
CREEXPE-AMB-3
Red-Orange Cree XP-E LED3-Up RED/ORANGE
CREEXPE-RDO-3
Red Cree XP-E LED3-Up RED
CREEXPE-RED-3
Deep-Red 660nm Cree XP-E LED3-Up DEEP-RED
CREEXPE-DRD-3
Infrared-Red 720nm Cree XP-E LED3-Up Infrared-Red
CREEXPE-FRD-3




Technical Documentation

Color
CCT Min.
CCT Max.
Group
Min. Flux
Order Code
Part #
XP-E2 Replacement
Cool White
5,000K
10,000K
Q4
100
XPEWHT-L1-0000-00C01
CREEXPE-W105
Royal Blue
450nm
465nm
15
425mW
XPEROY-L1-0000-00A01
CREEXPE-ROY-1
Blue
465nm
485nm
J
23.5
XPEBLU-L1-0000-00W01
CREEXPE-BLU-1
Green
520nm
535nm
Q4
100
XPEGRN-L1-0000-00C01
CREEXPE-GRN-1
Amber
585nm
595nm
N4
62
XPEAMB-L1-0000-00601
CREEXPE-AMB-1
Red Orange
610nm
620nm
P3
73.9
XPERDO-L1-0000-00801
CREEXPE-RDO-1
Red
620nm
630nm
N3
56.8
XPERED-L1-0000-00501
CREEXPE-RED-1
Photo Red
650nm
670nm
13
300mW
XPEPHR-L1-0000-00801
CREEXPE-DRD-1
N/A
Far Red
720nm
740nm
11
210mW
XPEFAR-L1-0000-00601
CREEXPE-FRD-1
N/A
Cool White
5,000K
10,000K
Q4
300
XPEWHT-L1-0000-00C01
CREEXPE-W315
Royal Blue
450nm
465nm
15
1275mW
XPEROY-L1-0000-00A01
CREEXPE-ROY-3
Blue
465nm
485nm
J
70.5
XPEBLU-L1-0000-00W01
CREEXPE-BLU-3
Green
520nm
535nm
Q4
300
XPEGRN-L1-0000-00C01
CREEXPE-GRN-3
Amber
585nm
595nm
N4
186
XPEAMB-L1-0000-00601
CREEXPE-AMB-3
Red Orange
610nm
620nm
P3
221.7
XPERDO-L1-0000-00801
CREEXPE-RDO-3
Red
620nm
630nm
N3
168
XPERED-L1-0000-00501
CREEXPE-RED-3
Deep Red
650nm
670nm
13
900mW
XPEPHR-L1-0000-00801
CREEXPE-DRD-3
N/A
Infrared
720nm
740nm
11
630mW
XPEFAR-L1-0000-00601
CREEXPE-FRD-3
N/A

Notes for Table

  • Cree maintains a tolerance of +/- 7% on flux and power measurements.
  • Typical CRI for Cool White & Neutral White (3,700 K â€" 10,000 K CCT) is 75.
  • Typical CRI for Outdoor White (4,000 K - 5,300 K CCT) is 70.
  • Typical CRI for Warm White (2,600 K â€" 3,700 K CCT) is 80.
  • Cree maintains a tolerance of +/- 7% on flux and power measurements.
  •

    Characteristics
    Unit
    Min.
    Typical
    Max.
    Thermal Resistance, junction to solder point - white, royal blue, blue
    °C/W
    9
    Thermal Resistance, junction to solder point - green
    °C/W
    15
    Thermal Resistance, junction to solder point - amber
    °C/W
    10
    Thermal Resistance, junction to solder point - red, red-orange, photo red, far red
    °C/W
    8
    Viewing Angle (FWHM) - white
    °Degree
    115
    Viewing Angle (FWHM) - royal blue, blue, green, red, red-orange, amber, photo red, far red
    °Degree
    130
    Temperature coefficient of voltage - white
    mV/°C
    -4.0
    Temperature coefficient of voltage - royal blue, blue
    mV/°C
    -3.3
    Temperature coefficient of voltage - green
    mV/°C
    -3.8
    Temperature coefficient of voltage - red-orange, red
    mV/°C
    -1.8
    Max.
    Temperature coefficient of voltage - amber
    mV/°C
    -1.2
    Temperature coefficient of voltage - photo red
    mV/°C
    -3.0
    Temperature coefficient of voltage - Far Red
    mV/°C
    -1.0
    ESD Withstand Voltage (HBM per Mil-Std-883D) white, royal-blue, blue, green
    V
    8000
    ESD Classification (HBM per Mil-Std-883D) amber, red-orange, red, photo red, far red
    Class 2
    DC Forward Current - white, royal blue, blue, green, photo red, far red
    mA
    1000
    DC Forward Current - red-orange, red
    mA
    700
    DC Forward Current - amber
    mA
    500mA
    Reverse Voltage
    V
    5
    Forward Voltage (@ 350 mA) - royal blue, blue, white
    V
    3.2
    3.9
    Forward voltage (@ 350 mA) - green
    V
    3.4
    3.9
    Forward voltage (@ 350 mA) - red-orange, red, amber, photo red
    V
    2.1
    2.5
    Forward voltage (@ 350 mA) - far red
    V
    1.9
    2.4
    Forward voltage (@ 500 mA) - amber
    V
    2.3
    Forward voltage (@ 700 mA) - white
    V
    3.4
    Forward voltage (@ 700 mA) - red-orange, red, photo red
    V
    2.3
    Forward voltage (@ 700 mA) - far red
    V
    2.1
    Forward Voltage (@ 1000 mA) - green
    V
    3.8
    Forward Voltage (@ 1000 mA) - white, royal blue, blue
    V
    3.5
    Forward Voltage (@ 1000 mA) - photo red
    V
    2.5
    Forward Voltage (@ 1000 mA) - far red
    V
    2.25
    LED Junction Temperature
    °C
    150

    Notes for Table

  • The increase of maximum forward current to 1000 mA for XLamp XP-E White is retroactive and applies to all XLamp XP-E White LEDs produced by Cree. This increase is the result of more extensive testing that was performed after the initial product launch.
  •


    Important Information

    Average Lumen Maintenance CharacteristicsBased on internal long-term reliability testing, Cree projects royal blue, blue, green and white XLamp XP-E LEDs to maintain an average of 70% lumen maintenance after 50,000 hours, provided the LED junction temperature is maintained at or below 135°C and the LED is operated with a constant current of up to 700 mA.

    Cree currently recommends a maximum drive current of 700 mA for XLamp XP-E white in designs seeking the ENERGY STAR* 35,000 hour lifetime rating (≥ 94.1% luminous flux @ 6000 hours) or 25,000 hour lifetime rating (≥ 91.8% luminous flux @ 6000 hours).

    Please read the XLamp Long-Term Lumen Maintenance application note for more details on Cree’s lumen maintenance testing and forecasting. Please read the XLamp Thermal Management application note for details on how thermal design, ambient temperature, and drive current affect the LED junction temperature.

    * These lifetime ratings are based on the current ENERGY STAR Solid State Lighting Luminaires V1.1 (December 12, 2008) and ENERGY STAR Integral LED Lamps V1.0 (December 3, 2009) lumen maintenance criteria.




    Full Documentation
