Flexible LED Light Sheet - 24V High Brightness CCT & RGB Panel

Description

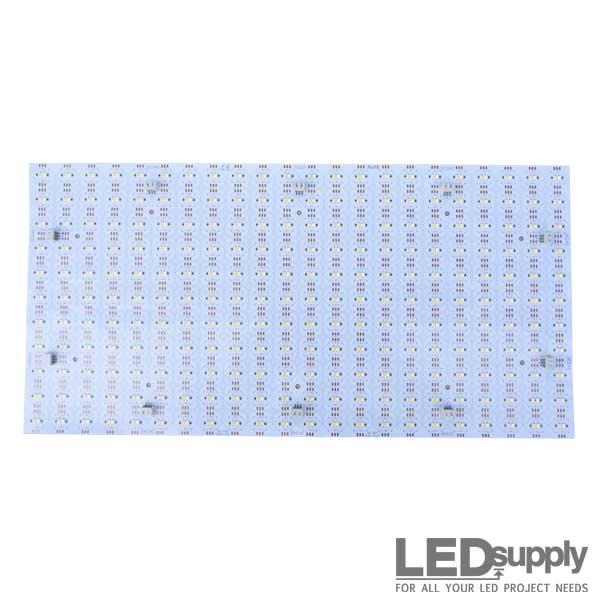

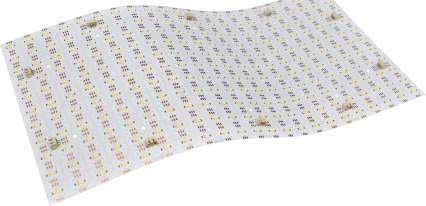

Illuminate large surfaces with clean, uniform lighting using our Flexible LED Light Sheets - an advanced solution for backlighting, architectural accents, display cases, and signage. Unlike traditional LED strips or spot modules that can leave hotspots or uneven brightness, these generously sized 490mm × 245mm (20” × 10”) flexible panels spread light evenly across wide areas, making them the ideal choice for high-end installations and visual impact.

Premium LEDs, Professional Results

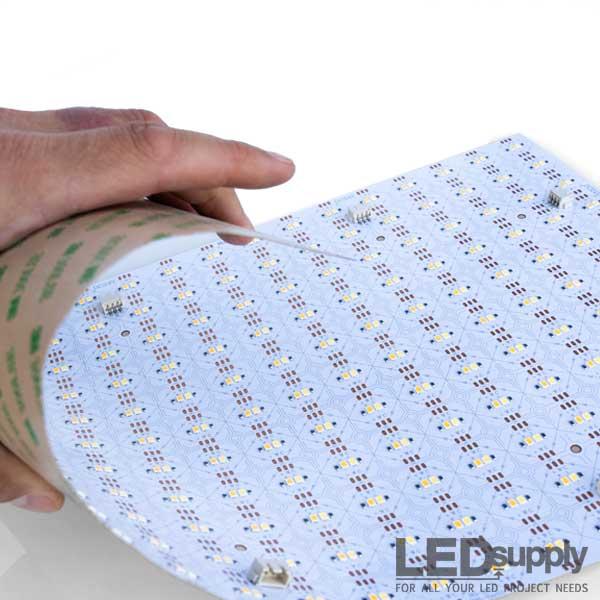

Each sheet is built with premium Lumileds SMD chips, delivering industry-leading efficacy, color accuracy, and long-term reliability. These are not generic LED modules — they outperform lower-tier alternatives with significantly higher lumen output, tighter binning, and longer lifespan. A 120° wide beam angle ensures powerful yet diffused illumination across large surfaces, while the double-layer PCB enhances thermal performance and durability. Backed with genuine 3M adhesive, these panels mount securely and stay in place for the long haul, even in demanding installations.

Choose between two versions:

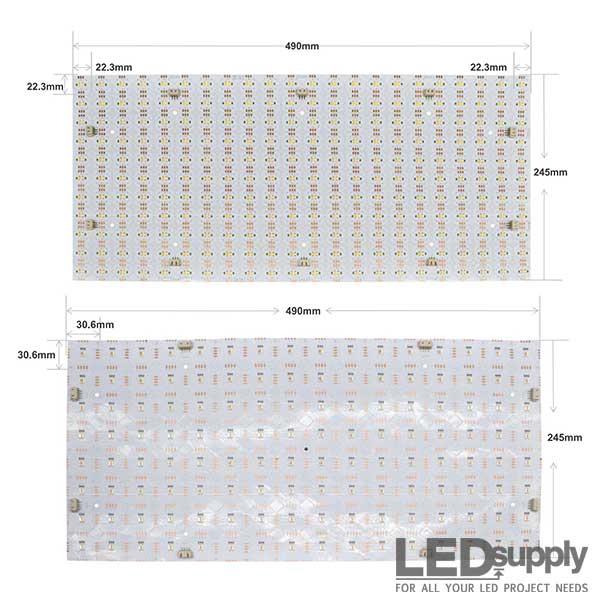

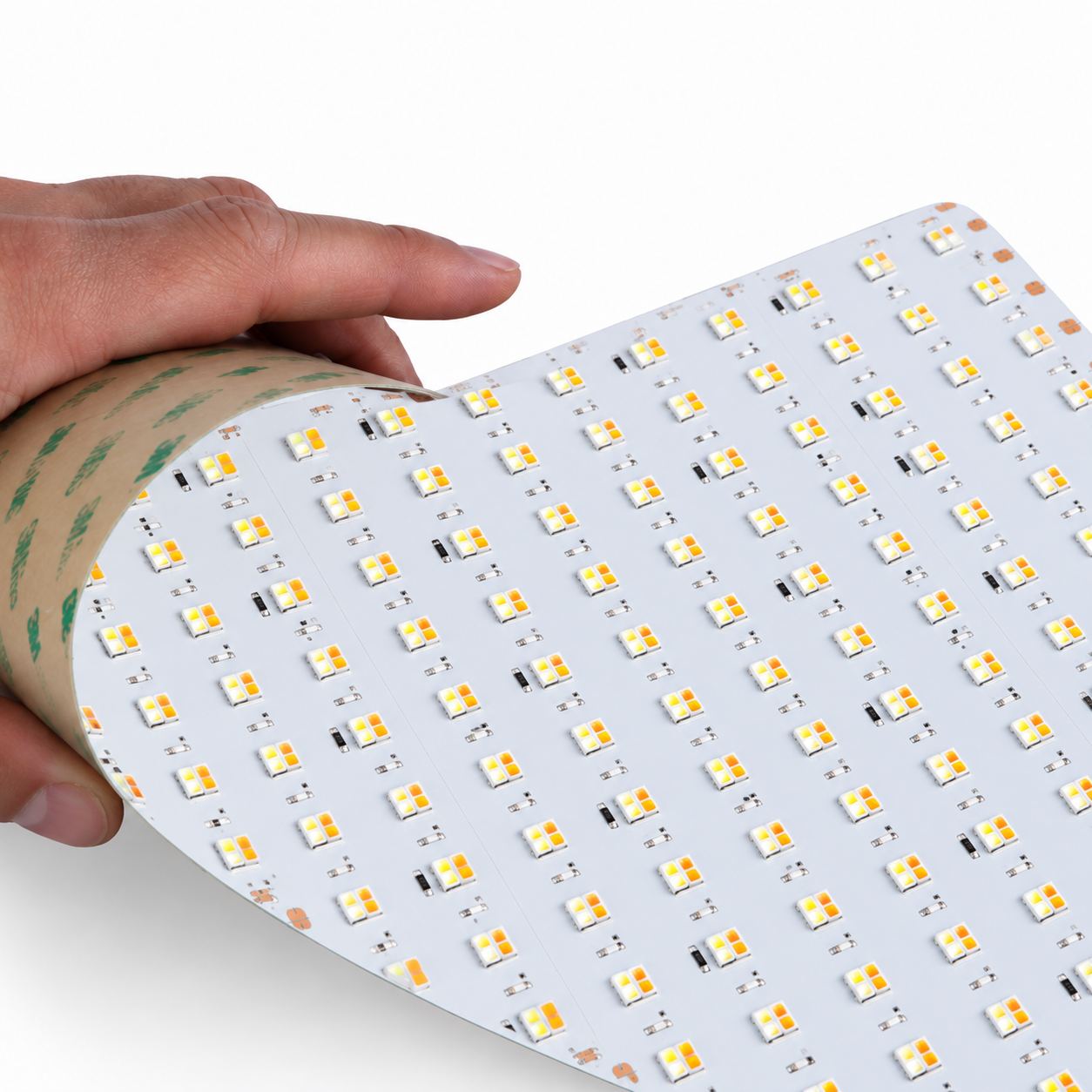

Tunable White (484 LEDs): Adjust between 2700K and 6500K using dual-channel control to create the perfect white tone for any environment. Cuttable every 22.3mm (0.88") for ultimate flexibility.

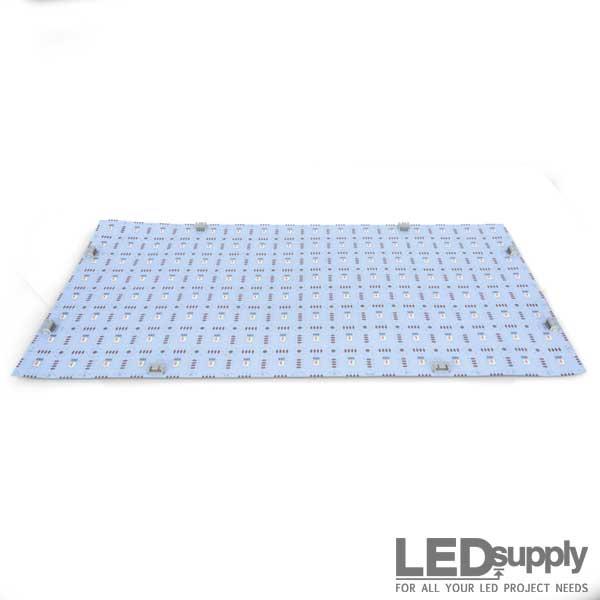

RGB (128 LEDs): Full-spectrum color control for bold, vibrant lighting scenes in signage, entertainment, or decorative spaces. Cuttable every 30.6mm (1.2") for easy customization.

Plug, Link, and Light - Accessories Included

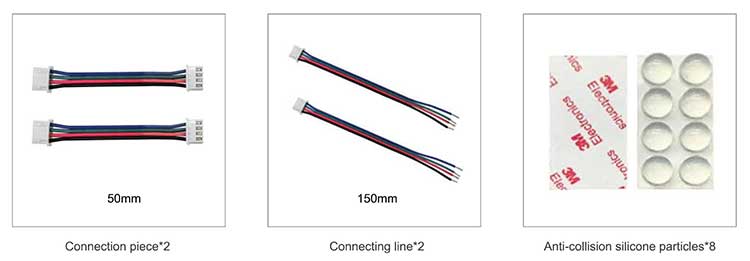

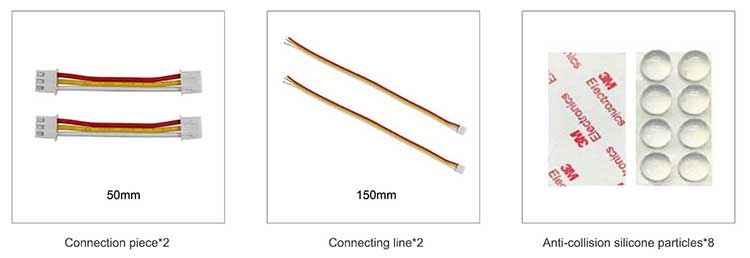

Designed for 24V DC systems, both versions are linkable and ship with included accessories like connecting leads and silicone anti-collision pads for fast, modular setup. With a rated lifespan of 36,000 hours, these LED sheets offer a premium combination of performance, ease of use, and professional-grade results.

Technical Documentation
