Cree XLamp XM-L High Power LED Star

More images

Regular Price: $10.53

Sale Price: $9.48

You Save: $1.05

PART #: CREEXML-XXXX

VOLUME DISCOUNTS

PCS

% OFF

10 - 49

50 - 99

7.5%

100 - 249

15%

250 - 499

20%

*Shipping Information

First Class > $39.99

FREE

First Class

$3.99

Ground

$11.99

2-Day

$13.99

Express

CALC

Purchase

Product ID #CREEXML-XXXX has been discontinued

Click here to visit the replacement product

Product Details

XLamp Reliability: 20% More Efficient than XP-G	Colors: Cool-White, Neutral-White & Warm-White
Max Drive Current: Up to 3000mA	Wide Viewing Angle: 115°
Secondary Optics: Compatible with Carclo Optics	Binned: White Binned @ 25°C
Thermal Resistance: Low as 2.5°C/W	Max. Junction Temp.: 150°C
Compliant: RoHS	XP-E2 Emiiter Size: 5mm X 5mm

Description

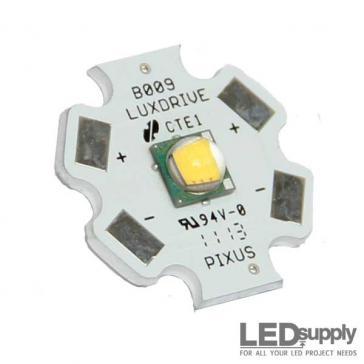

The Cree XLamp® XM-L LED offers extremely high efficacy at high drive currents, providing up to 1000 lumens at 3A (Maximum Driver Current) inside a 5mm package and re-flowed to a 20mm metal core printed circuit board (MCPCB). The 20mm MCPCB is a standard hexagonal shape (LED Star), compatible with Carclo optics, electrically isolated and shaped so multiple LED stars can be packed closely together to increase light output per unit area. LEDSupply offers the XM-L in cool-white, neutral-white and warm-white.

Product Images

COOL-WHITE 6500K
CREEXML-W280

NEUTRAL-WHITE 4000K
CREEXML-NW260

WARM-WHITE 3000K
CREEXML-WW220

Technical Documentation

Color

CCT Min.

CCT Max.

Group

Min. Flux

Order Code

Part #

Replacement Part

Cool White

5,000K

8,300K

280

XMLAWT-00-0000-0000T6051

CREEXML-W280

CREEXML2-W318

Neutral White

3,700K

5,000K

260

XMLAWT-00-0000-000LT50F4

CREEXML-NW260

CREEXML2-NW296

Warm-White

2,600K

3,700K

220

XMLAWT-00-0000-000LT30F7

CREEXML-WW-220

CREEXML2-WW227

Characteristics

Unit

Min.

Typical

Max.

Thermal Resistance, junction to solder point

°C/W

2.5

Viewing Angle (FWHM)

°Degree

125

Temperature coefficient of voltage

mV/°C

-3.0

ESD Classification (HBM per Mil-Std-883D)

Class 2

DC Forward Current

3000

Reverse Voltage

Forward Voltage (@ 700 mA)

2.9

3.5

Forward Voltage (@ 1500 mA)

3.1

Forward Voltage (@ 3000 mA)

3.35

LED Junction Temperature

°C

150

Full Documenation

Cree XM-L Documentation
