Cree Xlamp XM-L2 High Power LEDs

Cree Xlamp XM-L2 High Power LED
Click to enlarge

More images

Sale Price: $6.99
Compared at: $7.69
You Save: $0.70
PART #: CREEXML2-XXXX
Volume Discounts
PCS% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class
FREE
Priority Mail
$5.99
FedEx Ground
$7.99
UPS Ground
$8.99
FedEx Express
CALC
548PCS IN-STOCK
Add to Cart
ORDER BY 3PM EST FOR
SAME DAY SHIPPING

Product Details


Features

Cree's SC3 Technology Platform: 20% More Efficient than XM-L! Colors: Cool-White, Neutral-White & Warm-White
Max Drive Current: Up to 3 Amps (3000mA)! Wide Viewing Angle: 125°
Secondary Optics: Compatible with Carclo 1-Up Optics Binned: Binned @ 85°C
Great Thermal Resistance: Low as 2.5°C/W Max. Junction Temp.: 150°C
Compliant: RoHS  XM Emitter Size: 5mm X 5mm




Description

SC3 Technology in the XM Package

Cree-XM-L2-emitter

Cree's XLamp XM-L2 delivers breakthrough lumen output and efficacy in the XM package (5x5mm). This emitter was updated and built on the SC3 technology platform. The silicon-carbide base helps the XM-L2 deliver up to 20% more lumens and lumens-per-watt over the original XM-L. This actually works out to double the lumens per dollar!



High Efficacy all the way to 3 Amps!

The XM-L2 has a unique combination of high efficacy and lumen output which is even prevalent at high drive currents. Running at the maximum 3 Amps, the XM-L2 will deliver 1198 lumens at 116 lumens-per-watt!


Larger Emitter:

XM footprint (5x5mm) compared to typical Cree XP package (3.45x3.45mm)



XM-L2-emitter-size

Did you know? The XM-L2 actually as the same die as the XP-L, just in a different package? See how this size makes all the difference here.

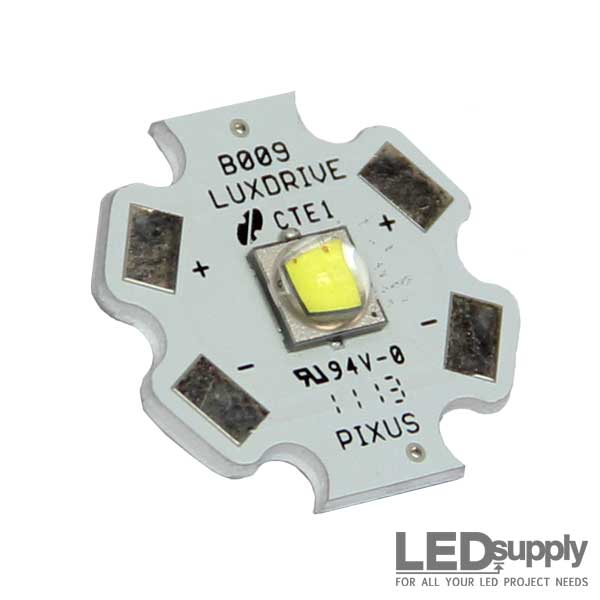

LED Star MCPCB

The larger footprint makes it so the XM-L2 cannot fit three to a board, therefore it is only offered in a 1-Up version. The 20mm MCPCB is a standard hexagonal shape (LED Star), with four solder pads for easy wiring. The MCPCB is compatible with Carclo optics, electrically isolated and shaped so multiple LED stars can be packed closely together to increase light output per unit area.



Secondary Optics

This LED star will work with the 10734 Carclo lens holder and compatible 1-Up Optics. See compatible optics up in the 'Accesories' tab on this page.


Colors & Product Images

Cool-White 6500K Cree XM-L2 LEDCOOL-WHITE 6500K
CREEXML2-W318
Neutral-White 4000K Cree XM-L2 LEDNEUTRAL-WHITE 4000K
CREEXML2-NW296
Warm-White 3000K Cree XM-L2 LEDWARM-WHITE 3000K
CREEXML2-WW227




Technical Documentation

Color
CCT Min.
CCT Max.
Group
Min. Flux
Order Code
Part #
Cool White
5,000K
8,300K
T6
318
XMLBWT-00-0000-0000T6051
CREEXML2-W318
Neutral White
3,700K
5,000K
T5
296
XMLBWT-00-0000-000LT50E4
CREEXML2-NW296
Warm-White
2,600K
3,700K
T3
250
XMLBWT-00-0000-000LT30E7
CREEXML2-WW227



Characteristics
Unit
Min.
Typical
Max.
Thermal Resistance, junction to solder point
°C/W
2.5
Viewing Angle (FWHM)
°Degree
125
Temperature coefficient of voltage
mV/°C
-1.6
ESD Classification (HBM per Mil-Std-883D)
Class 2
DC Forward Current
mA
3000
Reverse Voltage
V
5
Forward Voltage (@ 700 mA)
V
2.85
3.5
Forward Voltage (@ 1500 mA)
V
3.05
Forward Voltage (@ 3000 mA)
V
3.33
LED Junction Temperature
°C
150




Full Documentation



Product Reviews

Login or Register to write a review.
Reviewed by
01/24/2014 - 02:39:39 PM
Great Value
This LED is a really great value in terms of lumens per dollar. With the wide forward current range and low forward voltage the XML2 is really versatile. I use them for small battery operated lights, so I push them at 700mA to 1000A. With larger batteries or a plug-on power supply you can run them all the way up to 3000mA with no worries. Great product. I can't wait to see what Cree comes out with next!
Reviewed by
10/29/2013 - 07:04:57 PM
Price
Great Price!

I bought a few extra to get the next discount, but with all the support I received and the quality of the bins LEDSupply carries, I wouldn't buy from anyone else.
10/29/2013 - 06:59:46 PM
Amazing Technology
I keep thinking they (Cree/Luxeon) won't be able to get these little LEDs any bright or more efficient and each time I say it, I'm wrong. This XML2 has an incredibly low forward voltage (2.85Vdc @ 700mA) and an extremely high maximum forward current (3000mA). The amount of lumens is pushing 1000 I think at max current and that's just ridiculous. I started buying the original XML and now am getting the "hot binned" XML2s. I do my own research, but also called LEDSupply and got more info. Thanks guys! -C
