3-Up Cree XP-G2 White 20mm LED Star - Optics Ready™

More images

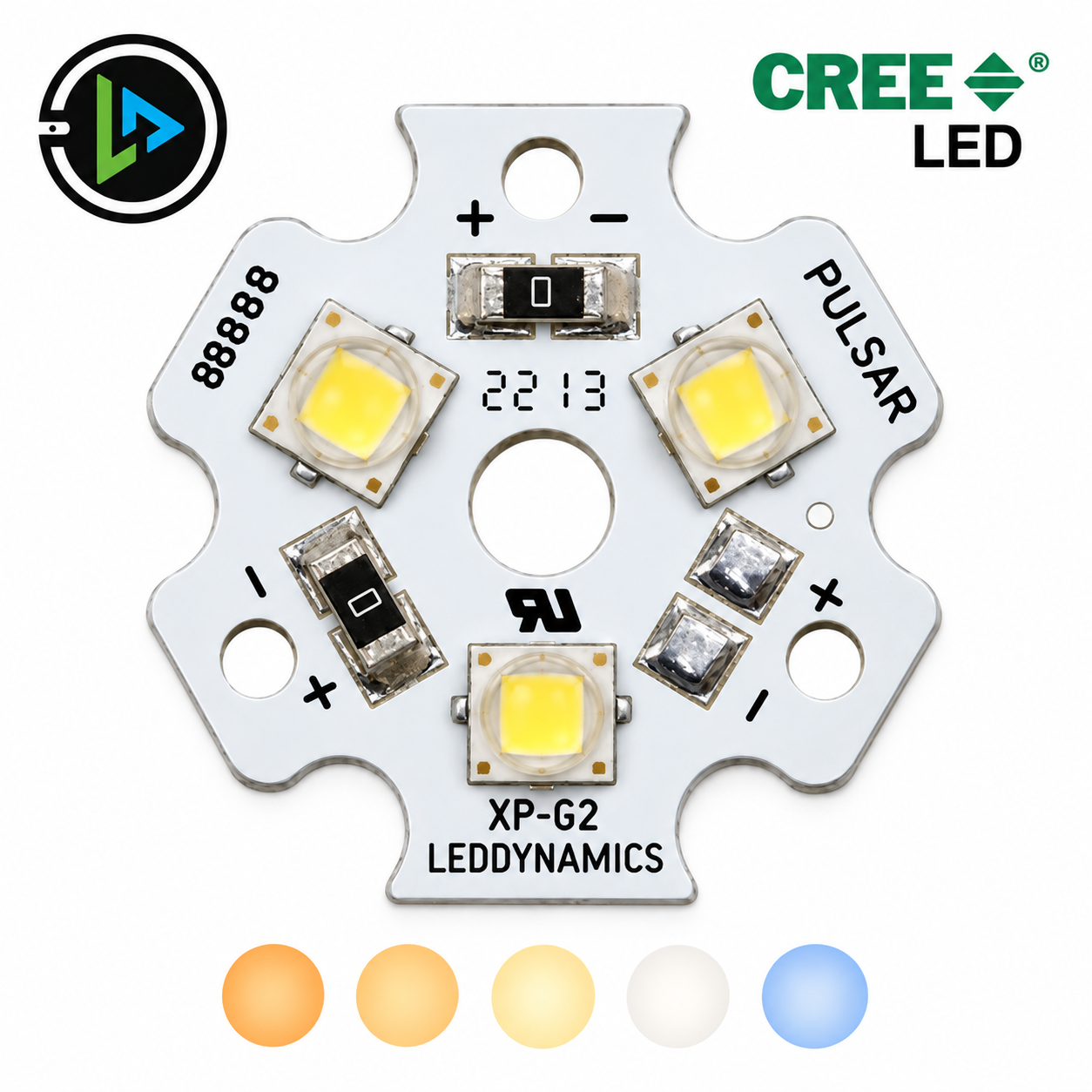

3-Up Cree XP-G2 White 20mm LED Star - Optics Ready™

Cree XPG2 - Indus Star 3-Up Cool-White High Power LED

Regular Price: $16.75

Sale Price: $14.25

You Save: $2.50

PART #: CREEXPG2-WHT-3

VOLUME DISCOUNTS

PCS

% OFF

10 - 49

2.5%

50 - 99

100 - 249

7.5%

250 - 499

10%

*Shipping Information

First Class > $49.99

FREE

First Class

$5.99

Ground

$11.99

2-Day

$15.99

Express

CALC

Purchase

258 PCS IN-STOCK

QTY

ORDER BY 3PM EST FOR
SAME DAY SHIPPING

3 × 3.45 × 3.45mm Proven XP-G2 Emitters
Up to 1,374 Delivered Lumens
High Output & Proven Optical Performance
20mm Aluminum MCPCB • Optional HexaTherm™
Optics Ready™ • Multiple Beam Angles

THIS OPTION IS TEMPORARILY UNAVAILABLE

Product Details

The PULSAR XP-G2 White LED Light Engine combines three Cree XP-G2 emitters on an LEDdynamics thermally optimized 20mm aluminum MCPCB to deliver high-output performance and excellent optical control from a compact, proven platform. Available in multiple CCT options, PULSAR XP-G2 is well suited to new and existing designs requiring substantial delivered output and broad compatibility with established secondary optics. Optional HexaTherm™ technology enhances thermal performance, while the Optics Ready™ platform supports multiple beam distributions for straightforward optical integration.

Recommended Applications: Spotlights • Downlights • Outdoor Lighting • Portable Lighting • Equipment

Features

XLamp Reliability: SC3 Silicone Carbide Technology	Colors: Cool-White, Neutral-White & Warm-White
Max Drive Current: Up to 1500mA	Wide Viewing Angle: 115°
Binned: White Binned @ 85°C	Secondary Optics: Compatible with Carclo Triple 3-UP Optics
Thermal Resistance: Low as 4°C/W	Max. Junction Temp.: 150°C
Compliant: RoHS ULE349212	XP-E2 Emiiter Size: 3.45mm X 3.45mm

Description

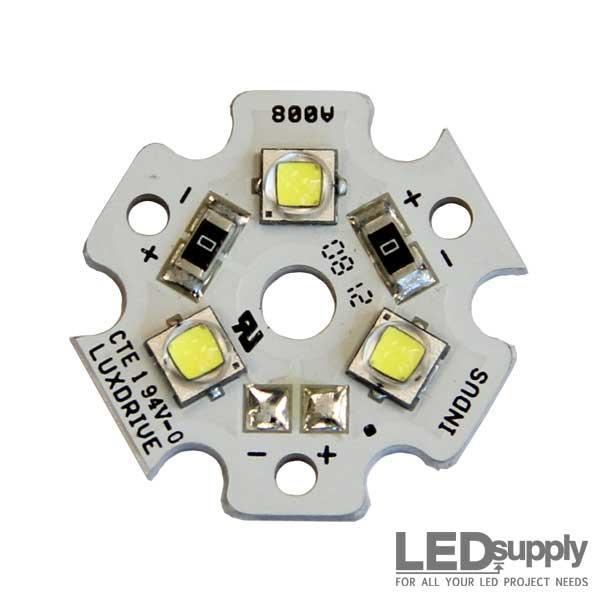

By closely aligning each XP-G2 LED the Triple (3-Up) Cree XLamp® XP-G2 LED significantly increases per unit area light output. The XP-G2 LED emitter is re-flowed to a 3-Up 20mm metal core Pulsar Star printed circuit board (MCPCB); the MCPCB includes a center hole for wiring or mounting. The 20mm MCPCB is an electrically isolated standard hexagonal shape board (LED Star) with two solder pads for easy handling and wiring and 3 mounting holds to accommodate 20mm secondary optics from Carclo.

The XP-G2 LED has an identical foot-print (3.45mm square) as the original XP-G, but by using silicone carbide SC3 technology Cree has increased lumen output by more than 20% and more than doubled the lumens per dollar over the original XP-G. The XP-G2 is available in cool-white, neutral-white, warm-white, is still optically compatible and remains inside the popular XP-E packaging.

Technical Documentation

Color

Typical CCT

Group

700mA Flux

1.0A Flux

1.5A Flux

Order Code

Part #

Cool White

6,500K

762

1014

1374

XPGBWT-L1-0000-00H51

CREEXPG2-W474

Cool White

5,000K

624

831

1128

XPGBWT-L1-0000-00EE4

CREEXPG2-W387

Neutral White

4,000K

624

831

1128

XPGBWT-L1-0000-00EE4

CREEXPG2-NW387

Warm White

3,000K

585

780

1059

XPGBWT-L1-0000-00DE7

CREEXPG2-WW363

Characteristics

Unit

Min.

Typical

Max.

Thermal Resistance, junction to solder point

°C/W

Viewing Angle (FWHM)

°Degree

115

Temperature coefficient of voltage

mV/°C

-1.8

ESD Classification (HBM per Mil-Std-883D)

Class 2

DC Forward Current

1500

Reverse Voltage

Forward Voltage (@ 350 mA, 85°C)

8.4

10.5

Forward Voltage (@ 700 mA, 85°C)

8.7

Forward Voltage (@ 1000 mA, 85°C)

9.0

Forward voltage (@ 1500 mA, , 85°C)

9.3

LED Junction Temperature

°C

150

Full Documentation

Cree XP-G2 Documentation

Accessories

General Accessories

Single Color 20-24 AWG Stranded Wire for LED Lighting

Red, black, blue, green, orange, yellow & white 20-24 gauge stranded AWG wire

PART #: xAWG-x

$0.39 Sale Price: $0.36

Wire Nuts – 24AWG to 14AWG Spring Core Insulated Connectors

Twist-on wire connectors for clean, safe, and tool-free wire splicing. Available in orange, yellow, or grey with pack sizes of 10, 50, or 100.

PART #: LO-NUTZ-x-x

$5.39 Sale Price: $4.90

Butt Splice Wire Connector: 20-22 AWG - Quick Release

Quickly connect 20-22AWG Stranded Wire end-to-end without stripping, soldering or using wire nuts.

PART #: LO-X-H2-2

$2.85 Sale Price: $2.56

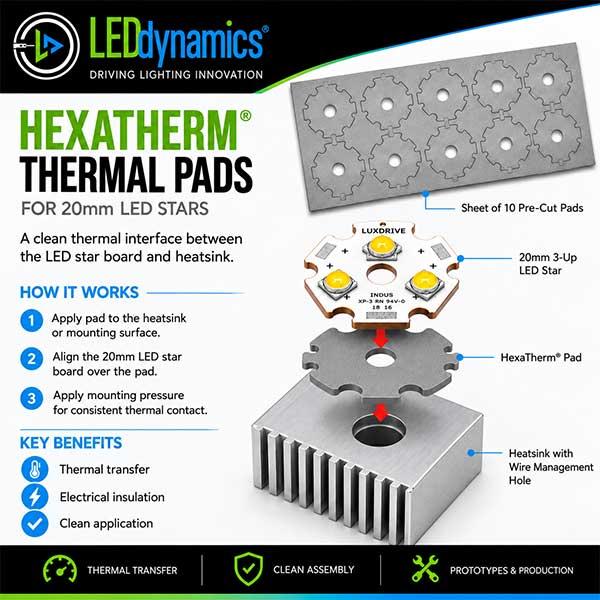

HexaTherm™ Thermal Pads for 20mm 1-Up LED Stars

Electrically isolated thermal sheet, precision cut in a hexagonal shape to fit star LEDs

PART #: 0A001-XXX

$13.11 Sale Price: $11.50

Connector: Lever In-Line Connector - 1 to 5 Conductor Models

Reusable lever-style wire connectors with 1–5 inline ports. Clamp-down design for fast, tool-free splicing. Fits 28–13AWG wire.

PART #: LO-CONIL-x

$0.58 Sale Price: $0.45

Cree XPG2 - Triple Carclo Optics

10508 Carclo Lens - 3-Up Frosted Medium Spot LED Optic

Optic: 20mm 3-Up TIR Lens - Frosted Medium Spot (25°) - Carclo 10508

The #10508 20mm diameter Carclo poly-carbonate triple (3-Up) frosted lens controls the optical properties of 3-Up LEDs into a narrow spot pattern.

PART #: 10508

$3.14 Sale Price: $2.93

10510 Carclo Lens - 3-Up Elliptical Spot LED Optic

Optic: 20mm 3-Up TIR Lens - Elliptical Spot (40° X 15°) - Carclo 10510

The #10510 20mm diameter Carclo poly-carbonate triple (3-Up) lens controls the optical properties of 3-Up LEDs into a elliptical spot pattern.

PART #: 10510

$3.14 Sale Price: $2.93

10511 Carclo Lens - 3-Up Frosted Narrow Spot LED Optic

Optic: 20mm 3-Up TIR Lens - Frosted Narrow Spot (20°) - Carclo 10511

The #10511 20mm diameter Carclo poly-carbonate triple (3-Up) frosted lens controls the optical properties of 3-Up LEDs into a narrow spot pattern.

PART #: 10511

$3.14 Sale Price: $2.93

10509 Carclo Lens - 3-Up Frosted Wide Spot LED Optic

Optic: 20mm 3-Up TIR Lens - Frosted Wide Spot (35°) - Carclo 10509

The #10509 20mm diameter Carclo poly-carbonate triple (3-Up) frosted lens controls the optical properties of 3-Up LEDs into a wide spot pattern.

PART #: 10509

$3.14 Sale Price: $2.93

Product is out of stock

10507 Carclo Lens - 3-Up Narrow Spot LED Optic

Optic: 20mm 3-Up TIR Lens - Narrow Spot (15°) - Carclo 10507

The #10507 20mm diameter Carclo poly-carbonate triple (3-Up) lens controls the optical properties of 3-Up LEDs into a narrow spot pattern.

PART #: 10507

$3.14 Sale Price: $2.93

3-Up Cree - Heatsinks & Housings

Dynamic LED Star Housing for 1-Up 20mm LED Stars & Optics

Two piece LED heat sink housing for 1-Up LED and optic that assembles and disassembles by screwing together.

PART #: DLH-1UP-EH

$16.64 Sale Price: $13.37

Heatsink - Finned with Adhesive Tape

Black anodized aluminum, thermal adhesive, 35mm X 35mm X 18mm

PART #: HS13137

$6.94 Sale Price: $6.25

Dynamic LED Star Housing for LED Light Engine

Sleek aluminum LED heat sink housing that quickly screws together safely holding a high-power LED, optic and driver. Available in 5 and 10 Watt options!

PART #: DLH-xW-XUPHS

$24.19 Sale Price: $21.77

FAQ

LED Lumen Comparison Chart:

Here is a Lumen comparison chart that provides Lumens (brightness) at specific drive currents; also included is the Forward Voltage at that specific current - High Power LEDs often have a wide range of accepted drive currents and the standard documentation usually doesn't list all the different Lumen outputs, so we have done the calculations for you:

Single Die Cool-White LEDs:	FLUX BIN	350mA	700mA	1000mA	1400mA	2100mA
Luxeon Rebel	N	105 (3V)	189 (3.2V)	236 (3.5V)	NA	NA
Cree XP-G	R5	139 (3V)	250 (3.2V)	347 (3.3V)	437 (3.5V)	NA
Cree XP-G	R2	118 (3V)	205 (3.2V)	285 (3.3V)	359 (3.5V)	NA
Cree XP-E	Q4	105 (3.2V)	160 (3.4V)	220 (3.5V)	NA	NA
Cree XP-E	R4	130 (3.2V)	221 (3.4V)	292 (3.5V)	NA	NA
Cree XM-L	T6		280 (2.9V)	364 (3V)	504 (3.1V)	700 (3.2V)
Cree XM-L2	T6		318 (2.85V)	445 (2.95V)	572(3.05V)	795 (3.2V)
Cree XR-E	Q5	107 (3.3V)	160 (3.5V)	235 (3.7V)	NA	NA
Cree XP-G2	R5	158 (2.8V)	254 (2.9V)	338 (3V)	458 (3.1V)	NA
Cree XT-E	R5	130 (2.85V)	231(3V)	312 (3.2V)	377(3.3V)	NA
Single Die Neutral-White LEDs:	FLUX BIN	350mA	700mA	1000mA
Luxeon Rebel	N	105 (3V)	189 (3.2V)	236 (3.3V)
Cree XP-G	R2	114 (3V)	205 (3.2V)	285 (3.3V)	359 (3.5V)
Cree XM-L	T5		260 (2.9V)	338 (3V)	468 (3.1V)	650 (3.2V)
Cree XM-L2	T5		296(2.85V)	384(2.9V)	532 (2.95V)	740 (3.05V)
Cree XR-E	N4	62 (3.3V)	93 (3.5V)	136 (3.7V)
Single Die Warm-White LEDs:	FLUX BIN	350mA	700mA	1000mA
Luxeon Rebel	K	77 (3V)	130 (3.2V)	173 (3.3V)
Cree XP-G	Q4	105 (3V)	180 (3.2V)	250 (3.3V)	330 (3.5V)
CREEXPG2	Q5	121 (2.8V)	218 (2.9V)	302 (3V)	350 (3.1V)
Cree XR-E	P3	74 (3.3V)	111 (3.5V)	162 (3.3V)
Cree XT-E	Q4	100 (2.85V)	178 (3V)	240 (3.2V)	290 (3.3V)
XM-L	T3		220 (2.9V)	286 (3V)	396 (3.1V)	550 (3.2V)
3-Up Cool-White LEDs:	FLUX BIN	350mA	700mA	1000mA
Luxeon Rebel “Endor Star”	N	315 (9V)	567 (9.6V)	708 (9.9V)
Cree XP-G “Indus Star”	R5	417 (9V)	750 (9.6V)	1042 (9.9V)	1313 (10.5V)
Cree XP-G “Indus Star”	R2	354 (9V)	615 (9.6V)	855 (9.9V)	1115 (10.5V)
Cree XP-E “Indus Star”	Q4	300 (9.3V)	480 (9.9V)	660 (10.5V)
CREEXPG2	H51	474 (8.4V)	853 (8.7V)	1185 (9V)	1516 (9.3V)
Cree XT-E	R5	390 (8.55V)	693 (9V)	936 (9.6V)	1131(9.9V)
3-Up Neutral-White LEDs:	FLUX BIN	350mA	700mA	1000mA
Luxeon Rebel “Endor Star”	N	315 (9V)	567 (9.6V)	708 (9.9V)
Cree XP-G “Indus Star”	R2	354 (9V)	615 (9.6V)	855 (9.9V)	1115 (10.5V)
3-Up Warm-White LEDs:	FLUX BIN	350mA	700mA	1000mA
Luxeon Rebel “Endor Star”	K	231 (9V)	390 (9.6V)	519 (9.9V)
Cree XP-G “Indus Star”	Q4	315 (9V)	540 (9.6V)	750 (9.9V)	992 (10.5V)
Cree XP-G2	Q5	363 (8.4V)	654 (8.7V)	906 (9V)	1179 (9.3V)
Cree XT-E	Q4	300 (8.55V)	534 (9V)	720 (9.6V)	870 (9.9V)
4-Up LEDs Cool-White		350mA	700mA	1000mA	1400mA
B040-GW765-R5 (Cree XP-G)	R5	556 (12V)	1000 (12.8V)	1388 (13.2V)	1748 (14V)
Multi-Die LEDs (Cool, Neutral & Warm-White)		350mA	700mA	1000mA
Cree MC-E CW		430 (12.8V)	730 (13.6V)	N/A
Cree MC-E NW		370 (12.8V)	629 (13.6V)	N/A
Cree MC-E WW		320 (12.8V)	544 (13.6V)	N/A
