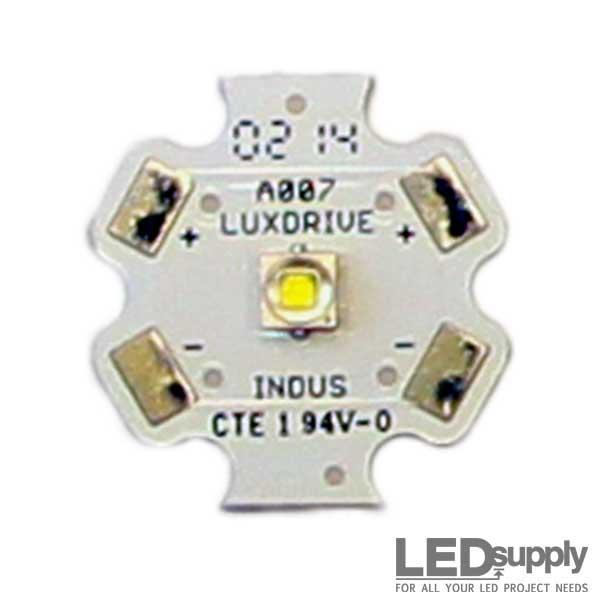

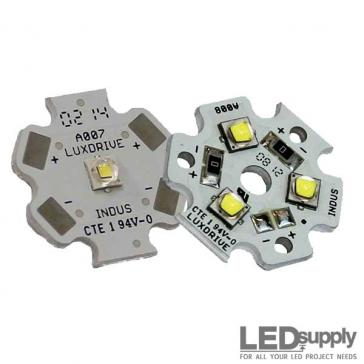

INDUS™ 1-Up Cree XP-E2 White 20mm LED Star - Optics Ready™

Match color temperature and color rendering.

Choose the white appearance and Color Rendering Index (CRI) for your project. Each option is fixed white; dimming does not change its selected CCT.

Lumens by color temperature & drive current.

*25°C values are provided for comparison; compare outputs at the same current and junction temperature. Calculated values are estimates, not individual LED measurements. Delivered fixture output depends on operating temperature and optical losses. Higher drive current requires adequate heatsinking.

Thermal interface, wiring & optics.

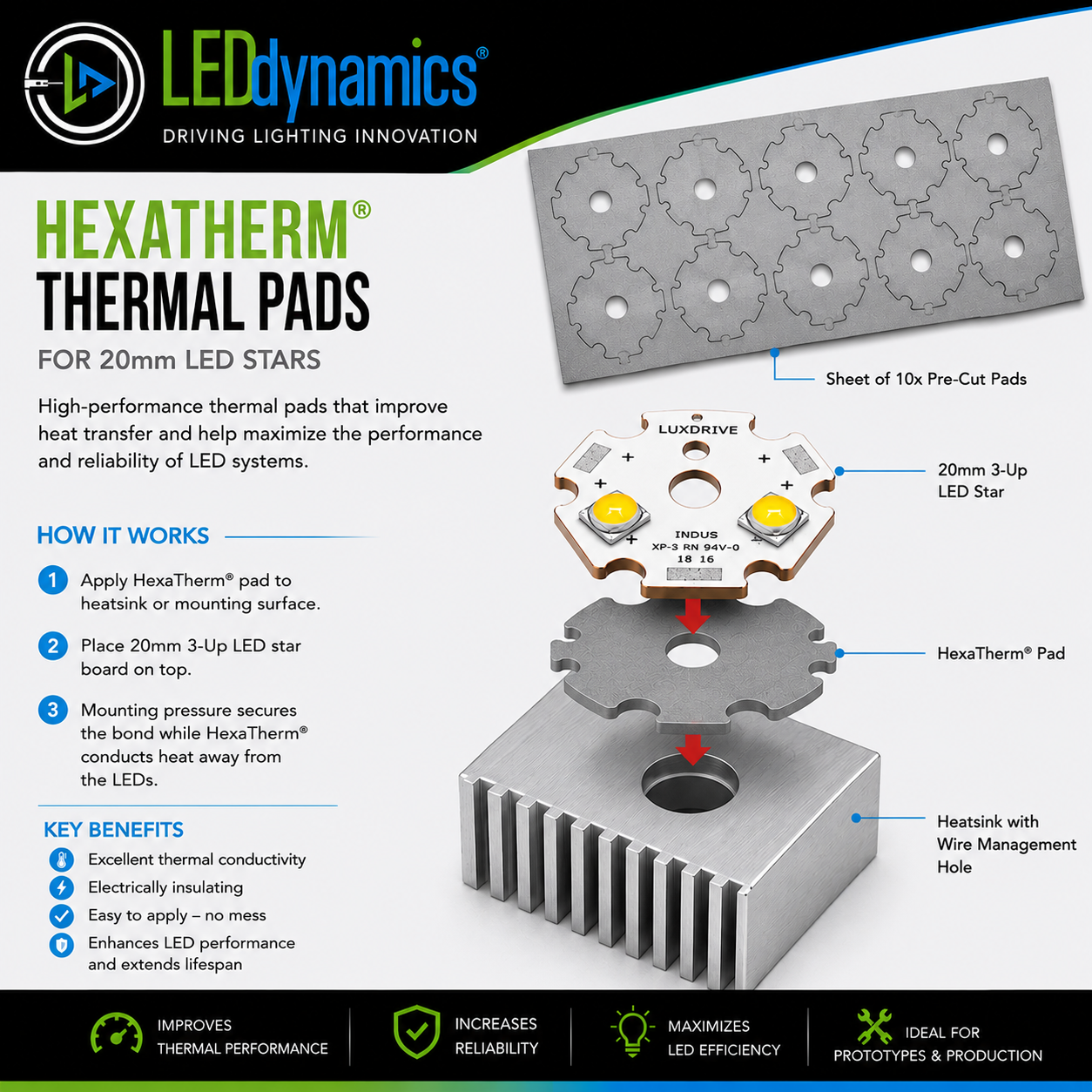

Optional HexaTherm™ pad

A pre-cut thermal interface between the 20mm star and your heatsink. Choose the pad option or use your own suitable interface.

The pad transfers heat; it does not replace a heatsink. Heatsink shown for illustration.

Optional 6-inch leads

• No leads: solder your own connections.
• Same side: route both leads toward one connection point.
• Opposite sides: route leads in different directions.

Observe +/− polarity and provide strain relief.

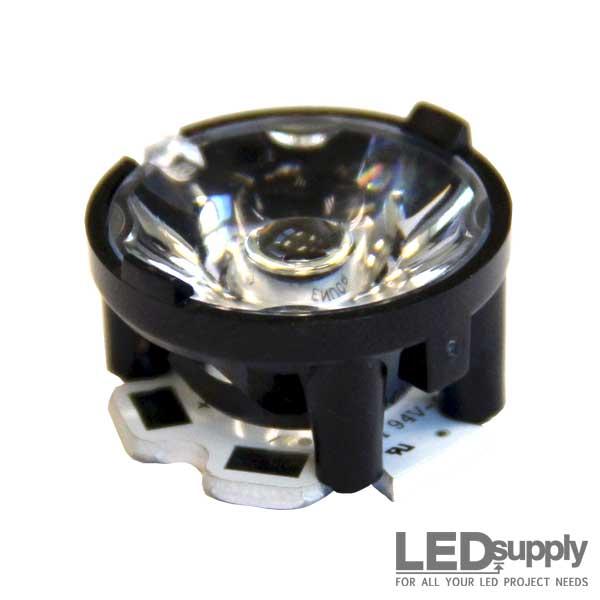

Choose your beam

A matched lens and holder shape the LED’s native 110° output for spot, task or display lighting. Check XP-E2 compatibility, beam pattern and wire clearance.

Browse lenses and holders (selected separately).

Electrical and mechanical details.

Plan the driver, cooling and optics together.

• Driver: select the intended constant current and check that the driver’s output voltage range supports your LED load. The forward-voltage value is not a direct power-supply rating.
• Cooling: mount the star to a suitable heatsink through an appropriate thermal interface before operation.
• Optics and housing: allow clearance for the lens, holder, solder joints and wire leads. Evaluate the beam in the intended fixture.
• Dimming: select a driver with a dimming input compatible with your control method.

Driver, heatsink, lens and holder are selected separately. The pad and wire leads are optional configurations chosen when ordering.
