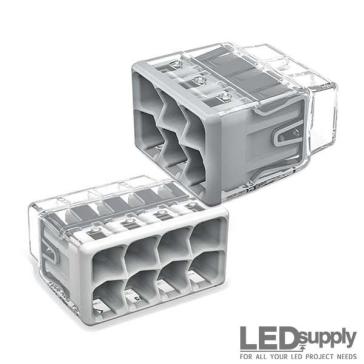

WAGO 2773 Series PUSH WIRE® Splicing Connectors - 6 & 8-Wire
More images
Regular Price: $0.32
Sale Price: $0.29
You Save: $0.03
PART #: 2773-x
VOLUME DISCOUNTS
PCS
% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class > $39.99
FREE
First Class
$3.99
Ground
$11.99
2-Day
$13.99
Express
CALC
Purchase
ORDER BY 3PM EST FOR
SAME DAY SHIPPING
SAME DAY SHIPPING
- Tool-free push-in wiring
- Compact multi-wire splicing
- Clear housing visibility
Share:
Product Details
| Connection Type: PUSH WIRE® push-in termination | Tool-Free: Insert stripped conductors only |
| Available Versions: 6-Wire & 8-Wire | Strip Length: 13 mm (0.51") |
| Wire Range: 0.75–4.0 mm² solid / 18–12 AWG 1.5–4.0 mm² stranded |
Wiring Direction: Side-entry |
| Voltage Rating: 450V EN / 600V UL | Current Rating: 32A (EN) / 20A (UL) |
| Contact Material: Tin-plated copper (electrolytic) | Spring Material: Chrome-nickel steel |
| Housing: Transparent polycarbonate | Cover Color: Gray or light gray (model-dependent) |
| Temperature Rating: T85 (85°C ambient) | Mounting: Surface or flush-mount junction boxes |
Description

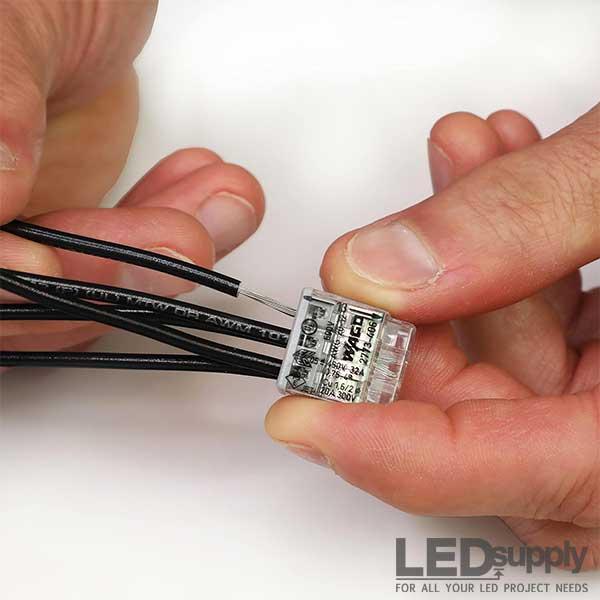

The WAGO 2773 Series PUSH WIRE® Splicing Connectors provide a fast, tool-free solution for joining multiple solid or stranded copper conductors in junction boxes and lighting installations. Featuring WAGO’s trusted push-in termination technology, these connectors secure each conductor using spring pressure for maintenance-free, gas-tight, and vibration-resistant performance.
Available in 6-wire (2773-406) and 8-wire (2773-408) versions, each connector supports 0.75–4.0 mm² (18–12 AWG) solid and 1.5–4.0 mm² stranded conductors with a required strip length of 13 mm. Their transparent housing ensures quick visual confirmation of full conductor seating, while the tin-plated copper contact surface and chrome-nickel spring steel provide reliable long-term connections even under high loads.
Rated at 450 V (EN), 600 V (UL), and 32 A, these connectors are ideal for residential and commercial wiring, fixture installations, and flush-mounted junction boxes.
Technical Documentation
P/N
Wires
Type
Wire Range (mm² / AWG)
Voltage / Current
Dimensions (W × H × L mm)
Weight (g)
Documentation
2773-406
6
PUSH WIRE® Splicing Connector
0.75–4.0 mm² / 18–12 AWG
1.5–4.0 mm² stranded
1.5–4.0 mm² stranded
450V / 32A (EN)
600V / 20A (UL)
600V / 20A (UL)

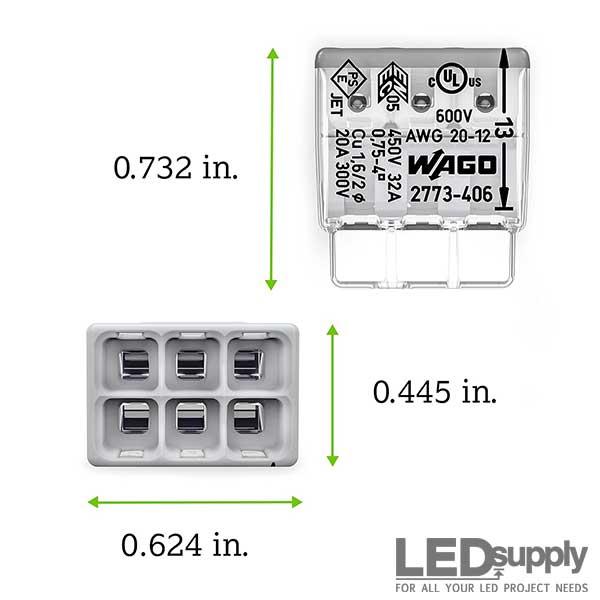

16.4 × 11.3 × 18.6
2.6 g
2773-408
8
PUSH WIRE® Splicing Connector
0.75–4.0 mm² / 18–12 AWG
1.5–4.0 mm² stranded
1.5–4.0 mm² stranded
450V / 32A (EN)
600V / 20A (UL)
600V / 20A (UL)
21.2 × 11.3 × 18.6
3.4 g
Certifications & Compliance
Category
Specification
UL Approvals
UL 486C, UL 467
EN / IEC Standards
IEC/EN 60998, EN 60669
Rated Performance
450V EN / 600V UL, 32A, 4 kV surge
Environmental
RoHS Compliant
Materials
Tin-plated copper, chrome-nickel spring steel, PC housing
Full Documentation
2773-406
×
