WAGO 2070-541/998-406 Through-Board SMD PCB Terminal Block

Description

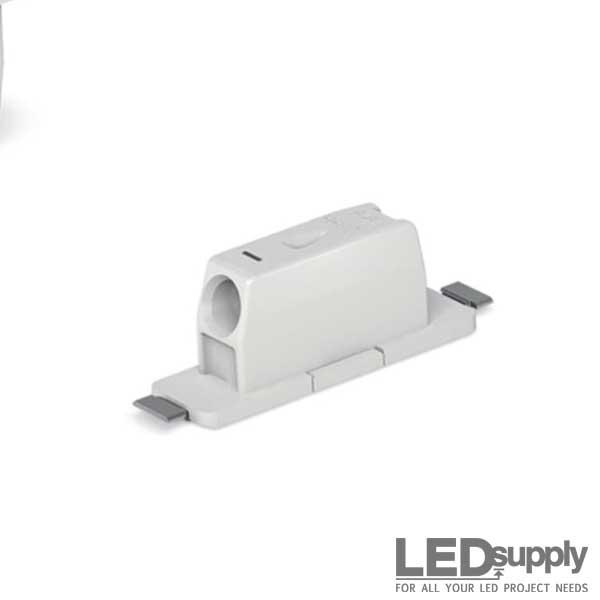

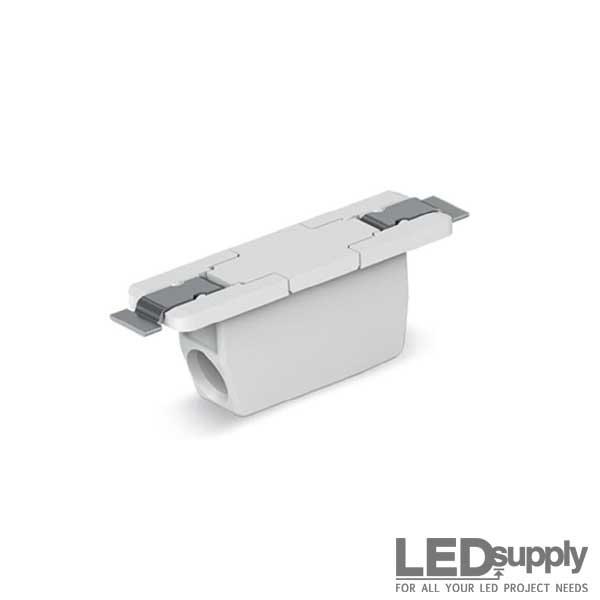

The WAGO 2070-541/998-406 is a compact through-board surface-mount (THR) PCB terminal block designed for reliable wire-to-board connections in LED modules and low-voltage electronics. Combining SMT processing with plated through-board solder anchors, it delivers enhanced mechanical stability while maintaining a minimal footprint.

This makes it especially well-suited for LED lighting assemblies, compact drivers, and production-scale PCB manufacturing.

Key Features

Through-Board SMD (THR) Design

Unlike standard SMD-only connectors, this version integrates solder pins that extend through the PCB. This increases mechanical strength and improves retention during vibration or wire strain — ideal for lighting fixtures and installed electronics.

PUSH WIRE® Spring Pressure Connection

Designed for solid conductors, WAGO’s PUSH WIRE® technology allows quick push-in termination with no screws or special tools. The result is a vibration-resistant, gas-tight connection that maintains long-term electrical integrity.

Optimized for Automated Assembly

The 2070 series is built for reflow soldering and automated production environments. Its compact housing allows high-density PCB layouts without sacrificing reliability.

Technical Documentation

Full Documentation

2070-541998-406 Documentation
