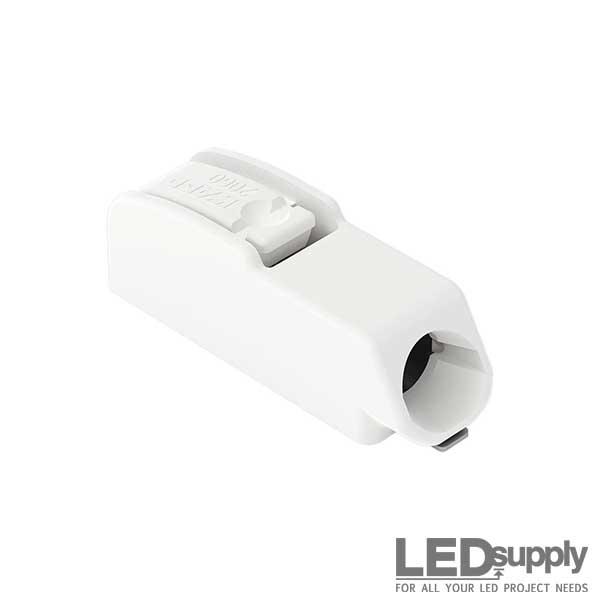

WAGO 2060-451/998-404 SMD PCB Terminal Block - 1 Pole

Description

The WAGO 2060-451/998-404 is a compact 1-pole surface-mount PCB terminal block featuring WAGO’s trusted push-button CAGE CLAMP® spring pressure connection. Designed for secure wire-to-board termination in LED modules, drivers, and compact electronics, it delivers reliable electrical performance in a minimal PCB footprint.

Supplied in tape-and-reel packaging for automated SMT assembly, this terminal block is ideal for production-scale LED board manufacturing.

Key Features

Push-Button CAGE CLAMP® Technology

Allows termination of solid, stranded, and fine-stranded conductors with ferrules. The integrated push button enables easy conductor insertion and release while maintaining a gas-tight, vibration-resistant connection.

Compact Surface-Mount Design

Optimized for automated reflow soldering, the 2060 series supports high-density PCB layouts without sacrificing current capacity or mechanical stability.

Production-Ready Packaging

Available in tape-and-reel format, making it suitable for pick-and-place assembly in high-volume manufacturing environments.

High Electrical Performance

Rated up to 320V and 17.5A (depending on conductor size and application conditions), making it suitable for higher-power LED boards and compact power distribution designs.

Technical Documentation

Full Documentation

2060-451/998-404 Documentation
