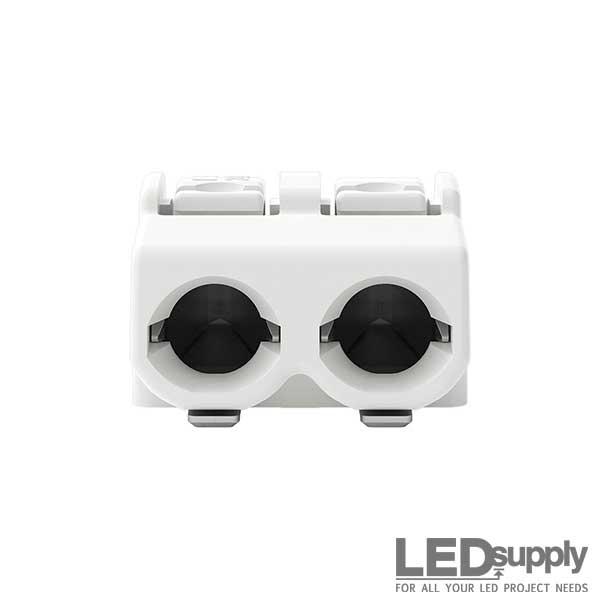

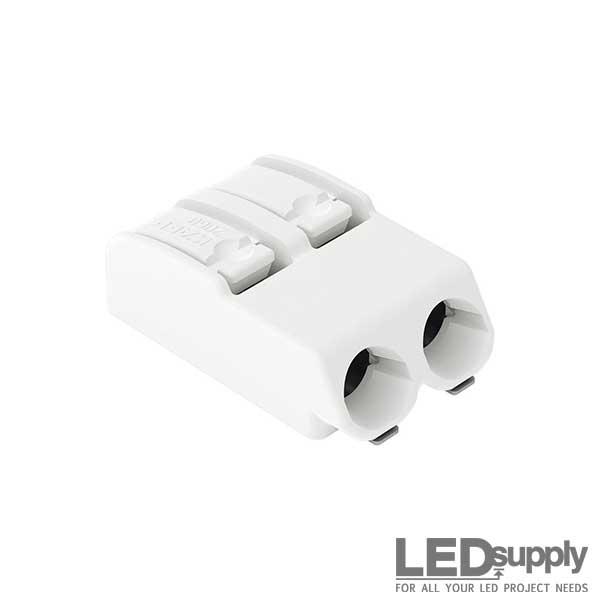

WAGO 2060-452/998-404 SMD PCB Terminal Block - 2 Pole

Description

The WAGO 2060-452/998-404 is a compact 2-pole surface-mount PCB terminal block featuring WAGO’s proven CAGE CLAMP® spring pressure connection with integrated push-button actuation. Designed for wire-to-board termination in LED modules, drivers, and industrial electronics, it provides reliable, vibration-resistant connections in a minimal footprint.

Unlike PUSH WIRE® versions designed primarily for solid conductors, this CAGE CLAMP® design accepts solid, stranded, and fine-stranded conductors - offering greater flexibility for production and field wiring.

Key Features

Push-Button CAGE CLAMP® Technology

The integrated push-button allows easy termination of solid, stranded, and fine-stranded conductors. This ensures secure, gas-tight clamping without screws and eliminates maintenance re-tightening.

Compact SMD Footprint

Optimized for automated reflow soldering, the 2060 Series allows high-density PCB layouts while maintaining robust electrical performance.

Higher Current Capacity

With ratings up to 17.5A (depending on conductor size and application conditions), this connector is well suited for higher-power LED boards and compact power distribution applications.

Vibration-Resistant Design

Spring pressure technology maintains consistent contact force under thermal cycling and vibration - ideal for architectural lighting, commercial fixtures, and industrial environments.

Technical Documentation

Full Documentation

2060-452/998-404 Documentation
