WAGO 873 Series Luminaire Disconnect Connectors - 2 & 3-Pole
More images
Regular Price: $1.49
Sale Price: $1.35
You Save: $0.14
PART #: 873-x
VOLUME DISCOUNTS
PCS
% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class > $39.99
FREE
First Class
$3.99
Ground
$11.99
2-Day
$13.99
Express
CALC
Purchase
ORDER BY 3PM EST FOR
SAME DAY SHIPPING
SAME DAY SHIPPING
- Tool-free PUSH WIRE®
- Safe ballast disconnect
- Fast, secure connections
Share:
Product Details
| Connection Type: PUSH WIRE® Plug & Socket | Tool-Free: Push-in termination, no screws |
| Poles: 2-Pole or 3-Pole options | Strip Length: 11–13 mm (0.43–0.51") |
| Wire Range: 0.75–4.0 mm² solid / 18–12 AWG | Voltage Rating: 400V EN Rated |
| Current Rating: 6 A EN / UL | Surge Rating: 4 kV impulse withstand |
| Safety: Touch-proof housing, ballast-safe disconnect | Design: Compact yellow polyamide body |
| Certifications: UL 2459, EN 60998, EN 61984 | Usage: Fluorescent & LED fixture service |
Description

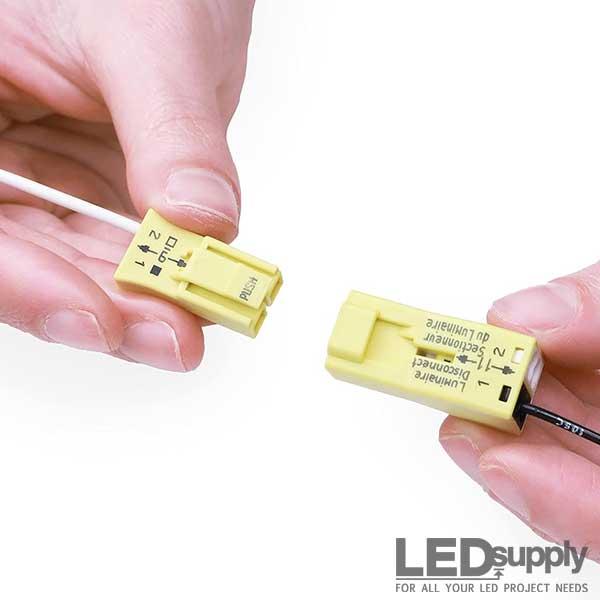

The WAGO 873 Series Luminaire Disconnect Connectors provide a safe, tool-free way to disconnect fixtures from power during ballast or driver replacement. These compact connectors use PUSH WIRE® spring pressure technology for fast and secure terminations of solid and stranded copper conductors. With touch-proof housings, UL 2459 and CSA 22.2 approvals, and a simple plug-and-socket mating system, these connectors allow electricians to service fixtures quickly while meeting modern safety codes.

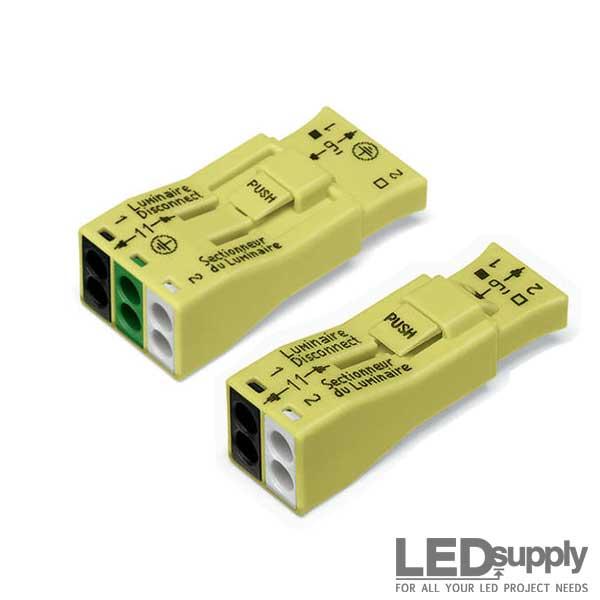

Available in 2-pole (873-902) and 3-pole (873-953) versions, each connector supports 0.75–4.0 mm² (18–12 AWG) solid conductors, strip-length guidance of 11–13 mm, and a compact design suited for commercial and residential luminaires. These connectors streamline ballast/driver replacement while minimizing the risk of electric shock and ensuring consistent, maintenance-free connections.
Technical Documentation
P/N
Poles
Type
Wire Range (mm² / AWG)
Voltage / Current

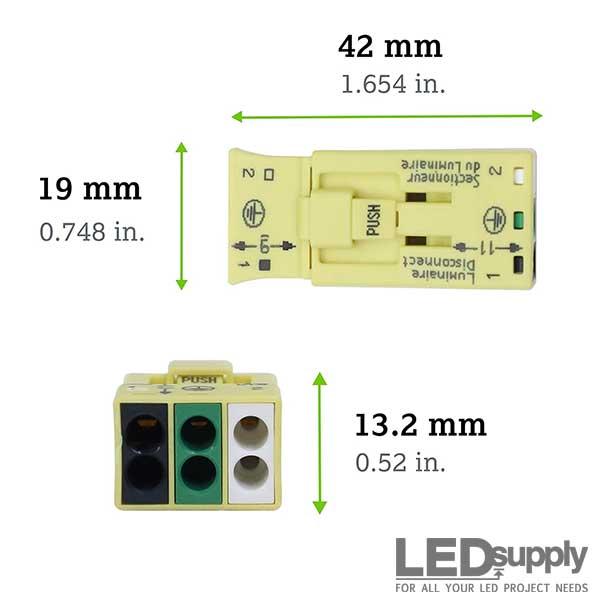

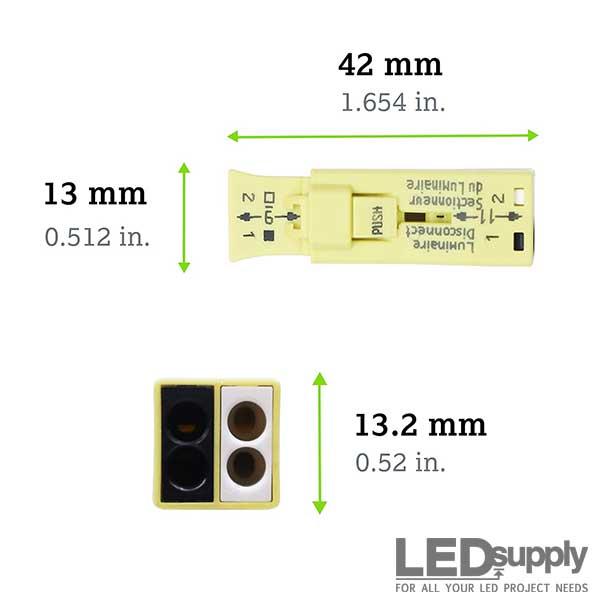

Dimensions (W × H × L mm)
Weight (g)
Documentation
873-902
2
PUSH WIRE® Plug + Socket
0.75–4.0 mm² / 18–12 AWG
400V / 6A
13 × 13.2 × 42
4.8 g
873-953
3
PUSH WIRE® Plug + Socket
0.75–4.0 mm² / 18–12 AWG
400V / 6A
19 × 13.2 × 42
6.9 g
Certifications & Compliance
Category
Specification
UL Certification
UL 2459 Ballast Disconnect Connector
CSA Approval
CSA C22.2 No. 182.3
EN Standards
EN 60998, EN 61984
Rated Performance
400V, 6A, 4 kV Impulse
Environmental
RoHS Compliant
Housing Material
Yellow polyamide (PA), touch-safe
Full Documentation
873-902
×
