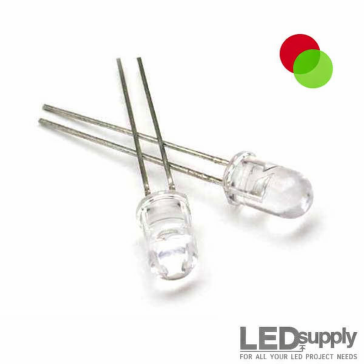

5mm LED - Red/Green Dual Color 60° Viewing Angle

Description

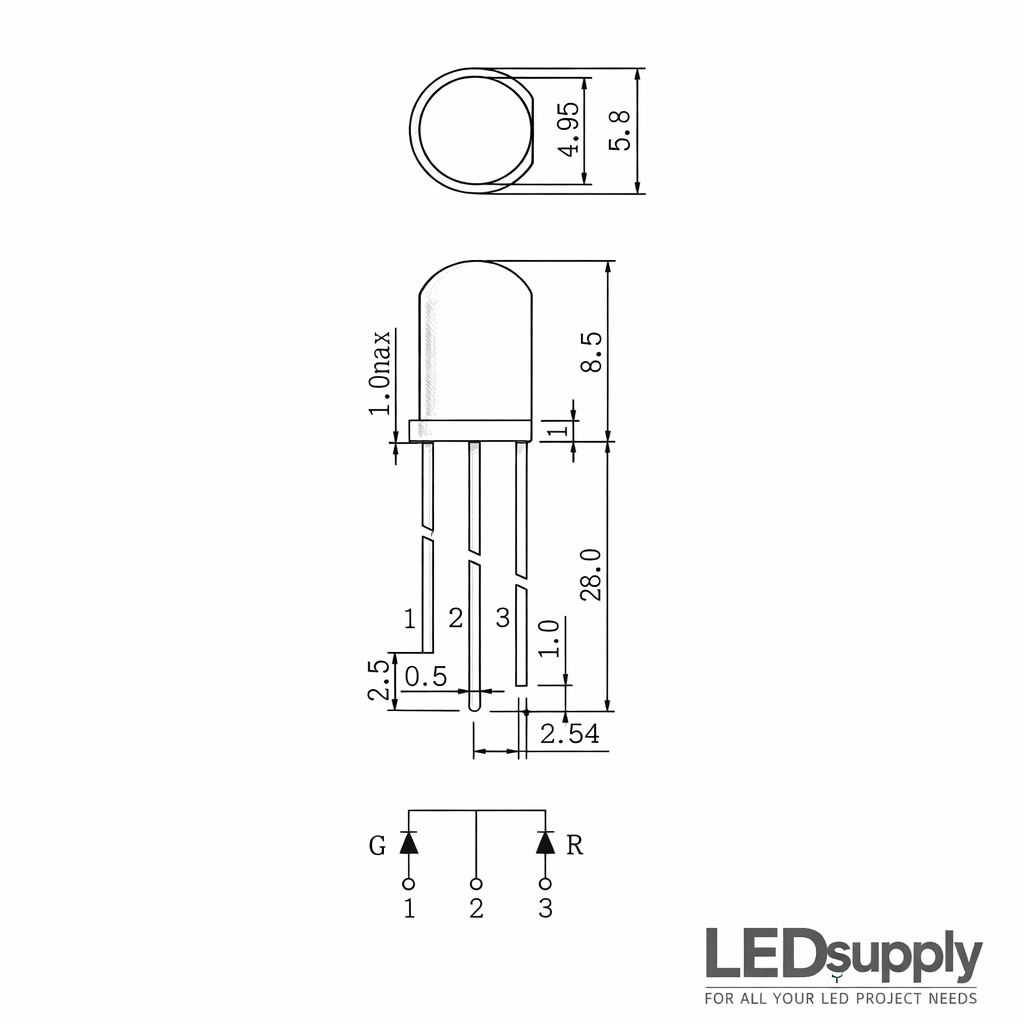

This 5mm Red & Green Through-Hole LED combines two distinct indicator colors in a single clear-lens package. Designed with a common cathode configuration, it allows designers to independently control each LED color while sharing a common ground connection. This configuration simplifies wiring for microcontrollers, logic circuits, and embedded electronics.

High Visibility Output

The LED delivers strong visual performance with brightness levels reaching 800–1500 mcd for red and 5000–7000 mcd for green at standard operating current. A 60° viewing angle ensures consistent visibility from multiple angles, making it ideal for control panels, equipment indicators, and status displays.

Reliable Electrical Performance

Engineered for stable operation, the LED supports up to 30mA continuous forward current and 100mA pulse current, with forward voltages of 1.8–2.2V (red) and 2.8–3.4V (green). The device also includes robust ESD protection and is designed for wave soldering assembly, making it compatible with automated manufacturing processes.

Ideal for Indicator Applications

Dual-color LEDs are commonly used where simple visual status feedback is required. By switching between red and green outputs, designers can easily communicate system states such as power, fault, standby, or active operation.

Common applications include:

• Control panel indicators
• Electronics prototyping
• Industrial equipment status lights
• Consumer electronics
• Embedded system feedback indicators

Ideal for Indicator Applications

This LED uses a standard through-hole package with anti-static packaging, ensuring safe handling and compatibility with wave soldering or manual assembly. Its robust temperature tolerance from -40°C to 85°C allows it to perform reliably across a wide range of environments.
