EZClick™ 3-Pin (ICRGB) 10mm IP65 LED Strip Connectors

More images

EZClick™ 3-Pin (ICRGB) 10mm IP65 LED Strip Connectors

Regular Price: $3.84

Sale Price: $3.49

You Save: $0.35

PART #: EZ-ICRGB-XXX

HIGHLIGHTS

Solderless Easy Push-Down connections
Fits over the compatible strip's silicone coating - no coating removal required
Three options: strip-to-strip, 6-inch wire leads or a 6-inch jumper
Recommended project wire: 20-22 AWG
Heatshrink recommended where moisture may be present

CONFIGURE & BUY

Purchase

PN: EZ-ICRGB-XXX

THIS OPTION IS TEMPORARILY UNAVAILABLE

QTY

0 PCS IN-STOCK

Ordering for a larger project?
Ask about volume pricing

VOLUME DISCOUNTS
QTY	10 - 49	50 - 99	100 - 249	250 - 499
% OFF	2.5%	5%	7.5%	10%

Order by 3pm ET for
same-day shipping.

Free shipping available, click here for details.

Product Details

Solderless ICRGB connections

Connect silicone-coated strip without soldering

These connectors fit over the silicone coating on LEDSupply’s 10mm Addressable RGB LED Strip, so the coating does not need to be stripped away at the connection. Choose a direct strip-to-strip clip, 6-inch wire leads, or a 6-inch jumper to suit your layout. All three options are solderless.

Choose your connection

Strip-to-Strip

EZ-ICRGB-STS

A clip with a strip connection on each side. Join two compatible strip sections directly, without a wire bridge.

Best for: straight strip-to-strip joints.

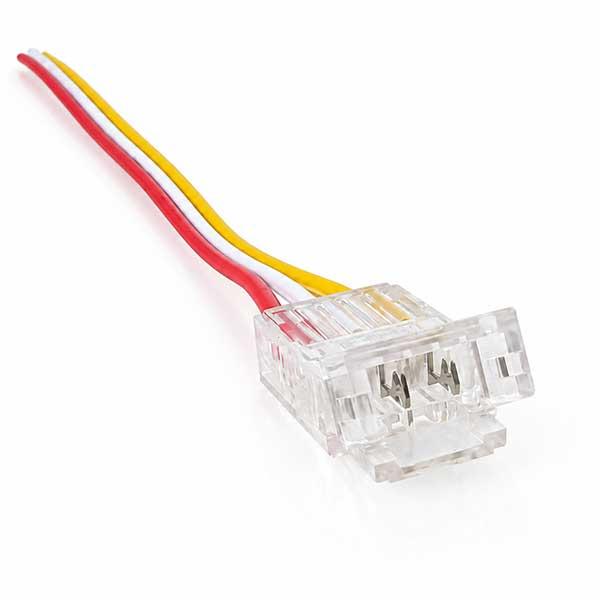

Strip-to-Wire

EZ-ICRGB-STW

A connector with 6-inch wire leads for connecting a compatible strip section to your project wiring.

Best for: a wired connection to a strip section.

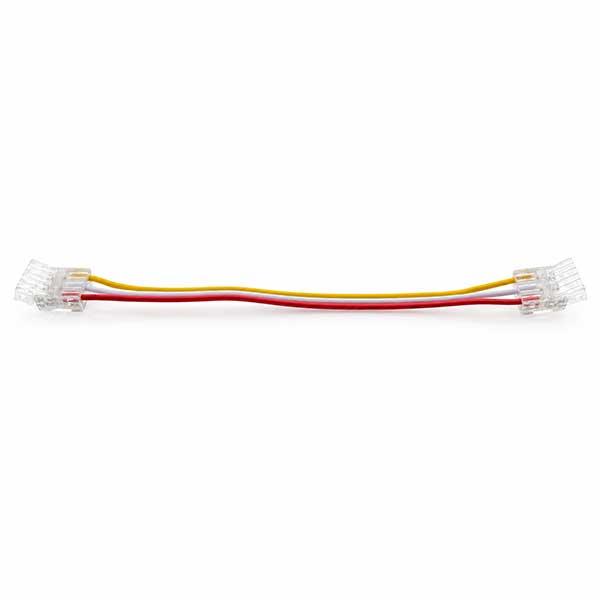

6-Inch Jumper

EZ-ICRGB-JMP

A 6-inch wire jumper with a clip at each end. Join two compatible strip sections across a gap or route the wires around a corner.

Best for: gaps and corner transitions.

Connection details

A closer look at the connectors

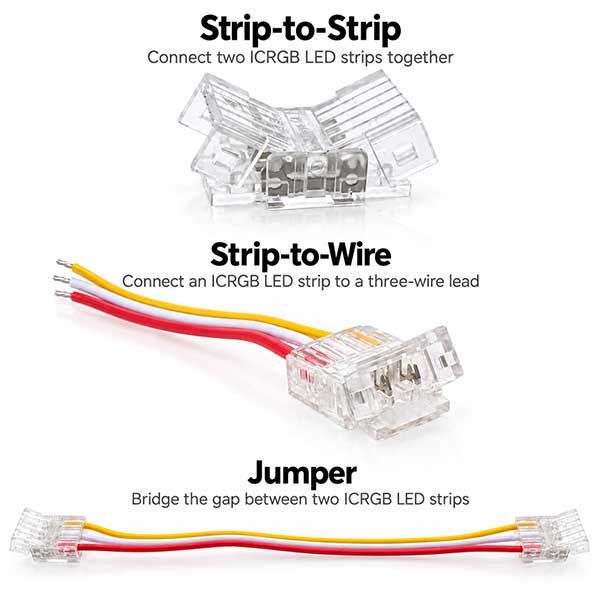

Comparison of strip-to-strip, strip-to-wire, and six-inch jumper connectors for ICRGB LED strips — **Three ways to connect your strip**Use the direct clip for a joint, wire leads for project wiring, or the jumper to bridge a gap.

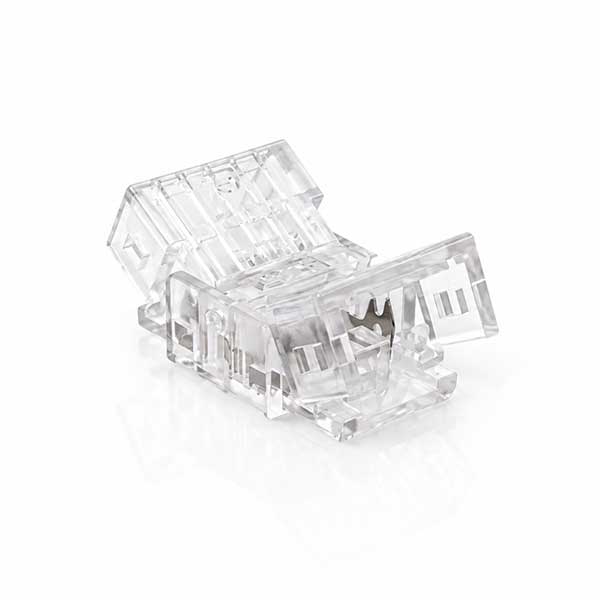

Angled close-up of the open strip-to-strip connector showing its clear housing and metal contacts — **EZ Click contact design**The connector accepts the compatible strip with its silicone coating in place. No soldering or coating removal is required.

Product specifications

Compatible strip	LEDSupply Addressable RGB LED Strip
Strip PCB width	10mm
Coating compatibility	Fits over the compatible strip’s silicone coating; no coating removal required
Connection method	EZ Click; all three options are solderless
Connection options	Strip-to-strip, strip-to-wire, or jumper
Wire length	Strip-to-wire: 6-inch leads Jumper: 6-inch wires between clips Strip-to-strip: clip only
Recommended project wire	20–22 AWG
Moisture protection	Heatshrink over the connector is recommended where moisture may be present

Make the connection

Disconnect power and prepare the strip. Cut only at the strip’s designated cut marks. Leave the silicone coating in place.
Plan any heatshrink before assembly. Position appropriately sized tubing so it can be slid over the completed connector.
Align the strip contacts. Open the connector, insert the strip, and match the strip’s power and data markings. For connections between strip sections, follow the strip’s data-direction arrows.
Close the Easy Push-Down clip. Seat the strip correctly and press the clip closed. Check that the connection is secure without pulling on the contact area.
Test, then protect the connection. Verify operation before covering the joint. Disconnect power again before applying heatshrink.

Protect connections where moisture may be present

We recommend heatshrink over the connector to help protect the connection and strip from moisture. The strip’s waterproof rating does not automatically apply to the connector or the completed joint; heatshrink alone does not establish a waterproof rating.

Before ordering, match the connector to the linked 10mm strip and allow space for the housing and heatshrink in your mounting channel. A 10mm width alone does not confirm compatibility with other strips.

Need help with your strip layout? Email sales@ledsupply.com or call (802) 728-6031 with your strip model and connection requirements.
