INDUS™ 1-Up LUXEON C Red/IR 20mm LED Star - Optics Ready™

Description

The Luxeon C Color Line of LEDs are designed for flawless color mixing. The focal length of each LED is identical which maximizes optical efficiency in design. This makes the LED perfect for delivering accurate colors for a wide variety of applications. With an all new low dome design, it keeps the light source small while still improving upon light output. The Luxeon C Color line is fantastic for architectural lighting, entertainment lighting, emergency vehicle lighting as well as color tunable lights.

LED Star MCPCB

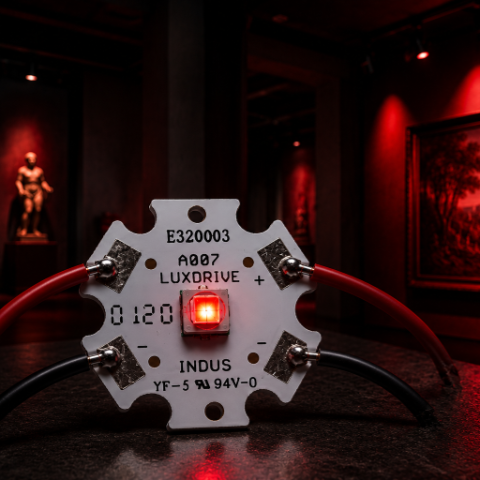

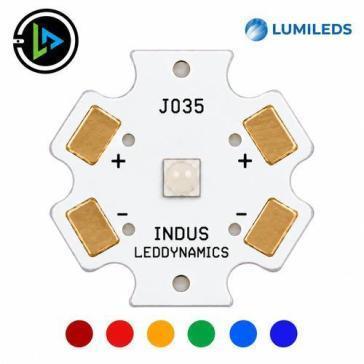

LuxDrive created a new Saiph Star metal core printed circuit board to account for the smaller 2x2mm package. The Saiph Star MCPCB comes in a single (1-Up: 1 LED) and a triple (3-Up: 3 LEDs). The 1-Up Saiph Star board is a single LED reflow soldered to a 20mm hexagonal (LED Star) MCPCB. The MCPCB has four large solder pads for easy solder connections. The 3-Up Saiph Star board is three (3) LEDs reflow soldered in-series to a 20mm hexagonal MCPCB. The 3-Up MCPCB has two solder pads for connections, mounting holes for compatible secondary optics and a center hole for wires or securing the LED star to a heat sink.

Colors

The colors available are:  Far Red, Deep Red, Red, Red-Orange, Amber, PC Amber, Lime, Green, Cyan, Blue, Royal Blue & Violet. Dominant or Peak Wavelength for each color can be found in the performance table below.

Optics Ready™ — Choose Your Beam

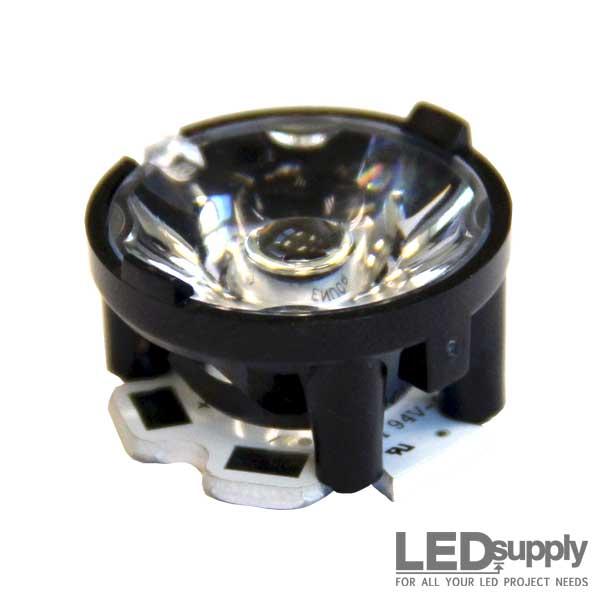

The Optics Ready™ platform brings together secondary optics from Fusion Optix, Carclo, Khatod and other leading manufacturers. Optic and holder compatibility varies by LED emitter and board configuration. Choose from the compatible accessories listed for this product, or contact our solutions team to confirm the right optic and beam for your application.

Images, Part Numbers & Notes

Select the LED options near the 'add to cart' button to see the corresponding product image and part number. For referencing detailed specifications there are tables and downloadable documentation below.  Important Note: Unless noted otherwise the specifications list are for a single Luxeon C Color LED. This means that in most cases the values need to be tripled for applications with the 3-Up version. For Example, if the forward voltage listed is 2.95V @ 350mA, the 3-Up version would be 8.85V.

Technical Documentation

Product Performance at 350mA, T_J= 85° C

Notes for Table

• Lumileds maintains a tolerance of ±6.5% on luminous flux measurements. PC Amber, Mint and Lime are binned by chromaticity coordinates. Far Red, Deep Red, Royal Blue and Violet are binned by peak wavelength. All other colors are binned by dominant wavelength.
• Far Red, Deep Red, Royal Blue and Violet are binned by radiometric power. All other colors are binned by luminous flux.

Optical Characteristics

Notes for Optical Characteristics Table

• Lumileds maintains a tolerance of ±6.5% on luminous flux measurements. PC Amber, Mint and Lime are binned by chromaticity coordinates. Far Red, Deep Red, Royal Blue and Violet are binned by peak wavelength. All other colors are binned by dominant wavelength.
• Spectral half-width is the spectral bandwidth at 50% of the peak intensity.
• Total angle at which 90% of total luminous flux is captured.
• Viewing angle is the off axis angle from LED centerline where the luminous intensity is ½ of the peak value.

Electrical Characteristics at 350mA, T_J=85°

Notes for Table

• Lumileds maintains a tolerance of ±0.06V on forward voltage measurements.
• Measured between 25°C & 85°C

Absolute Maximum Ratings

Full Documentation

Luxeon C Color Line Documentation
