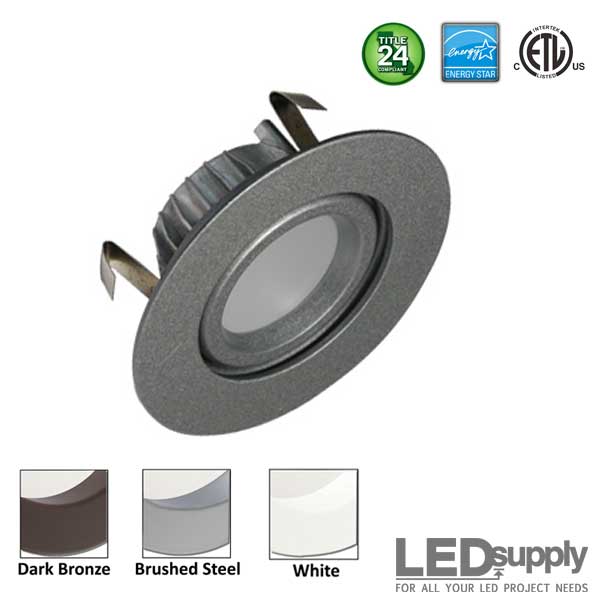

LED Downlight: 3-Inch Swivel Head Remodel Can & Trim
More images
Purchase
SAME DAY SHIPPING
- Highly Efficient - 50 Lumens per Watt
- 50 Watt Incandescent Equivalent
- For both damp and dry locations
Product Details
| Includes light engine with integrated swivel trim | Energy Star Rated |
| Warm-white 3000K Color Temperature | Includes 3-inch non-insulated remodel can |
| Suitable for damp locations | Dimmable |
| Five year warranty | 5-Watt, 80 CRI, 275 Lumen, Cree LED |
Description
The smallest member of the LED downlight family includes a 3-inch swivel non-iC remodel housing with a built-in driver. The cut-out template and familiar remodel housing with junction box accepts 120V supply power via one of the eight 1/2 knockouts. Ceiling clips hold the light engine in place.Save 88% in running costs compared to corresponding 50R20 incandescent lamps that last only 2,000 hours.
Technical Documentation
| MODEL No. | LS-EP3S-30-XX |
| LED TYPE | Samsung LED |
| ENERGY STAR RATED | YES |
| WATTAGE | 6W |
| VOLTAGE | 120VAC / 60Hz AC Operation |
| DIMMABLE | YES |
| LUMENS | 340 |
| COLOR TEMPERATURE | 3000K |
| CRI | 80 |
| BEAM ANGLE | 77.1° |
| HOUR RATING | 25,000 |
| LUMENS/WATT | 61 |
| DIMENSIONS | 4.75" (H) x 11.25" (L) x 5.5" (W) |
Full Documentation & Installation Instructions
