35mm 7-Up TIR Narrow Spot (15°) Lens Array Optic - Fusion Optix 35XPA7 Series

The Fusion Optix 35XPA7 Series is a family of high-performance 35mm TIR optics designed for 7-Up LED configurations of the PULSAR platform using Cree XP and other compatible 3535-footprint high-power LEDs. This widely used LED format includes devices from Cree LED as well as compatible 3535 packages from manufacturers such as Nichia, Lumileds and Samsung. Available in multiple beam distributions, the XP20A3 Series provides a simple way to tailor beam shape and light distribution while maintaining a common optical platform. Ideal for compact spotlights, downlights, architectural fixtures, task lighting and other high-output LED applications, these precision optics make it easy to select the right beam for your lighting project.

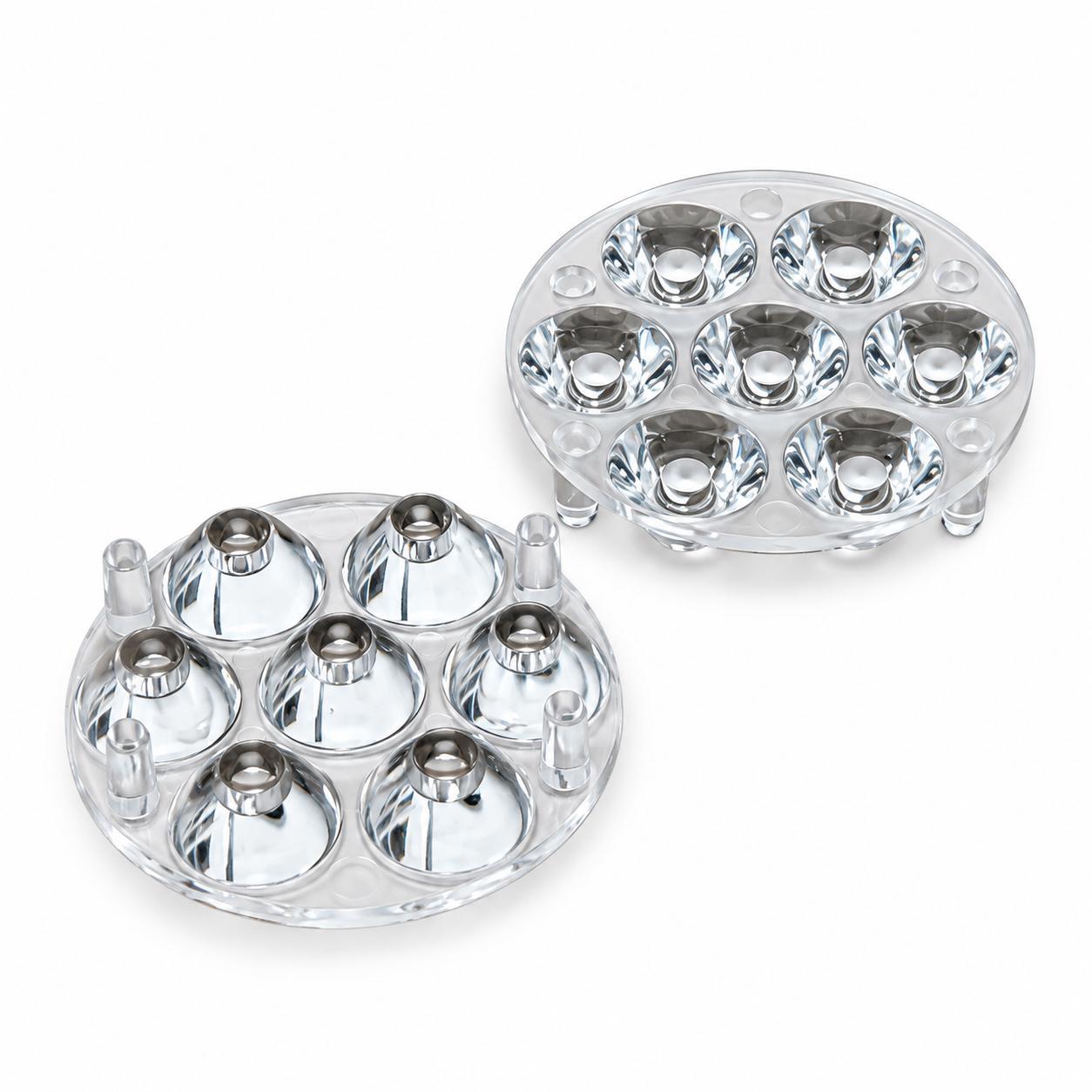

The 7-Up TIR lens array is seven separate 10mm TIR optics packaged closely together and designed to throw light in several specific illumination patterns. The standard offering is Spot, Medium and Wide Illumination patterns.  These 7-Up optics are designed to work with LEDs from leading brands such as Cree, Lumileds and Nichia and are supplied by Fusion Optix®, one of the world's leading optics companies.

16.4° FWHM - XPE	4.9 Cd/lm - XPG
88.7% EFF - XPE	20mm Dia. UV Stabilized PMMA
9.8 Cd/lm - XPE	18° FWHM - REBEL
Fits 7-Up PULSAR Star LEDs	86% EFF - REBEL
24° FWHM - XPG	7.1 Cd/lm - REBEL
87.3% EFF - XPG	Prevent Contact with Solvents or Vapor

Technical Documentation

Characteristics:

MFG	LED	Eff.	FWHM	Cd/lm
CREE	Cree XLamp XP-E White	88.7	16.4	9.8
LUXEON	Lumileds Luxeon Rebel	86	18	7.1
OSRAM	Osram Oslon SSL 80 degree White	88	19.5	8.5
SEOUL	SSC Z - Power Z5 White	84.4	15.1	12.6

Notes for Table

• Eff.: This is determined by measuring the ratio of the light collected after the Optic output face (excluding scattered light) and dividing this by all the light collected from the LED alone.
• FWHM: Beam angle is typically expressed as the Full Width in degrees at Half Maximum intensity (FWHM); A measure of the width of a distribution defined as the separation of the data points on either side of the peak which have values equal to 50% of the maximum. For intensity distributions this is the angular range at which the intensity falls to half its maximum value.
• Cd/lm: The SI base unit of luminous intensity which is the power emitted by a light source in a particular direction, weighted by the sensitivity of the human eye.
• TIR (Total Internal Reflection) Optic: When light passes from a high refractive-index medium (such as glass) to a low refractive-index medium (such as air) there is a special angle, known as the critical angle, above which light is 100% reflected. Any light rays that fall within the critical-angle undergo total internal reflection. TIR optics use this principle to produce highly efficient optics with a huge variety of beam shapes.

Important Information

35mm TIR Optics The most common size of TIR optic as these produce a range of beam angles from relatively tight to wide. There are also two reflectors within our 35mm range that take the beam even wider â€" therefore, you can design your fixture around this family of optics and select what beam is required as you build.
