Mean Well NLDD-H Series DC-DC Constant Current LED Driver
More images
Regular Price: $5.49
Sale Price: $4.99
You Save: $0.50
PART #: NLDD-x-x
VOLUME DISCOUNTS
PCS
% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class > $39.99
FREE
First Class
$3.99
Ground
$11.99
2-Day
$13.99
Express
CALC
Purchase
ORDER BY 3PM EST FOR
SAME DAY SHIPPING
SAME DAY SHIPPING
- DC-DC Buck Driver (350–1400mA Output)
- Wide Input (10–56VDC), Output (6–52VDC)
- Replaces LDD, LDH & LDB Series
Share:
Product Details
| OUTPUT RANGE: 350mA to 1400mA constant current | INPUT VOLTAGE: 10–56VDC (59V max.) |
| OUTPUT VOLTAGE: 6–52VDC | REPLACES: LDD-L/H, LDH, LDB Series |
| DIMMING: PWM (100–1KHz), Remote ON/OFF | FORM FACTOR: Same pinout as LDD series |
| EFFICIENCY: Up to 96% | OPERATING TEMP: -40 to +50°C |
| PROTECTION: Short Circuit / Over Temperature | APPLICATIONS: DC lighting, track & landscape lighting |
| COMPLIANCE: EN61347, EN55015, EAC Certified | WARRANTY: 3 Years |
Description
The Mean Well NLDD-H Series is a new line of DC-DC constant current step-down LED drivers designed to replace the popular LDD, LDH, and LDB driver series. With outputs ranging from 350mA to 1400mA, the NLDD-H covers the most in-demand current ratings for compact, high-performance LED lighting systems.

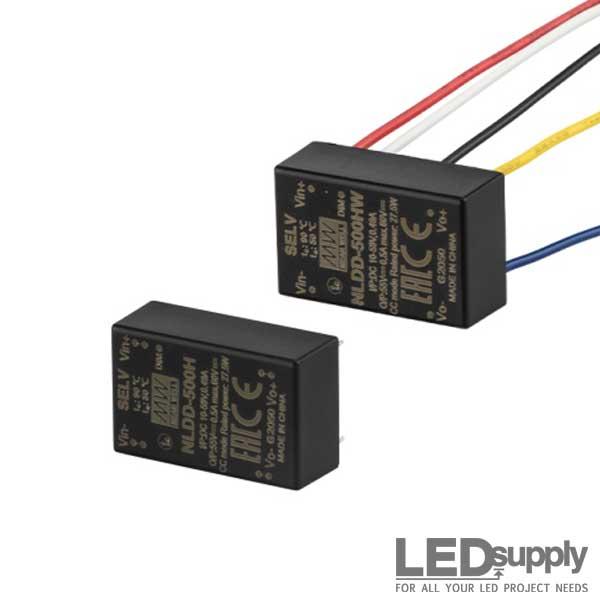

Connection Style Variations
While Mean Well has consolidated its product range by eliminating less popular variants and surface-mount formats, the NLDD-H maintains full compatibility with the pinout of the older LDD series, making it a direct drop-in replacement in most applications.
Performance
These drivers offer wide input voltage support (10–56VDC), PWM dimming capabilities (100–1000Hz), and high efficiency up to 96%, making them ideal for portable lighting, DC bus lighting, 48V track lighting, and more. The minimum output voltage has been increased to 6V, which requires at least 2 LEDs in series, improving thermal performance and driver robustness.
Built in a compact and fully encapsulated case with UL94-V0 flame retardant epoxy, the NLDD-H offers short circuit and over-temperature protection, 3-year warranty coverage, and full certification to global lighting standards.
Technical Documentation
LDD-L Series Specifications
| Model | Input (VDC) |
Output | Dimming | Dimensions (mm) |
Connection Type |
||
|---|---|---|---|---|---|---|---|
| Volt. Range (VDC) |
Current (mA) |
Temp. (°C) |
|||||

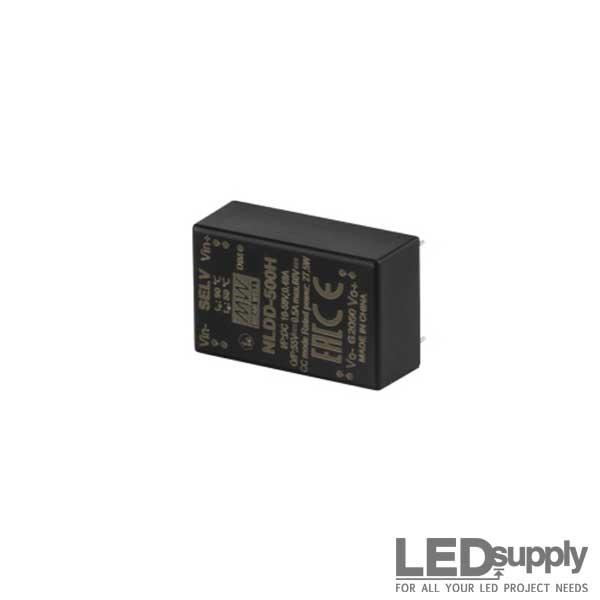

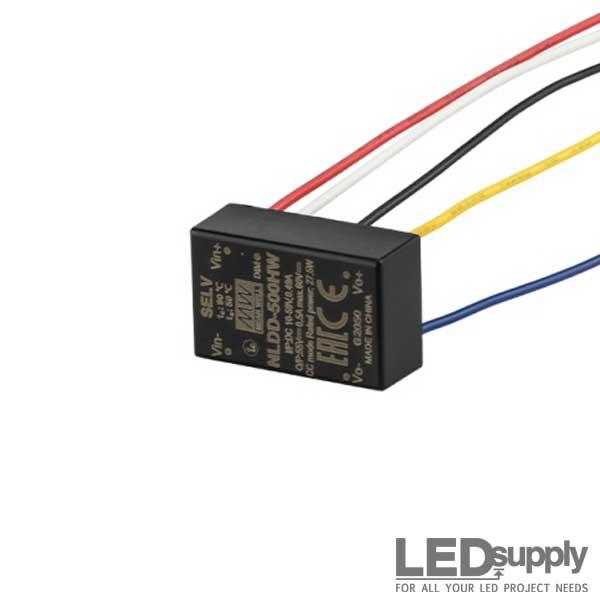

| NLDD-350H NLDD-350HW |
10~56VDC | 2~32VDC | 350mA | -40 ~ +85°C | PWM & ON/OFF Control | 22.6(L) x 9.9(W) x 8.9(H) | L=Pin Style LW=Wire Style |
| NLDD-500H NLDD-500HW |
10~56VDC | 2~32VDC | 500mA | -40 ~ +85°C | PWM & ON/OFF Control | 22.6(L) x 9.9(W) x 8.9(H) | L=Pin Style LW=Wire Style |
| NLDD-700H NLDD-700HW |
10~56VDC | 2~32VDC | 700mA | -40 ~ +85°C | PWM & ON/OFF Control | 22.6(L) x 9.9(W) x 8.9(H) | L=Pin Style LW=Wire Style |
| NLDD-1050H NLDD-1050HW |
10~56VDC | 2~30VDC | 1050mA | -40 ~ +71°C | PWM & ON/OFF Control | 31.8(L) x 20.3(W) x 12.2(H) | L=Pin Style LW=Wire Style |
| NLDD-1200H NLDD-1200HW |
10~56VDC | 2~30VDC | 1200mA | -40 ~ +71°C | PWM & ON/OFF Control | 31.8(L) x 20.3(W) x 12.2(H) | L=Pin Style LW=Wire Style |
| NLDD-1400H LDD-1400HW |
10~56VDC | 2~30VDC | 1500mA | -40 ~ +71°C | PWM & ON/OFF Control | 31.8(L) x 20.3(W) x 12.2(H) | L=Pin Style LW=Wire Style |
Misc. Characteristics
Characteristics
LDD-L Series
CURRENT ACCURACY
±5% at 24VDC input
SWITCHING FREQUENCY
300L~700L: 40KHz~1000KHz, 1000L~1500L: 1000KHz
EXTERNAL CAPACITANCE LOAD (max.)
2.2uF
INPUT FILTER
Capacitor
PWM DIMMING FREQUENCY
300L~700L: 100~1KHz, 1000L~1500L: 100~500KHz
QUIESCENT INPUT CURRENT SHUTDOWN
1mA at PWM dimming OFF and 24VDC input
SHORT CIRCUIT
Regulated at output current, can be continued, auto-recovery
OVER TEMPERATURE
300~700: Shut down, auto-recovery
WORKING TEMP.
300~700: -40 ~ 85°C, 1000L~1500L: -40 ~ 71°C(Refer to "Derating Curve")
STORAGE TEMP., HUMIDITY
-40 ~ +85°C, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.3%/°C
VIBRATION
10~500Hz, 2G 10min./1cycle, period for 60min. each along X,Y,Z axes
EMC EMISSION
Compliance to EN55015, FCC part 15 class B
EMC IMMUNITY
Compliance to EN61000-4-2,3,4,6,8; light industry level, criteria A
MTBF
2000Khrs min. MIL-HDBK-217F (25°C)
Full Documentation
NLDD
×
