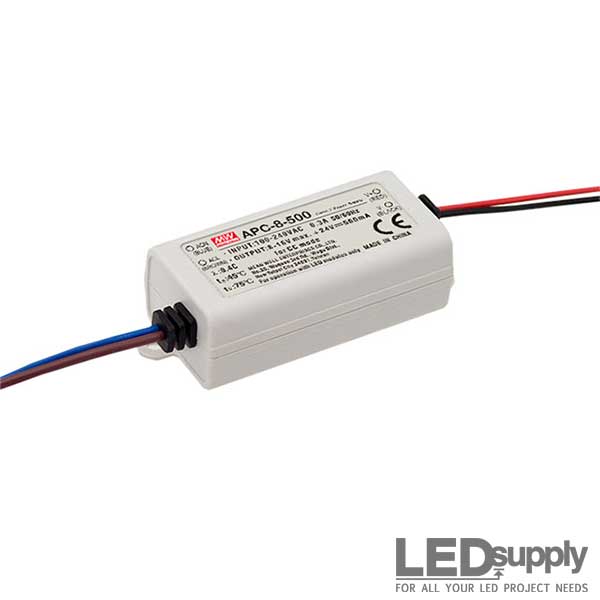

Mean Well APC Series 8~35W Constant Current LED Drivers

Mean Well APC Series 8~35W Constant Current LED Drivers
Click to enlarge

More images

Sale Price: $4.99
Compared at: $5.49
You Save: $0.50
PART #: APC-X-X
Volume Discounts
PCS% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class
FREE
Priority Mail
$5.99
FedEx Ground
$7.99
UPS Ground
$8.99
FedEx Express
CALC
490PCS IN-STOCK
Add to Cart
ORDER BY 3PM EST FOR
SAME DAY SHIPPING

Product Details


Features

INPUT POWER: 90 ~ 264Vac CASING: Rectangular Plastic Case IP42 NON PFC
OUTPUT CURRENT: Varies from 250mA - 1050mA WATTS: 8W Up to 35W
CONNECTIONS: UL Rated 18-20 AWG Wire Low Cost, High Reliability
WARRANTY: 2-Years SAFETY: Class 2 Power Unit, Short-Circuit & Over-Voltage
Super Small & Compact Size! APPLICATIONS: LED Lighting & Moving Sign Applications




Description

Mean Well’s AP Constant Current LED Drivers run off line voltage (90-264). The AP series comes in 8, 12, 16, 25 and 35 Watt models that drive constant currents between 250 and 1050mA. These super compact drivers come in a fully isolated plastic case that is IP42 rated. The small design allows you to work this into your lighting design easily and seamlessly. The wire connections are UL rated and run from 18-20AWG depending on the Wattage you select (see table below for specifics). If you have specifications and standards for your project, you should know this is a class 2 power unit. This low cost, high reliability unit is just what you need for 8 to 35 Watts of LEDs running straight from AC power.

Mean Well APC Model Number EncodingConstant Current or Constant Voltage

Mean Well offers the AP series in constant current (APC) and constant voltage (APV) models. If you are interested in the constant voltage, single-output model see here.

Product Support

LEDSupply is trained on all Mean Well products and available to answer any of your questions. Still unsure of what Mean Power Source is right for you? Take a look at the Quick Selection Guide which explains the many variations and styles of LED power supplies.




Technical Documentation

Specifications

Model InputOutput Dimming Dimensions
(mm)
Range
(VAC)
Freq.
(Hz)
Eff.
(Typ.)
Current
(mA)
Range
(VDC)
Power
(W)
R&N
(mV)
APC-8-250 90~264VAC 47~63Hz 82.5% 250mA 16~32VDC 8W 350mV no 60(L) x 30(W) x 23.5(H)
APC-8-350 90~264VAC 47~63Hz 81.5% 350mA 11~23VDC 8W 300mV no 60(L) x 30(W) x 23.5(H)
APC-8-500 90~264VAC 47~63Hz 81% 500mA 8~16VDC 8W 300mV no 60(L) x 30(W) x 23.5(H)
APC-8-700 90~264VAC 47~63Hz 80% 700mA 6~11VDC 8W 250mV no 60(L) x 30(W) x 23.5(H)
APC-12-350 90~264VAC 47~63Hz 82% 350mA 9~36VDC 12W 300mV no 77(L) x 40(W) x 29(H)
APC-12-700 90~264VAC 47~63Hz 80% 700mA 9~18VDC 12W 250mV no 77(L) x 40(W) x 29(H)
APC-16-350 90~264VAC 47~63Hz 84% 350mA 12~48VDC 16W 300mV no 77(L) x 40(W) x 29(H)
APC-16-700 90~264VAC 47~63Hz 83% 700mA 9~24VDC 16W 250mV no 77(L) x 40(W) x 29(H)
APC-25-350 90~264VAC 47~63Hz 83% 350mA 25~70VDC 25W 300mV no 84(L) x57(W) x 29.5(H)
APC-25-500 90~264VAC 47~63Hz 83% 500mA 15~50VDC 25W 300mV no 84(L) x57(W) x 29.5(H)
APC-25-700 90~264VAC 47~63Hz 83% 700mA 11~36VDC 25W 300mV no 84(L) x 57(W) x 29.5(H)
APC-25-1050 90~264VAC 47~63Hz 83% 1050mA 9~24VDC 25W 300mV no 84(L) x 57(W) x 29.5(H)
APC-35-350 90~264VAC 47~63Hz 84% 350mA 28~100VDC 35W 350mV no 84(L) x 57(W) x 29.5(H)
APC-35-500 90~264VAC 47~63Hz 84% 500mA 25~70VDC 35W 350mV no 84(L) x 57(W) x 29.5(H)
APC-35-700 90~264VAC 47~63Hz 84% 700mA 15~50VDC 35W 350mV no 84(L) x 57(W) x 29.5(H)
APC-35-1050 90~264VAC 47~63Hz 84% 1050mA 11~33VDC 35W 350mV no 84(L) x 57(W) x 29.5(H)



Misc. Characteristics

Characteristics
APC Series
CURRENT ACCURACY
±8.0%
HOLD UP TIME
20ms/230VAC at full load
LEAKAGE CURRENT
0.25mA / 240VAC
WORKING TEMP.
-30 ~ 70°C (Refer to "Derating Curve")
WORKING HUMIDITY
20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80°C, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.2%/°C (0~45°C)
VIBRATION
10~500Hz, 2G 10min./1cycle, period for 60min. each along X,Y,Z axes
ISOLATION RESISTANCE
I/P-O/P:>100M Ohms / 500VDC / 25°C / 70% RH




Full Documentation
