Corner LED Aluminum Channel for Strip Lights - ALC1001

Description

Architectural 45° Corner Channel with Integrated Optical Design

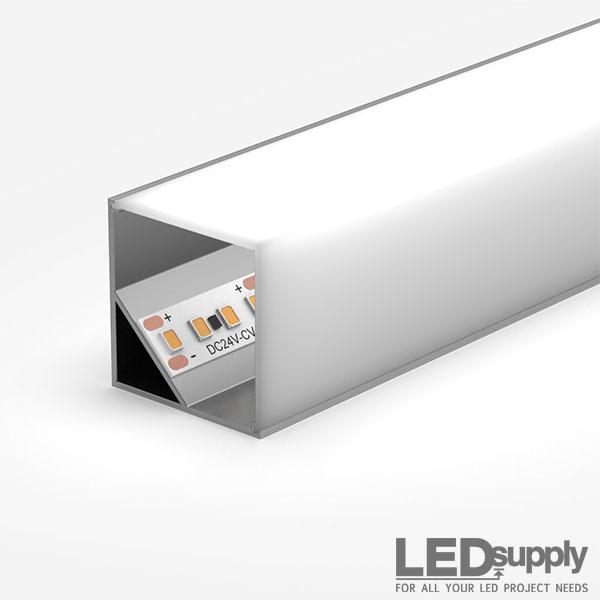

The ALC1001 Corner LED Aluminum Channel is designed for clean, professional LED strip light installations where both the mounting angle and the finished appearance matter. Its 45° corner profile directs light outward from inside corners, cabinet edges, shelving, displays, and architectural details, helping create a more intentional line of light compared to exposed LED tape.

Designed Around Light Control, Not Just Mounting

More than a basic aluminum extrusion, the ALC1001 is built as part of a complete LED lighting system. The channel is compatible with optics by Fusion Optix, an affiliated optical technology brand known for advanced lens and light-control solutions. This gives the ALC1001 a stronger design advantage for projects where diffusion, beam control, and visual comfort are important.

Optional Diffusion Lens Helps Reduce LED Hotspots

The optional PC diffusion lens helps soften the output from compatible LED tape, reducing visible diode imaging and creating a smoother, more finished appearance. This is especially useful in under-cabinet lighting, retail displays, millwork, shelving, and other installations where the fixture may be visible from normal viewing angles.

Premium Aluminum Construction for Thermal Performance

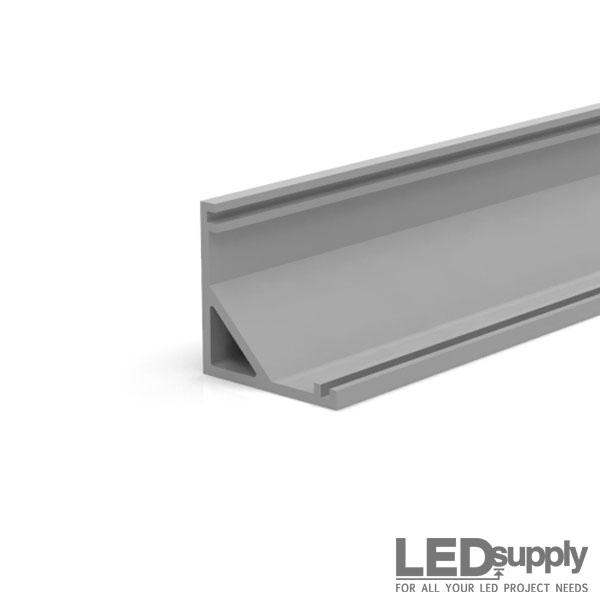

The ALC1001 is made from premium 6063-T5 aluminum, giving the channel excellent rigidity, durability, and heat-sinking performance. By helping draw heat away from the LED tape, the aluminum housing supports more reliable operation and longer LED life, especially in higher-output or long-run lighting applications.

Compatible with Select LEDdynamics Tape Light

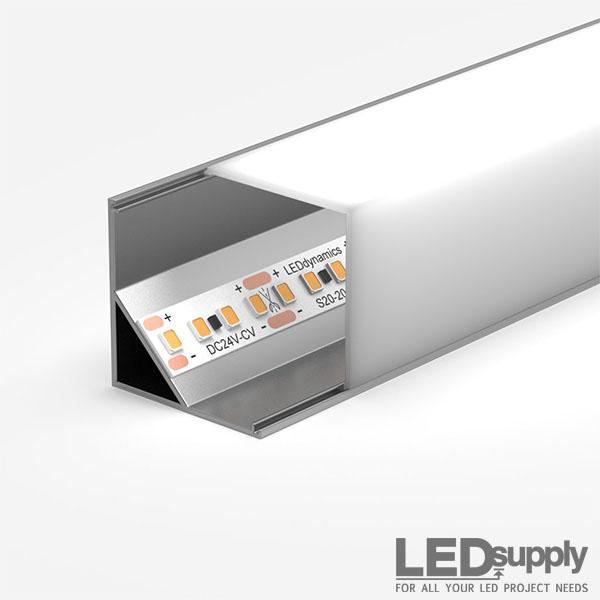

This corner channel accepts select low-voltage LEDdynamics LED tape, including compatible LUMAflex, CHROMAflex, and VITAflex Series tape. The result is a cleaner system approach: LED tape, aluminum channel, and optical diffusion designed to work together for a professional-grade linear lighting installation.

Field-Cuttable for Custom Installations

The LED channel and optic are field cuttable, making the ALC1001 easy to adapt to custom cabinet, shelf, display, and architectural lighting layouts. It is available in lengths up to 96 inches, with finish options including clear anodized, white, black, and custom finishes when required. End caps and mounting hardware are sold separately.

Built for Contractors, Designers, and Custom Lighting Projects

With its 45° corner format, aluminum thermal management, optional Fusion Optix-compatible diffusion, and support from LEDdynamics applications engineering, the ALC1001 is a strong choice for contractors, cabinet makers, lighting designers, OEMs, and advanced DIY projects that need a cleaner, more engineered LED strip lighting solution.
