Luxeon R Neutral-White 1-Up LED Star
More images
Regular Price: $2.74
Sale Price: $2.49
You Save: $0.25
PART #: 07040-LXA7-40
VOLUME DISCOUNTS
Shipping Information*
FREE SHIPPING on orders under 13oz - NO MINIMUM
LEDSupply does NOT profit from the shipping or handling of your order!
Orders received before 3PM EST will be safely packaged and quickly shipped the same business day. If your order is NOT shipped the same business day, LEDSupply will offer a 5% discount off your next order.
All orders SHIP FROM:
44 Hull Street
Suite 200
Randolph, Vermont 05060
See respective ZONE maps below for SPECIFIC delivery time to your location:
Any order that does not qualify for free shipping, will by default include a discount of equal value to the free shipping offer.
The shipping offered is meant to provide the widest variety of shipping options at the lowest price:
FREE USPS First Class SHIPPING on orders under 13oz
$5.99 USPS Priority SHIPPING on orders under 2lbs
$7.99 FedEx GROUND SHIPPING on orders under 2lbs
$8.99 UPS GROUND SHIPPING on orders under 2lbs
$16.99 2-Day SHIPPING on orders under 2lbs
$29.99 Standard Overnight SHIPPING on orders under 2lbs
$39.99 Priority Overnight SHIPPING on orders under 2lbs
Real-Time Rates are calculated for all International shipments
*Base Rate + $1.99/lb for orders over 2lbs
USPS Priority Delivery Zone Map:
FedEX Ground Delivery Zone Map:
UPS Ground Delivery Zone Map:
×
Shipping
LEDSupply does NOT profit from the shipping or handling of your order!
Orders received before 3PM EST will be safely packaged and quickly shipped the same business day. If your order is NOT shipped the same business day, LEDSupply will offer a 5% discount off your next order.
All orders SHIP FROM:
44 Hull Street
Suite 200
Randolph, Vermont 05060
See respective ZONE maps below for SPECIFIC delivery time to your location:
Any order that does not qualify for free shipping, will by default include a discount of equal value to the free shipping offer.
The shipping offered is meant to provide the widest variety of shipping options at the lowest price:
USPS Priority Delivery Zone Map:
FedEX Ground Delivery Zone Map:
UPS Ground Delivery Zone Map:
First Class
FREE
Fedex 2-Day
$7.99
FedEx Ground
$8.99
UPS Ground
$9.99
FedEx Express
CALC
Purchase
ORDER BY 3PM EST FOR
SAME DAY SHIPPING
SAME DAY SHIPPING
- Color Temp. (CCT): Neutral White 4000K
- 2.72Vf - Typ. Forward Voltage @ 350mA
- Max. Drive Current: 1000mA
Share:
Product Details
| 125 lm @ 350mA | 2.72Vf - Typ. Forward Voltage @ 350mA |
| 250 lm @ 700mA | 2.80Vf - Typ. Forward Voltage @ 700mA |
| 325 lm @ 1000mA (MAX) | 2.85Vf - Typ. Forward Voltage @ 1000mA |
| 75 - Typ. CRI | 120° - Viewing Angle |
| 4000K - Color Temperature | 150° C - Max Juntion Temperature |
Description
Due to over-stock we are able to offer the Luxeon R 7040-LXA7-40 Neutral-White high-power SMT LED star at closeout prices.
The Luxeon R line of LEDs offer illumination grade light quality for outdoor and industrial lighting applications. The high flux output (over 200 lumens at 700mA) and low price make the Luxeon R an ideal choice for applications that require a quick ROI. The color rendering index (CRI) of the Luxeon R is 75 (lower than some), but that is the trade off for high lumens and is why the LED is designed for outdoor and industrial lighting applications where light quantity is more a priority than light quality.
The Luxeon R 7040-LXA7-40 LED is also available re-flowed to both a triple metal core printed circuit board (MCPCB) 'LED Star'. The triple LED Star (3-Up) can be found here .
Technical Documentation
| Color Temperature | Part# | Min. CRI | Typ. CRI | CAT Code | Max Flux @350mA | Max Flux @700mA | Max Flux @1000mA |
| 4000K | LXA7-PW40 | 70 | 75 | Q53R | 125 | 215 | 325 |
Notes for Table
- For complete documentation please reference the MFG datasheet
| Normal ANSI CCT | Typ. Color Temp. CCT | Total Angle (degrees) | Typ. Viewing Angle (degrees) |
| 4000K | 3985K | 160 | 120 |
Notes for Table
- For complete documentation please reference the MFG datasheet
| Part# | Min. Forward Voltage | Typ. Forward Voltage | Max. Forward Voltage | Temp. Coefficient | Thermal Resistance Junction |
| LXA7-PW40 | 2.75 | 2.81 | 3.00 | -1.8 to -2.4 | 6 |
Notes for Table
- For complete documentation please reference the MFG datasheet
Full Documentation
DocumentationAccessories
Luxeon Rebel - Carclo Optics

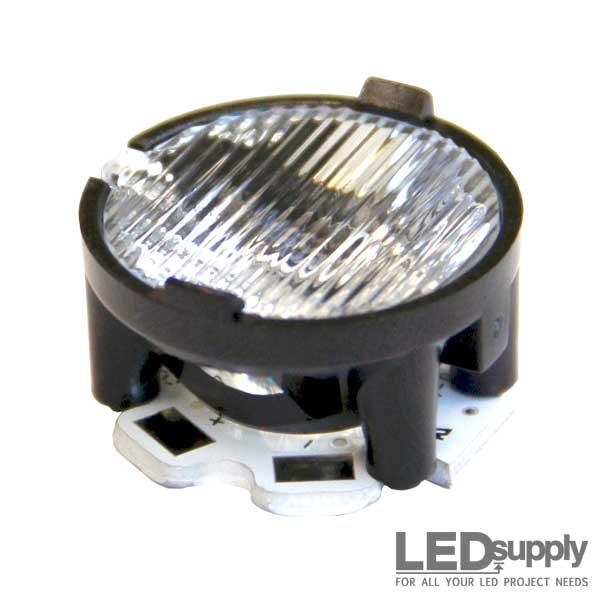

10209 Carclo Lens - Ripple Wide Spot LED Optic
The #10209 20mm diameter Carclo poly-carbonate lens controls the optical properties of high-power LEDs into a wide spot pattern.
PART #: 10209
$1.38
Sale Price: $1.25
10193 Carclo Lens - Plain Tight Spot LED Optic
The #10193 20mm diameter Carclo poly-carbonate lens controls the optical properties of high-power LEDs into a narrow spot pattern.
PART #: 10193
$1.38
Sale Price: $1.25
10197 Carclo Lens - Elliptical Spot LED Optic
The #10197 20mm diameter Carclo poly-carbonate lens controls the optical properties of high-power LEDs into a elliptical spot pattern.
PART #: 10197
$1.38
Sale Price: $1.25
10195 Carclo Lens - Frosted Medium Spot LED Optic
The #10195 20mm diameter Carclo frosted poly-carbonate lens controls the optical properties of high-power LEDs into a medium spot pattern.
PART #: 10195
$1.38
Sale Price: $1.25
10196 Carclo Lens - Frosted Wide Spot LED Optic
The #10196 20mm diameter Carclo frosted poly-carbonate lens controls the optical properties of high-power LEDs into a wide spot pattern.
PART #: 10196
$1.38
Sale Price: $1.25
10208 Carclo Lens - Ripple Medium Spot LED Optic
The #10208 20mm diameter Carclo poly-carbonate lens controls the optical properties of high-power LEDs into a medium spot pattern.
PART #: 10208
$1.38
Sale Price: $1.25
10732 Carclo Lens Holder
Round 20mm LED optic holder by Carclo Technical Plastics
PART #: 10732
$0.25
Sale Price: $0.23
10194 Carclo Lens - Frosted Narrow Spot LED Optic
The #10194 20mm diameter Carclo frosted poly-carbonate lens controls the optical properties of high-power LEDs into a narrow spot pattern.
PART #: 10194
$1.38
Sale Price: $1.25
General Accessories
Arctic Silver - High Density Silver Thermal Compound
Electrical isolating silver grease, 1:1 ratio, 5-minute work time, 5-grams
PART #: AS5-35G
$7.69
Sale Price: $6.99
AWG Stranded Wire
Red, black, blue, green, orange, yellow & white 20-24 gauge stranded AWG wire
PART #: xAWG-x
$0.28
Sale Price: $0.25

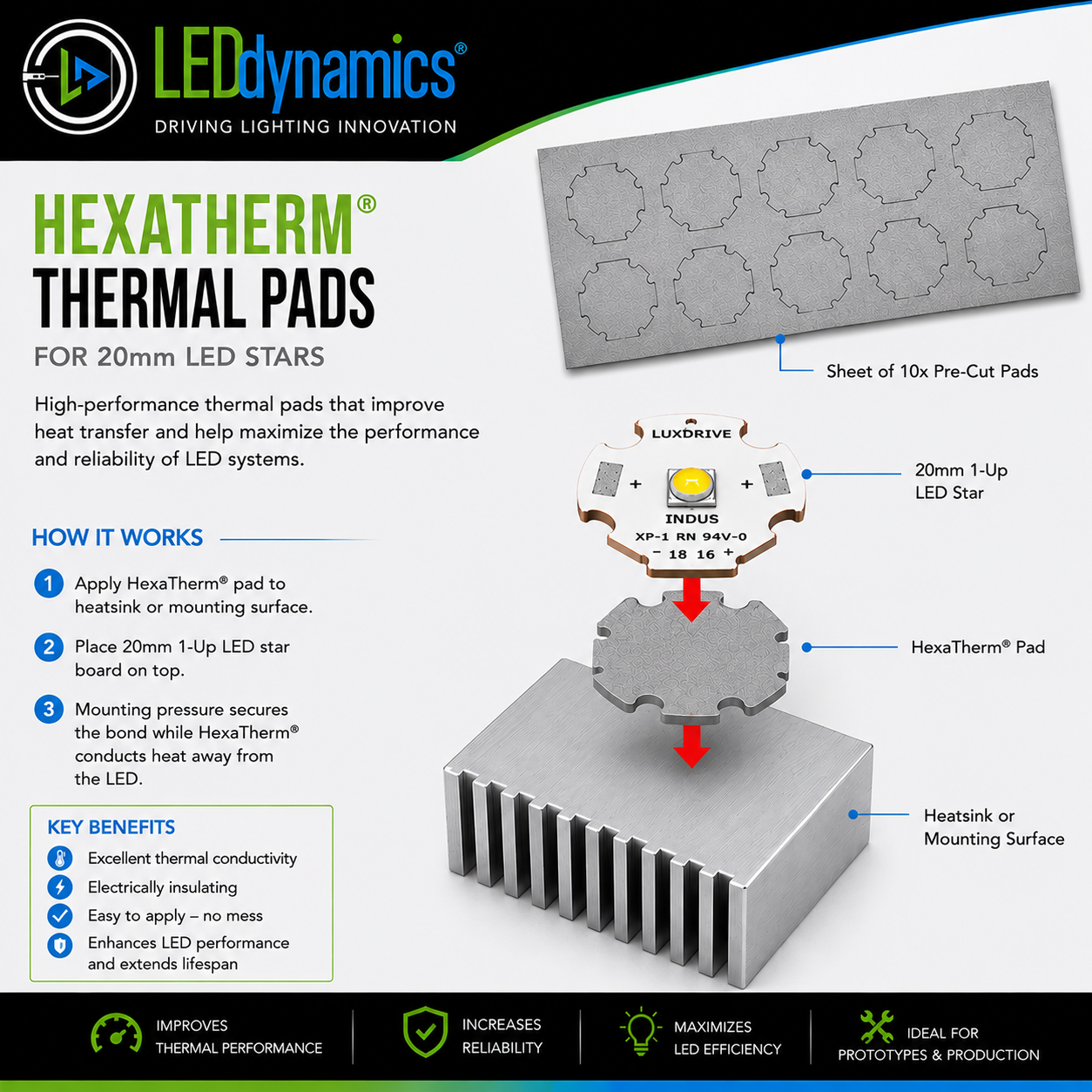

HexaTherm Tape - Thermally Conductive Double-Side Tape
