Cree XML - RGBW Star LED

Cree XML - RGBW Star LED
Click to enlarge

More images

Sale Price: $14.95
Compared at: $16.45
You Save: $1.50
PART #: CREEXML-RGBW
Volume Discounts
PCS% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class
FREE
Priority Mail
$5.99
FedEx Ground
$7.99
UPS Ground
$8.99
FedEx Express
CALC
90PCS IN-STOCK
Add to Cart
ORDER BY 3PM EST FOR
SAME DAY SHIPPING

Product Details


Featured Specifications

Red, Green, Royal-Blue, White Maximum Drive Current 1A per LED (1000mA)
Red (620-630nm): 2.25Vf - Typ. Forward Voltage @ 350mA Green (520-535nm): 3.3Vf - Typ. Forward Voltage @ 350mA
Royal-Blue (450-465nm): 3.1Vf - Typ. Forward Voltage @ 350mA White (3700K-4300K): 3.1Vf - Typ. Forward Voltage @ 350mA
Minimum Lumens: Red (45.7), Green (87.4), Royal-Blue (13.9) Minimum Luminous Flux: White (80 - 100)




Description

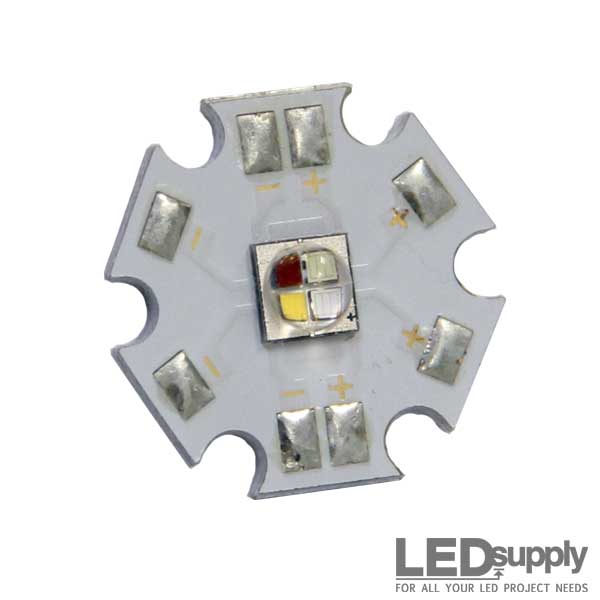

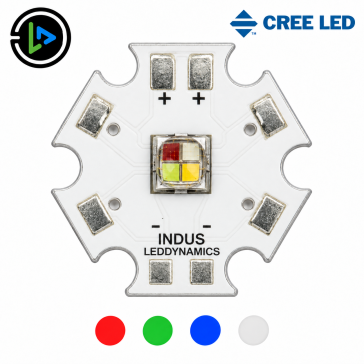

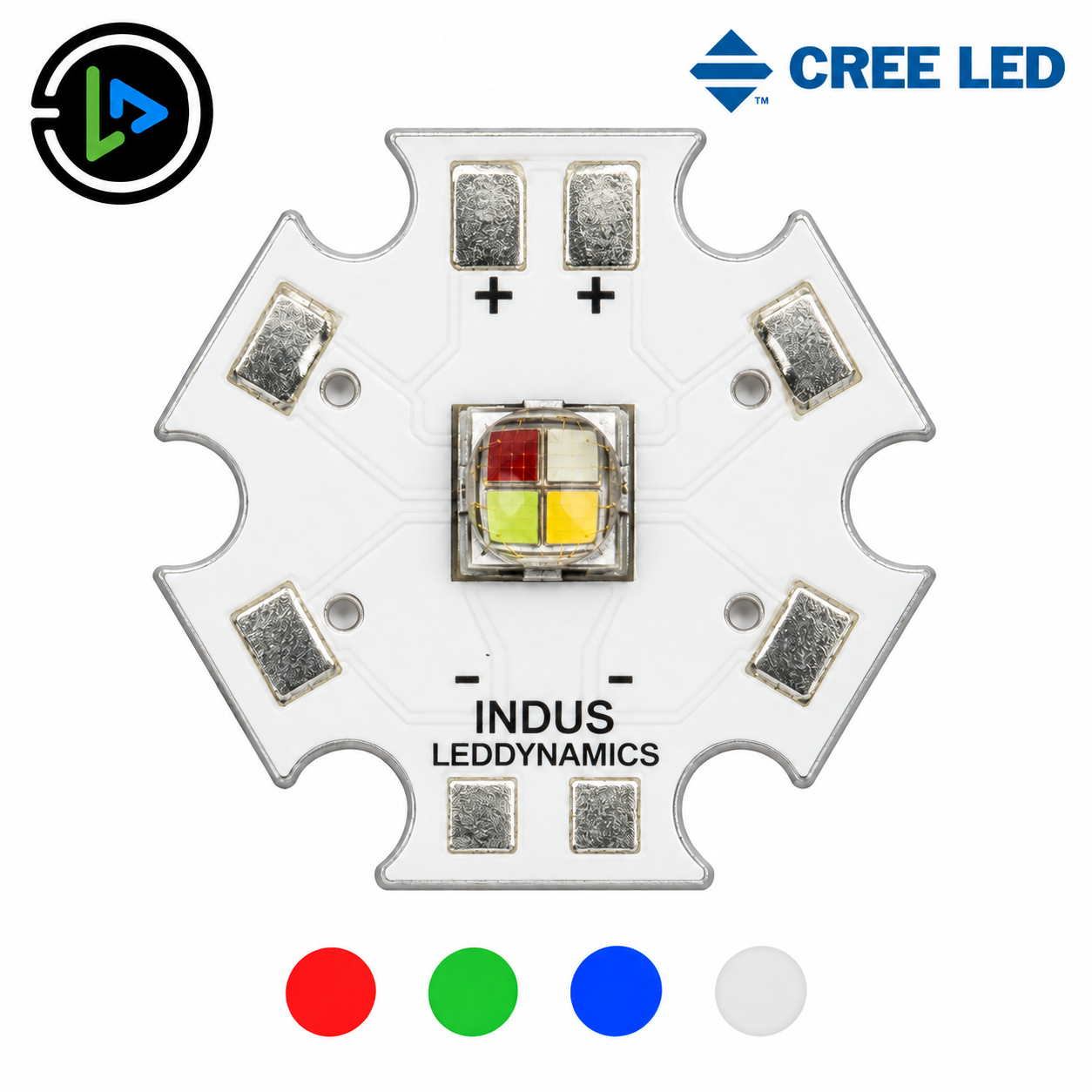

technical drawingThe RGBW, #CREEXML-RGBW, Cree XLamp® XM-L Color LED is a multi-color LED, providing high lumen output in a small package. Compared to individual Red, Green, Blue LEDs, the XLamp XM-L RGBW reduces the distance between LED die, creating a small optical source for excellent optical control and efficient color mixing.  The completed product is the XM-L RGBW LED re-flowed to a 20mm metal core printed circuit board (MCPCB). The 20mm MCPCB is a standard hexagonal shape (LED Star), with eight solder pads for easy wiring. The LED is compatible with Carclo optics, electrically isolated and shaped so multiple LED stars can be packed closely together to increase light output per unit area.




Technical Documentation

Absolute Maximum Ratings:
Item Absolute Maximum Rating unit
Forward Current 1000 mA
Forward voltage (@ 350 mA, 25 °C) - red 2.6 Vdc
Forward voltage (@ 350 mA, 25 °C) - green 3.9 Vdc
Forward voltage (@ 350 mA, 25 °C) - blue, white 3.7 Vdc
Viewing Angle 130 °
Junction Temperature 150 °C




Full Documentation
