Ultra-Violet (UV) High Power LED Star

Ultra-Violet (UV) High Power LED Star
Click to enlarge

More images

Sale Price: $7.99
Compared at: $8.79
You Save: $0.80
PART #: A00X-UV4XX-XX
Volume Discounts
PCS% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class
FREE
Priority Mail
$5.99
FedEx Ground
$7.99
UPS Ground
$8.99
FedEx Express
CALC
222PCS IN-STOCK
Add to Cart
ORDER BY 3PM EST FOR
SAME DAY SHIPPING

Product Details


Features

Wavelength: 400-410nm & 410-420nm Power: Up to 980mW @ 700mA
Max Drive Current: 350mA to 800mA Viewing Angle: 125°
Secondary Optics: Compatible with Carclo Optics Binned: 85°C
Forward Voltage @ 500mA: 3.2VDC to 4.2VDC Max. Junction Temp.: 150°C
Compliant: RoHS & ISO9001 Certified Emitter Size: 3.45mm X 3.45mm X 2.00mm




Description

The SemiLED UV LED uses proprietary MvpLED technology, a patented structure and metal alloy substrate, giving it 40% external quantum efficiency at 350mA. These C3535U-UNx1 UV-A LEDs are capable of operating at high currents (up to 800mA) with high output power density; giving the curing industry a better and more cost-effective solution.

On February 10th 2015 we published a related article on our high-power UV LED: "Ultra-Violet (UV) High Power LED Product and Applications Overview".

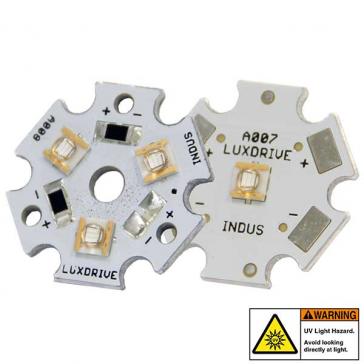

1-up led star optic versus 3-up led star optic

LED Star MCPCB

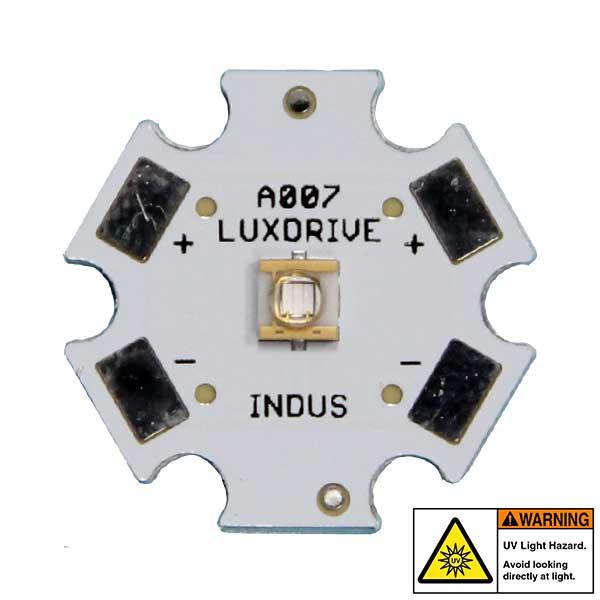

We offer this UV reflowed on your choice of two different metal core printed circuit boards (MCPCB) versions: a single (1-Up: 1 LED) and triple (3-Up: 3 LEDs). The 1- Up is a single UV LED reflow soldered to a 20mm hexagonal (LED Star) MCPCB. The MCPCB has four large solder pads for easy solder connections. The 3-Up is three (3) UV LEDs reflow soldered in-series to a 20mm hexagonal MCPCB. The 3-Up MCPCB has two solder pads for connections, mounting holes for secondary carclo optics and a center hole for wires or securing the LED star to a heat sink.

Wavelengths

The UV LED is available in two different wavelengths:  400nm to 410nm or 410nm to 420nm

1-up led star optic versus 3-up led star optic

Secondary Optics

Both versions (1-Up & 3-Up) of the SemiLED UV LED are designed to work with secondary optics from Carclo; Carclo is a leader in molded poly-carbonate lens systems. The 1-Up secondary lens system combines a plastic holder and lens that sits on top of the 1-Up MCPCB, while the 3-Up optic is a one-piece system with three legs that sit into corresponding holes on the 3-Up MCPCB. These secondary optics focus light into narrow, medium, wide and elliptical patterns. More information is available on optics compatible with the UV LED on this page within the Accessories tab above.

Images, Part Numbers & Notes

Select the LED options near the 'add to cart' button to see the corresponding product image and part number. For referencing detailed specifications there are tables and downloadable documentation below.  Important Note: Unless noted otherwise the specifications list are for a single UV LED. This means that in most cases the values need to be tripled for applications with the 3-Up version. For Example, if the forward voltage listed is 2.95V @ 350mA, then the 3-Up version would be 8.85V and the lumen output would be tripled as well.




Technical Documentation

RADIOMETRIC POWER AND FORWARD VOLTAGE (TJ= 25° C)

Part
Number
ColorPerformance at Test Current (500mA) Performance at 700mA
GroupDominant
Wavelength(nm)
Radiometric
Power (mW)
Vf Calculated Minimum
radiometric Power
(mW)
Min.Max.Min.Max.Min.Max.
C3535U-UNL1-A1G11H
A007/A008-UV410-48
U70
(410nm-420nm)
NF4 410nm 420nm 750 800 3.2 4.2 980
C3535U-UNL1-A1G11H
A007/A008-UV400-65
U60
(400nm-410nm)
NF2 400nm 410nm 650 700 3.2 4.2 850



CHARACTERISTICS - Absolute Maximum Ratings (TJ= 25° C)

Characteristics
Rating
DC Forward Current mA
800mA
LED Junction Temperature
150° C
LED Operating Temperature
-40° C ~ 85° C
Storage Temperature
-40° C ~ 85° C
Soldering Temperature
Max. 260° C / Max. 10sec. (JEDEC 020c)
ESD Sensitivity
2,000 V HBM (JESD-22A-114-B)
Reverse Voltage
Not designed to be driven in reverse bias
Preconditioning
Acc. to JEDEC Level 1




Full Documentation



Product Reviews

Login or Register to write the first review.

FAQ


Frequently Asked Questions


Q: Can I look at these UV LEDs?

A: No! UV-A (315nm-400nm) can pass through the cornea to the lens of the eye. Overexposure can lead to cataracts by creating oxidant that cause rapid formation of cataracts. Exposure to the skin causes suntans, but not sunburns. Sunburns are caused by UV-B. Please take protective measures for yourself and others when using UV LEDs!
