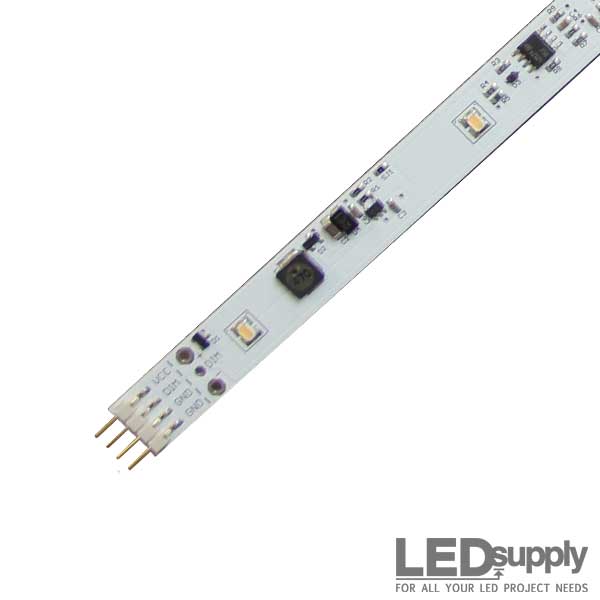

Elara 12V Strip 0.45"(W) - 9-Up LED Strip Lighting with Nichia Rigel LEDs

More images

9-Up ElaraStrip - LED Strip Lighting with Nichia Rigel LEDs

Regular Price: $27.48

Sale Price: $24.98

You Save: $2.50

PART #: 7011-XX

HIGHLIGHTS

1' Strip holds 9 mid-power Nichia LEDs
Light Output: 270 Lumens
Connect up to 10 at a time

ORDER BY 3PM EST
FOR SAME DAY SHIPPING

Purchase

QTY

14 PCS IN-STOCK

SHIPPING
1st Class	FREE*
1st Class	$5.99
Ground	$11.99
2-Day	$15.99
Express	CALC

DISCOUNTS
QTY	% OFF
10 - 49	2.5%
50 - 99	5%
100 - 249	7.5%
250-499	10%

^* With orders > $49.99 and under 13oz. CLICK HERE for details.

THIS OPTION IS TEMPORARILY UNAVAILABLE

Product Details

9 High-Power Nichia LEDs	0-10V Dimming
12" X .45" - Low Profile Flexible Design	270 - Lumens
Male/Female end-to-end connectors	4.5-watt Power Consumption
2900K-6500K - Color Temperature	On-Board Constant Current Driver
Input Voltage - 12VDC to 24VDC	Power-Supply, Harnesses & Connectors on Check-Out Page

Description

The 9-Up Elara Strip is a light engine designed for strip lighting. The Elara Strip combines nine Nichia LEDs with a dimming regulated current driver, all on a 12.0" x 0.45" strip. The low 0.15" profile and wide 120 viewing angle allows the Elara Strip to be mounted in tight locations while still providing flood illumination. The Elara Strip is designed to be connected end-to-end for long runs that only need power applied to one end of the run.

Full Documentation

Accessories

ElaraStrip Accessories

HexaTherm™ - Linear VHB Transfer Tape

Double-sided VHB transfer tape for adhering linear LED strips to a heatsink

PART #: VHB-TAPE

$3.85 Sale Price: $3.56

ElaraStrip - Wiring Harness

4-pin plastic connector with 4 wires for power input & dimming

PART #: 06014-HE

$4.28 Sale Price: $3.85

ElaraStrip - Power Connector

4-pin plastic connector with a center positive 2.5mm barrel plug power connector

PART #: 06014-PA

$10.11 Sale Price: $9.10

LUXdrive® 0-10V Wall Mount Dimmer - Single Slider Style

The F019 dimmer series uses a precision vertical slider control and wall mounting plate for 0-10V dimming.

PART #: 0F019-W

$37.41 Sale Price: $31.87

Aluminum Flat Bar

1/8" thick, 1" wide, 6061 T6511 aluminum

PART #: AFB1X125

$4.28 Sale Price: $3.85
