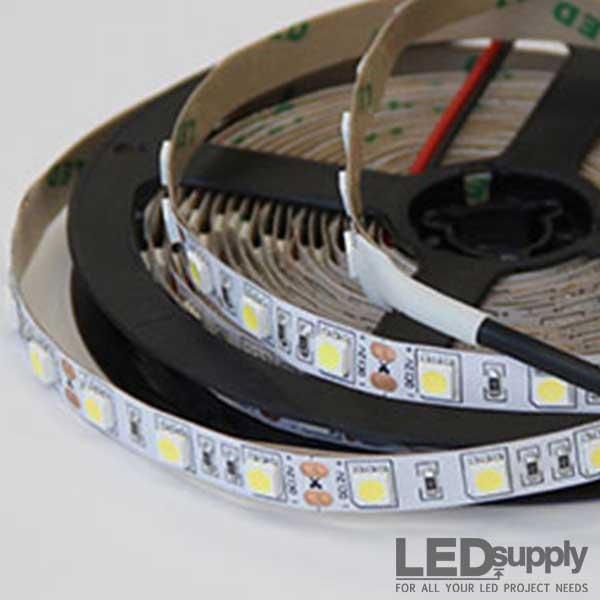

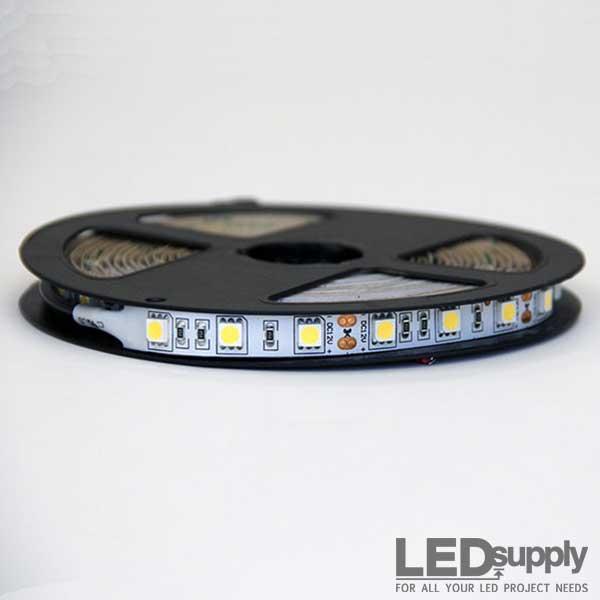

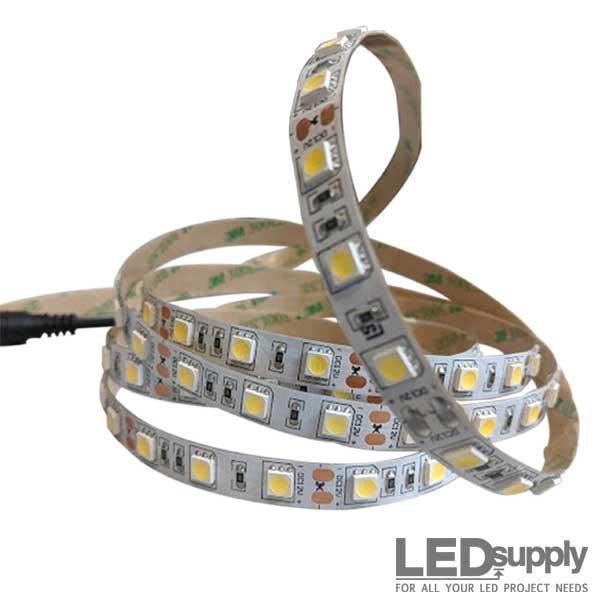

White Indoor High Density LED Strip Light — 24V, 5W/ft, IP20

Description

Part of our Professional Series, this high-density 24V white LED strip delivers smooth, efficient indoor lighting with 60 LEDs/m and output up to 329 lm/ft. Available in 2700K, 3000K, 3500K, and 4000K white options, with custom lengths and convenient 2-inch cut points for precise installation.

Available White Color Temperatures

Architectural-Quality White Light

Designed for refined indoor installations, this 24V strip combines high-density LED spacing with strong output and 90+ CRI for smooth, natural-looking illumination. It is a versatile choice for cabinetry, coves, shelving, displays, millwork, architectural details, and other applications where light quality and consistency matter.

High Density, Smooth Output

With 60 LEDs per meter, the strip provides closely spaced illumination for a smoother line of light than standard-density strips. It works especially well inside aluminum LED channels and diffusers where even, finished-looking illumination is desired.

24V Performance

The 24V design helps reduce voltage drop compared with lower-voltage strip systems, making it well suited for larger architectural installations and longer lighting layouts.

Lengths & Cutting

Available in 3 ft, 6 ft, 9 ft, 12 ft, and full 16.4 ft (5m) roll lengths. The strip can be cut every 2 inches at the marked copper cut points for precise fitting.

Installation & Connections

Strip sections include 6-inch wire leads for power connection and can be connected by soldering wire between sections or with compatible solderless connectors. The 10mm flexible PCB includes adhesive backing for mounting to clean, smooth surfaces and is especially well suited for installation inside compatible aluminum LED channels.

Power & Dimming

A 24V DC power supply is required. The strip is PWM dimmable using a compatible 24V dimmer installed between the power supply and LED strip. Size the power supply for the total connected strip load with appropriate additional capacity.
