MagTech - 350mA Output LED Driver with 0-10V Dimming

More images

MagTech - 350mA Output LED Driver with 0-10V Dimming

Regular Price: $21.99

Sale Price: $19.99

You Save: $2.00

PART #: LF1048-53-C0350

VOLUME DISCOUNTS

PCS

% OFF

10 - 49

50 - 99

7.5%

100 - 249

15%

250 - 499

20%

*Shipping Information

First Class > $49.99

FREE

First Class

$5.99

Ground

$11.99

2-Day

$15.99

Express

CALC

Purchase

0 PCS IN-STOCK

QTY

ORDER BY 3PM EST FOR
SAME DAY SHIPPING

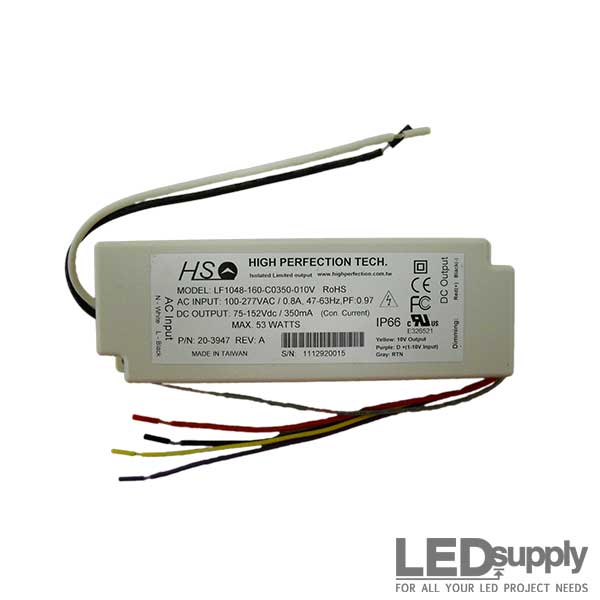

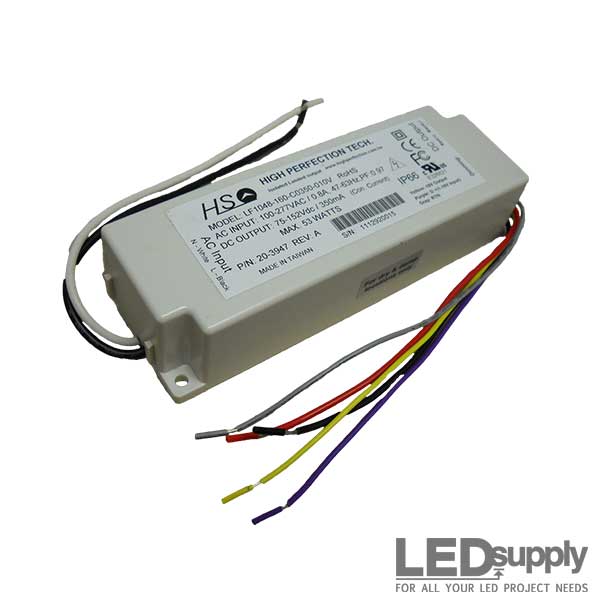

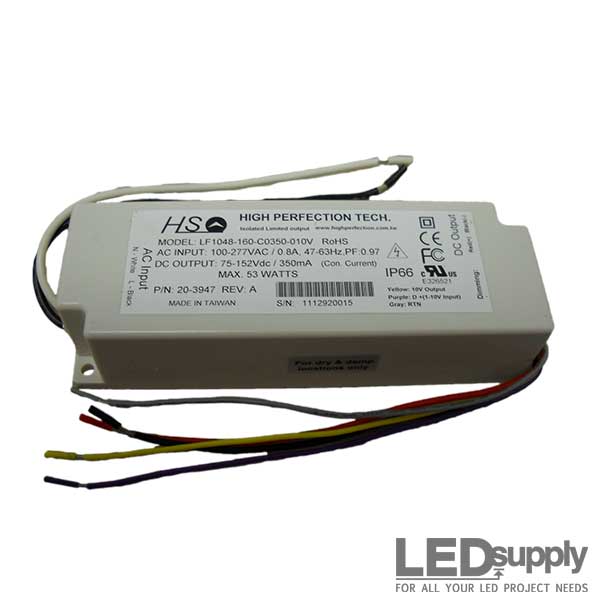

MagTech 50-Watt full range input 100-277VAC LED driver with 0-10V dimming and 350mA constant current output.

THIS OPTION IS TEMPORARILY UNAVAILABLE

Product Details

Featured Specifications

110 ~ 277VAC Input	5.43"L x 1.85"W x 1.26"H
75 ~ 152VDC Output	UL8750 Class 2, RoHS, Lead Free and CE Compliant
350mA Output Current	Short Circuit & Overload Protection - Dry & Damp Locations
53 Watts Output Power	0-10V Dimmable

Description

The MagTech® LF1048 dimmable 50-Watt 350mA output LF1048-53-0350 LED driver accepts 110~277VAC with an output voltage between 75Vdc-152Vdc. The LF1048 integrates the latest designs to provide the highest efficiency and capabilities for working with off-the-shelf 0-10V dimmers (A019 0-10V Dimmer). The driver is UL and CE compliant and very compact at 5.43"L x 1.85"W x 1.26"H.

0-10V Dimming

This driver works with 0-10V dimming, whether it be current sourcing or current sinking. Current sinking (passive) is when only low voltage from the driver is given to the dimmer, whereas current sourcing is when there is power going straight to the dimmer as well. See below on how to wire each.

Current Sourcing: Connect purple to purple & grey to grey. Cap off the yellow wire, you will not need it.
Current Sinking: Connect the yellow and purple wires to the purple wire on the dimmer, and then hook the grey wires together.

Technical Documentation

Input Voltage (VAC)	110 ~ 277VAC, Full range
Output Current (constant):	350mA
Output Voltage Range:	75 ~ 152 VDC
Output Power (W)	53W
Short Circuit Protection	Yes
Protection	Overload, OCP, OPP, SCP, OVP, OTP - Auto Recovery
Operating Temperature	-30 ~ 70 Degree C
Storage Temperature	-40 ~ 85 Degree C
Maximum Temperature @ Tc	80 Degree C
Safety Approval	UL8750 or EN61347, EN55015 and CE Certified
Dimension	5.43"L x 1.85"W x 1.26"H (LxWxH)
Dimming	AC Dimmable with 0-10V Low Voltage Dimmers
Compatible Dimmer	LUXdrive: 0A019 0-10V dimmer

Full Documentation
