The INDUS 3-Up XP-E2 combines three series-connected Cree XP-E2 white LEDs with a 20mm aluminum metal-core printed circuit board (MCPCB). Choose your white color temperature, optional HexaTherm™ pad and soldered wire leads, then pair the star with a suitable driver, heatsink and optic for spotlights, task lights, display lighting or OEM fixtures.
Choose the white appearance and Color Rendering Index (CRI) for your project. Each option is fixed white; dimming does not change its selected CCT.
Warm white
80+ CRI
Warm white
80+ CRI
Neutral white
75+ CRI
Cool white
75+ CRI
| CCT / CRI | Flux group | Calculated minimum 350mA · TJ 85°C |
Calculated output 350mA · TJ 25°C* |
Calculated minimum 700mA · TJ 85°C |
Calculated minimum 1000mA · TJ 85°C |
|---|---|---|---|---|---|
| 3000K / 80+ CRI | Q2 | 262.2 lm | 303 lm | 450 lm | 573 lm |
| 4000K / 75+ CRI | Q4 | 300 lm | 348 lm | 513 lm | 654 lm |
| 5000K / 75+ CRI | Q4 | 300 lm | 348 lm | 513 lm | 654 lm |
All totals are calculated as 3 × the original per-LED figures, not measured assembly output. The 350mA/85°C column uses the minimum flux-bin values; the 700mA and 1000mA columns use the original calculated minimum values. *25°C figures are for comparison. Actual fixture output depends on junction temperature and optical losses. The listed current flows through all three LEDs in series—it is not multiplied by three.

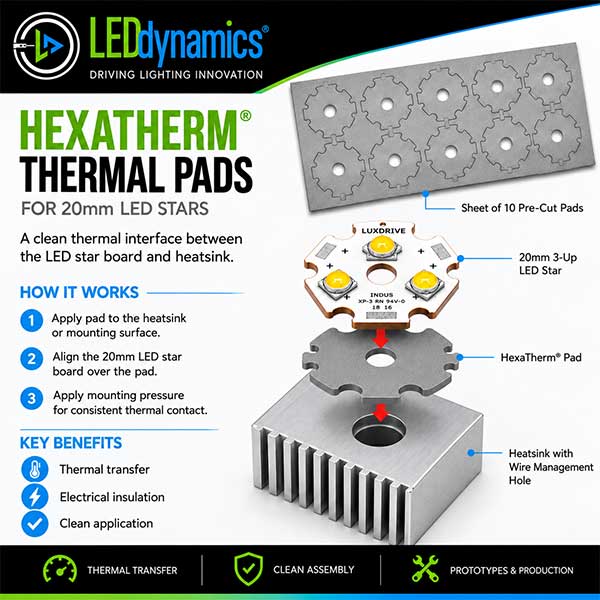

A pre-cut thermal interface for the 20mm 3-Up board, with a center opening for wire routing. Choose the pad option or use your own suitable interface.
The pad transfers heat; it does not replace a heatsink. Heatsink shown for illustration.

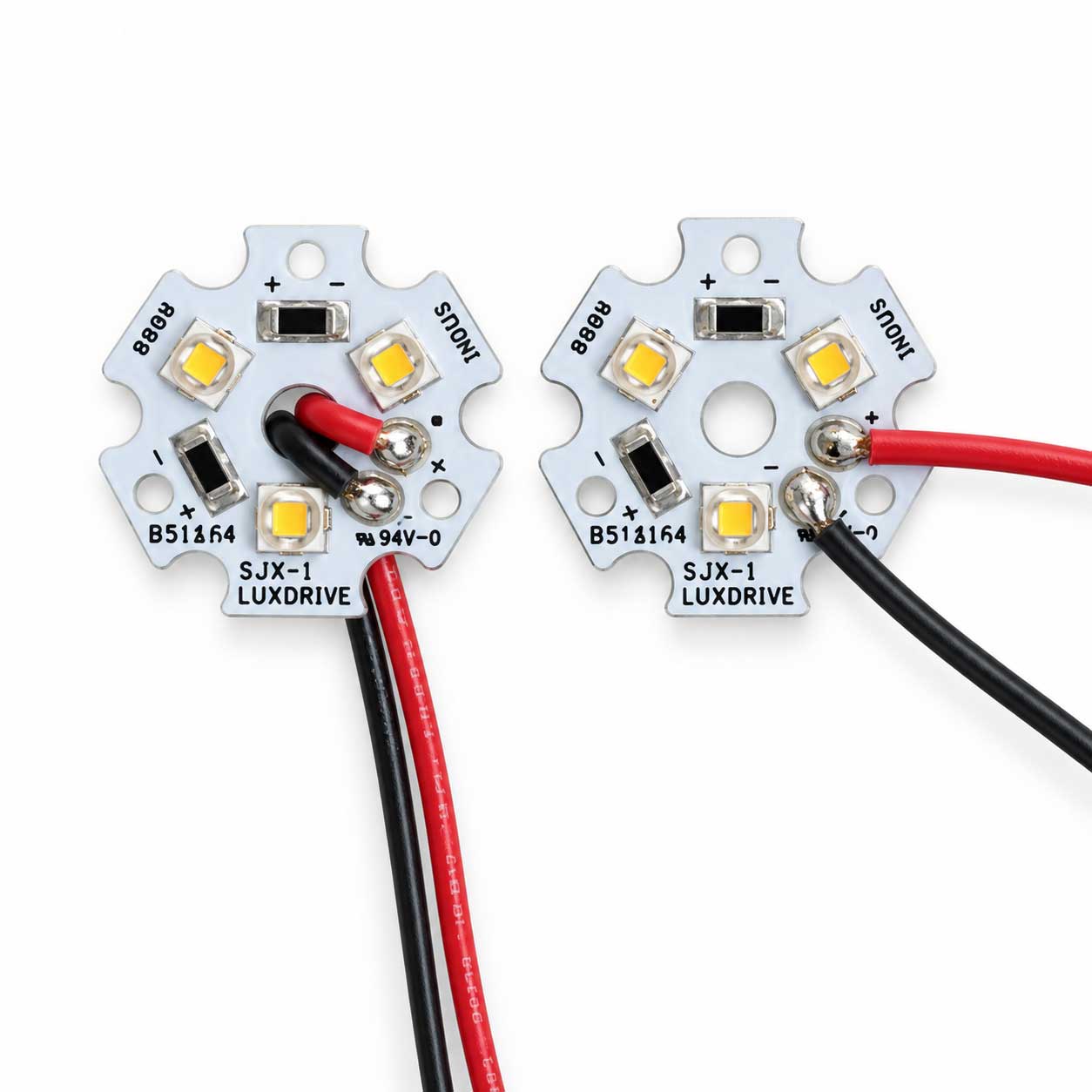

Center routing needs mounting-surface clearance. Keep wires out of the thermal contact area, protect insulation from sharp edges, observe polarity and provide strain relief.

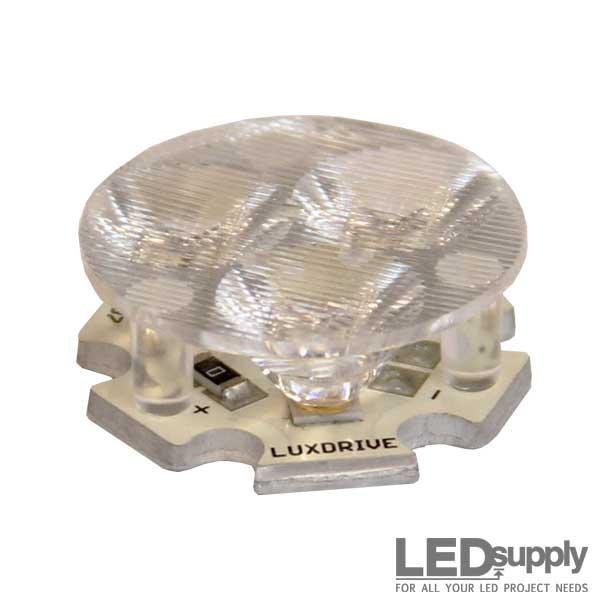

A compatible triple optic seats in the board’s mounting holes using integral legs; no separate holder is needed. Choose the beam pattern and check XP-E2 compatibility and wire clearance.
Browse 3-Up optics (sold separately). Elliptical optic shown.
| LED / board | Three Cree XLamp XP-E2 white LEDs connected in series on a 20mm aluminum MCPCB |
|---|---|
| CCT / CRI options | 2700K and 3000K: 80+ CRI 4000K and 5000K: 75+ CRI |
| Drive requirement | Regulated constant-current LED driver |
| Maximum drive current | 1000mA through the series-connected board, subject to thermal limits and adequate heatsinking |
| Forward voltage | Approximately 8.7V typical at 350mA and 85°C junction temperature, calculated as 3 × 2.9V per LED. Actual voltage varies with current and temperature. |
| Native viewing angle | 110° FWHM (full width at half maximum) per LED, before secondary optics |
| Emitter size | 3.45 × 3.45mm per LED |
| Thermal resistance | 9°C/W typical per LED, junction to solder point; not the thermal resistance of the complete 3-Up assembly |
| Maximum junction temperature | 150°C absolute maximum; not an ambient operating rating |
Driver, heatsink and optic are selected separately. The pad and wire leads are optional configurations chosen when ordering.
Tell us your target drive current, available input power, beam requirements and mounting space. Call (802) 728-6031 for help planning the assembly.
Cree XLamp XP-E2 emitter datasheet (PDF)
Emitter electrical, optical and thermal characteristics. Use the CCT/CRI choices above for the configurations offered on this page.
