Cree XLamp XP-L High Density LED Star

Cree XLamp XP-L High Density LED Star
Click to enlarge

More images

Sale Price: $6.99
Compared at: $7.69
You Save: $0.70
PART #: CREEXPL-XXX-X
Volume Discounts
PCS% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class
FREE
Priority Mail
$5.99
FedEx Ground
$7.99
UPS Ground
$8.99
FedEx Express
CALC
449PCS IN-STOCK
Add to Cart
ORDER BY 3PM EST FOR
SAME DAY SHIPPING

Product Details


Features

Maximum Power: 10W Colors: Cool-White, Neutral-White Warm-White
Max Drive Current: Up to 3 Amps (3000mA) Wide Viewing Angle: 125°
Secondary Optics: Compatible with Carclo Optics Binned: 85°C
Low Thermal Resistance: 2.2°C/W Max. Junction Temp.: 150°C
Typ. Forward Voltage: 2.95V @ 1050mA or 1.05A Max. Light Output: 1226 lm White @ 10W
Compliant: RoHS & REACH XP-L Emitter Size: 3.45mm X 3.45mm X 2.68mm




Description

Cree XLamp XP-L High Density (HD) LEDs are the best performing diode in Cree's HD class of LEDs. This emitter brings the next generation of lumen output and efficacy in the compact XP footprint (3.45mmx3.45mm). The XP-L isxpl_emitter optimized to deliver maximum lumen output in a small form factor. This enables lighting manufacturers to improve the performance of any XP based lighting design, create smaller and less expensive systems, as well as develop new lighting solutions that otherwise were not possible!

Performance Boost

This is the first LED to produce up to 200 lumens per watt at 350mA.  This breakthrough in efficacy and light output is a 50% or more increase in performance over the previous market leading XLamp XP-G2 LED.  The XP-L uses the same footprint, but increased both the light emitting surface (LES) and maximum drive current (3A) when compared to the XP-G2 LED.  The XLamp® XP-L LED, capable of just over 1,000 lumens, boasts next generation lumen output combined with the industry's highest optical control factor (OCF).

Full Review of Cree XP-L LED: "The Cree XLamp XP-L LED Review".

Cree XP-L versus the Cree XM-L: "Cree XP-L versus Cree XM-L2: What’s the Difference?".

LED Star MCPCB

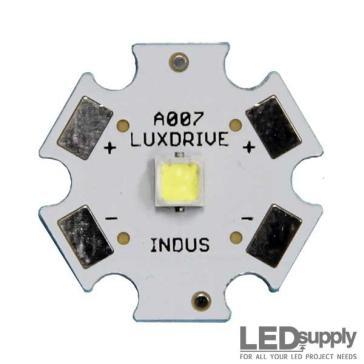

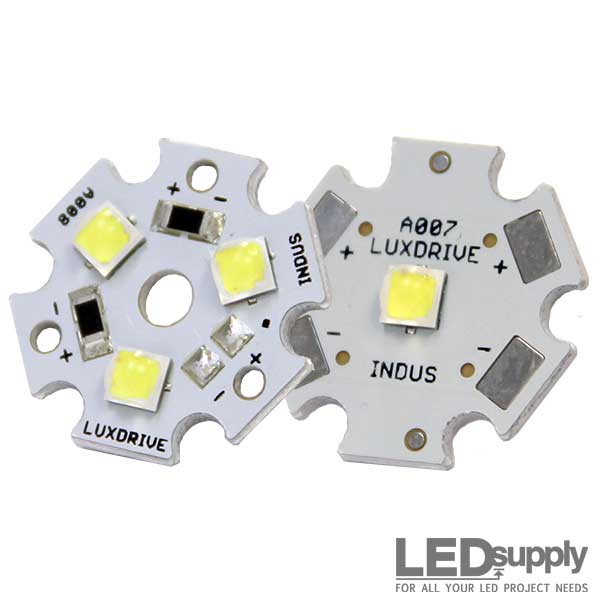

We offer the XP-L in two metal core printed circuit board (MCPCB) versions: a single (1-Up: 1 LED) and triple (3-Up: 3 LEDs). The 1- Up is a single XP-L LED reflow soldered to a 20mm hexagonal (LED Star) MCPCB. The MCPCB has four large solder pads for easy solder connections. The 3-Up is three (3) XP-L LEDs reflow soldered in-series to a 20mm hexagonal MCPCB. The 3-Up MCPCB has two solder pads for connections, mounting holes for secondary carclo optics and a center hole for wires or securing the LED star to a heat sink.

Colors

The XP-L LED is offered here in Cool-White (6500K), Neutral-White (4000K) and Warm-White (3000K).

Secondary Optics

Both versions (1-Up & 3-Up) of the XP-L are designed to work with secondary optics from Carclo; Carclo is a leader in molded poly-carbonate lens systems. The 1-Up secondary lens system combines a plastic holder and lens that sits on top of the 1-Up MCPCB, while the 3- Up optic is a one-piece system with three legs that sit down into corresponding holes on the 3-Up MCPCB. These secondary optics focus light into narrow, medium, wide and elliptical patterns. More information is available on optics that mate with the XP-L LED on this page under the Accessories tab above.

Images, Part Numbers & Notes

Select the LED options near the 'add to cart' button to see the corresponding product image and part number. For referencing detailed specifications there are tables and downloadable documentation below.  Important Note: Unless noted otherwise the specifications list are for a single XP-L LED. This means that in most cases the values need to be tripled for applications with the 3-Up version. For Example, the forward voltage listed is 2.95V @ 350mA, but for the 3-Up version the voltage would be 8.85V and the lumen output would be 1,563 lm instead of 521 lm.




Technical Documentation

FLUX CHARACTERISTICS (TJ= 85° C)

Color CCT Range Base Order Codes
Min. Luminous Flux (lm) @ 1050mA
Calculated Minimum
Luminous Flux (lm)
@ 85°C
Cree Order CodeLEDSupply Part #
Min. Typ.Max. Group Flux (lm)
@ 85°C
Flux (lm)
@ 25°C
1500mA 2000mA 3000mA1-Up3-Up
Cool White 5000 K 6500 K 8300 K V5 460 523 620 776 1034 XPLAWT-00-0000-0000V5051 CREEXPL-665-1 CREEXPL-665-3
Neutral White 3700 K 4000 K 5000 K V3 420 478 566 708 944 XPLAWT-00-0000-000LV30E5 CREEXPL-740-1 CREEXPL-740-3
Warm White 2700 K 3000 K 3500 K U6 380 432 512 641 854 XPLAWT-00-0000-000LU60E7 CREEXPL-830-1 CREEXPL-830-3



CHARACTERISTICS

Characteristics
Unit
Min.
Typical
Max.
Thermal Resistance, junction to solder point
°C/W
2.2
Viewing Angle (FWHM)
°Degree
125
Temperature coefficient of voltage Per Die
mV/°C
-2.0
ESD withstand voltage (HBM per Mil-Std-883D)
V
8000
DC Forward Current
mA
3,000
Reverse Voltage
V
-5
Forward Voltage (@ 1050 mA 85°C)
V
2.95
3.25
LED Junction Temperature
°C
150




Full Documentation
