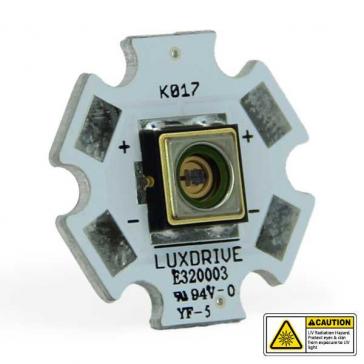

Ultraviolet (UV-C) 280nm Nichia NCSU334A LED Module
More images
Regular Price: $120.99
Sale Price: $108.89
You Save: $12.10
PART #: K017-N33428032
VOLUME DISCOUNTS
PCS
% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class > $39.99
FREE
First Class
$3.99
Ground
$11.99
2-Day
$13.99
Express
CALC
Purchase
ORDER BY 3PM EST FOR
SAME DAY SHIPPING
SAME DAY SHIPPING
- World's Leading UV-C LED
- High Output & Long Lifetime
- Great for Sterilization
Share:
 280nm Nichia NCSU334A LED Module)
Product Details
| Wavelength: 280nm | Radiant Flux: 55mW @ 350mA |
| Max Drive Current: 500mA | Viewing Angle: 120° |
| Forward Voltage: 5.2VDC @ 350mA | Lens Type: Flat |
| Compliant: RoHS & Lead Free | Max. Junction Temp.: 110°C |
Description
The new Nichia NCSU334B 280nm UV-C LED is considered the world's highest quality UV-C LED package. Nichia expects this LED, with industry leading output and lifetime, to assist in displacing mercury lamps; currently used for water purification and air sterilization.
Nichia has been able to exceed where others have struggled by leveraging their crystal growth technology; learned from their many years manufacturing UV-A LEDs. The unique crystal growth technology gives this LED a significant boost in lifetime and radiant flux. Additionally, the LED uses a newly developed hermetically-sealed package, making it reliable when used in various harsh environments.
Wavelengths
The deep ultraviolet UV-C LED is 280nm wavelength. UV-C is DANGEROUS. Use EXTREME CAUTION - Protect eyes and skin from exposure.
Technical Documentation
RADIOMETRIC POWER AND FORWARD VOLTAGE (TJ= 25° C)
| Part Number |
Wavelength | Performance at Test Current (350mA) | Performance at 500mA | ||||
|---|---|---|---|---|---|---|---|
| Bin | Radiometric Flux (mW) |
Vf | Radiometric Flux (mW) |
||||
| Min. | Max. | Min. | Max. | ||||
| NCSU334B K017-N33428032 |
(280nm) | TBD | 54.4 | 64.6 | 4.5 | 6.0 | 77 |
CHARACTERISTICS - Absolute Maximum Ratings (TJ= 25° C)
Characteristics
Rating
DC Forward Current mA
500mA
LED Junction Temperature
110° C
LED Operating Temperature
-10° C ~ 85° C
Storage Temperature
-40° C ~ 100° C
Thermal Resistance (J to S)
9.9
Power Dissipation
3.16W
Full Documentation
Nichia NCSU334A DocumentationAccessories
Accessories for UV-C LED

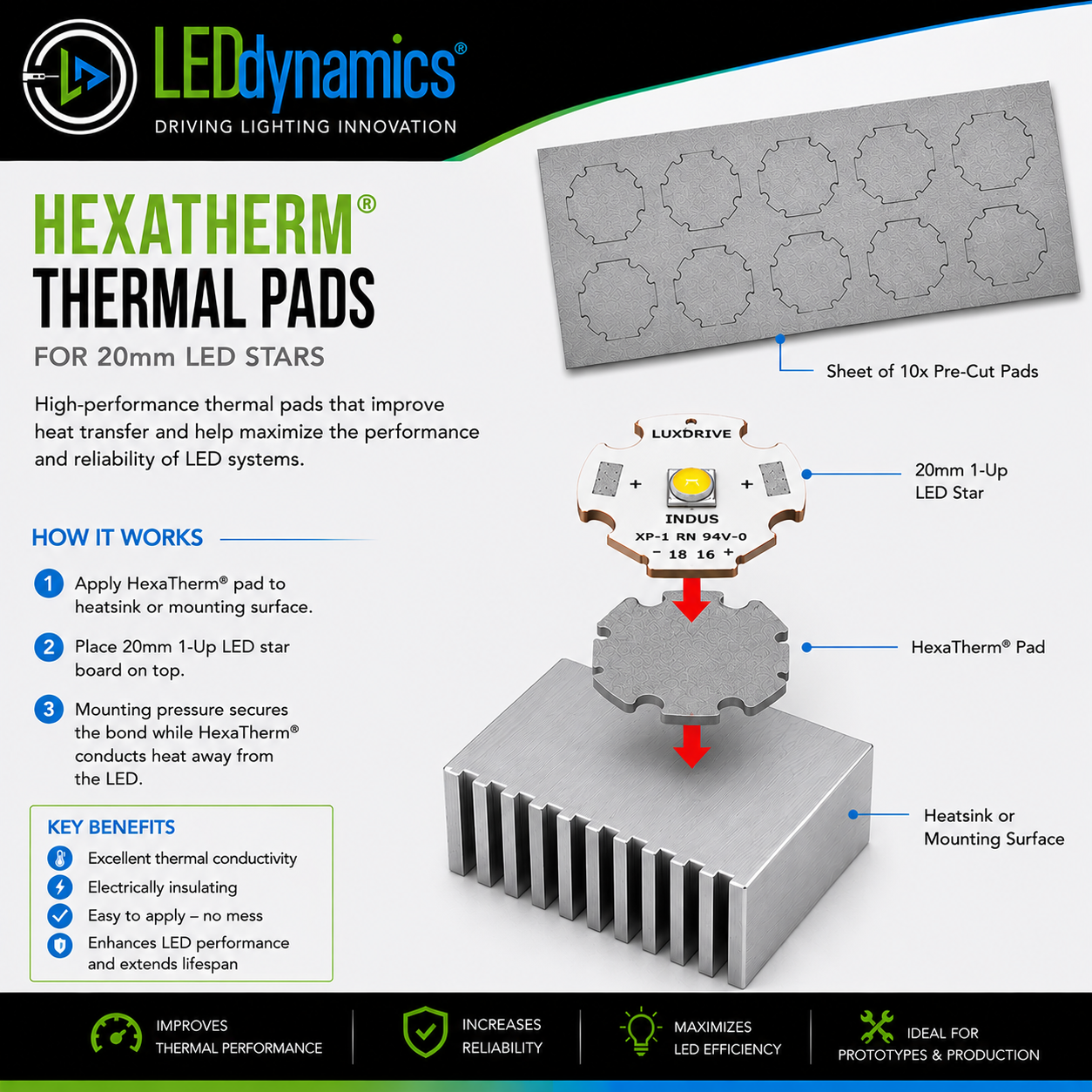

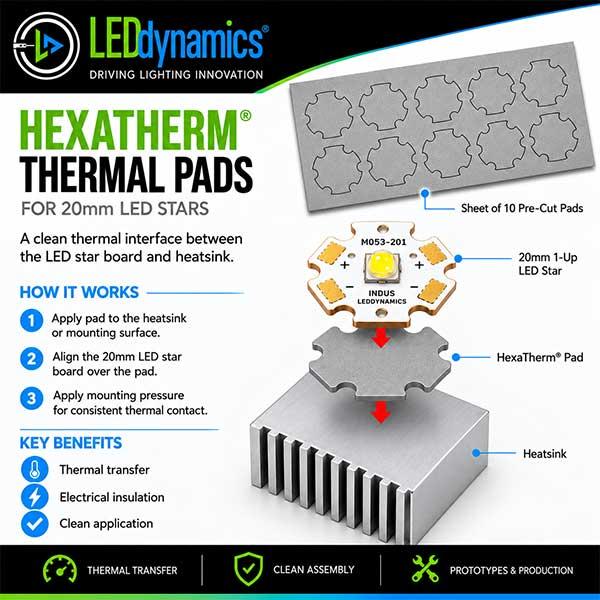

HexaTherm Tape - Thermally Conductive Double-Side Tape
Electrically isolated thermal tape in a hexagonal shape to fit star LEDs
PART #: A001
$10.11
Sale Price: $9.10
BuckToot DC LED Driver
Extremely small low voltage DC input (5-28Vdc) 7027 series LED driver from LUXdrive™ for powering high-brightness LED(s) or LED arrays.
PART #: 07027-D-xxx
$13.27
Sale Price: $11.94
×
