Half-Brick Heatsink - Black Powder Coated Finish with Screws

More images

Half-Brick Heatsink - Black Powder Coated Finish with Screws

Regular Price: $3.84

Sale Price: $3.49

You Save: $0.35

PART #: 102-1488

VOLUME DISCOUNTS

PCS

% OFF

10 - 49

50 - 99

7.5%

100 - 249

15%

250 - 499

20%

*Shipping Information

First Class > $39.99

FREE

First Class

$3.99

Ground

$11.99

2-Day

$13.99

Express

CALC

Purchase

ORDER BY 3PM EST FOR
SAME DAY SHIPPING

Ideal Heatsink Power: 6-7 Watts
2.402" (L) X 2.264" (W) X .45" (H)
Finned design aids in passive cooling

THIS OPTION IS TEMPORARILY UNAVAILABLE

Product Details

Material: Black Anodized Aluminum Heatsink	Dimensions: 2.402" (L) X 2.264" (W) X .45" (H)
Max Power: 6 to 7-Watts	Shape: Square & Finned
Lead Free & ROHS Compliant	Attachment: Bolt on
Great Thermal Resistance: Low as 2.5°C/W	Max. Junction Temp.: 150°C
Compliant: RoHS	XM Emitter Size: 5mm X 5mm

Description

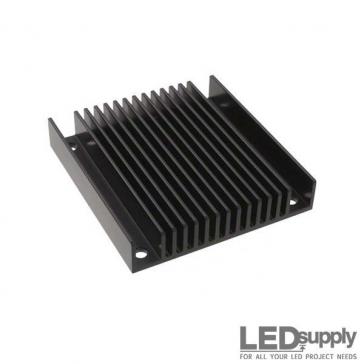

The 102-1488 Black Anodized Shallow Half-Brick Heatsink is a square LED heatsink with fins on the bottom for increased thermal control. The fins add to the surface area of the heatsink while allowing air to flow in between, therefore cooling the heatsink more by natural airflow. All you need to do is use a thermal epoxy to adhere the star to the flat surface. For mounting there are bolt holes on all four corners so that you can easily mount wherever you need.

Technical Documentation

MODEL No.	102-1488
SIZE	2.402" (61mm) (L) X 2.264" (57.5mm) (W) X .45" (11.43mm) (H)
MATERIAL	Aluminum
FINISH	Black Anodized
THERMAL RESISTANCE W/ COOLING	4.6°C/W @ 200LFM
NATURAL THERMAL RESISTANCE	10.3°C/W
WEIGHT	1.6oz

Questions

Browse 2 questions and 2 answers.
