10196 Carclo Lens - Frosted Wide Spot LED Optic

10196 Carclo Lens - Frosted Wide Spot LED Optic
Click to enlarge

More images

Sale Price: $1.25
Compared at: $1.38
You Save: $0.13
PART #: 10196
Volume Discounts
PCS% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class
FREE
Priority Mail
$5.99
FedEx Ground
$7.99
UPS Ground
$8.99
FedEx Express
CALC
330PCS IN-STOCK
Add to Cart
ORDER BY 3PM EST FOR
SAME DAY SHIPPING

Product Details


Featured Specifications

31.5° Illumination Pattern- XPE 1.4 Cd/lm - MCE
78.1% EFF - XPE Heat Resistant Polycarbonate
2.46 Cd/lm - XPE 35° Illumination Pattern - EndorStar
Fits 10736, 10732 & 10425 Carclo Lens Holder 74% EFF - EndorStar
45° Illumination Pattern- MCE 2.0 Cd/lm - EndorStar
70% EFF - MCE Prevent Contact with Solvents or Vapor




Description

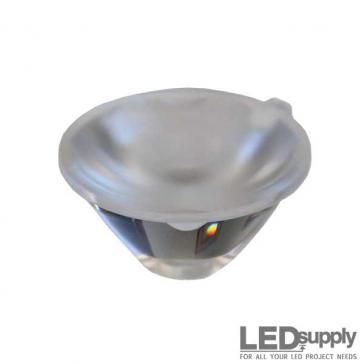

The Carclo #10196 is a frosted 20mm diameter secondary optic manufactured in lens quality poly-carbonate and designed to collimate LED light into a wide spot pattern. The #10196 optic is tough, impact resistant, UL rated and can withstand higher temperatures than acrylic optics. The tab on the outside edge of the optic secures the optic into a 20mm optic holder (shown in the above image). Compatibility with LEDs is shown in the technical documentation and featured specifications (specifications will vary depending on which LED the optic is used with).




Technical Documentation

Characteristics:
MFG LED Eff. FWHM Cd/lm
CREE CreeXLampMC-EWhite 70 45 1.4
CREE Cree XLamp XM-L White 39.2 1.5
CREE CreeXLampXP-EWhite 78.1 31.5 2.5
LG LG 3535 White 35.4 2.4
LUXEON LumiledsLuxeonRWhite 76 33.6 2.5
LUXEON LumiledsLuxeonRebelESWhite 8 76 33.6 2.5
LUXEON LumiledsLuxeonRebelWhite 74 35 2
LUXEON LumiledsLuxeonT White 76 33.7 2.5
LUXEON LumiledsLuxeonZ RGBW 78 34 2.4
NICHIA NichiaTop Emitting083 White 75.6 37.4 1.7
NICHIA NichiaTopEmittingNFSW036 White 79.4 32.8 2.2
NICHIA NichiaTopEmittingNS3W183T White 80.9 37 1.9
OSRAM OsramDragonGoldenDragon W5SMWhite 84 32 2.3
OSRAM OsramDragonPlatinumDragon W5SNWhite 85 31.7 2.3
Samsung SamsungWH5White 79.5 42.5 1.5
SEOUL SSCAcrichA2000White 74.5 35.8 1.9
SEOUL SSCP5-IIRGB 77.3 36.1 1.6
STANLEY Stanley6JWhite 34.8 2.4

Notes for Table

  • Eff.: At Carclo Optics this is determined by measuring the ratio of the light collected after the Optic output face (excluding scattered light) and dividing this by all the light collected from the LED alone.
  • FWHM: Beam angle is typically expressed as the Full Width in degrees at Half Maximum intensity (FWHM); A measure of the width of a distribution defined as the separation of the data points on either side of the peak which have values equal to 50% of the maximum. For intensity distributions this is the angular range at which the intensity falls to half its maximum value.
  • Cd/lm: The SI base unit of luminous intensity which is the power emitted by a light source in a particular direction, weighted by the sensitivity of the human eye.
  • TIR (Total Internal Reflection) Optic: When light passes from a high refractive-index medium (such as glass) to a low refractive-index medium (such as air) there is a special angle, known as the critical angle, above which light is 100% reflected. Any light rays that fall within the critical-angle undergo total internal reflection. Carclo TIR optics use this principle to produce highly efficient optics with a huge variety of beam shapes.
  •


    Important Information

    20mm TIR Optics The most common size of TIR optic as these produce a range of beam angles from relatively tight to wide. There are also two reflectors within our 20mm range that take the beam even wider â€" therefore, you can design your fixture around this family of optics and select what beam is required as you build.




    Full Documentation

    Full Documentation
