15W Phihong 350mA Constant Current AC Driver

15W Phihong 350mA AC Driver | PDA015B

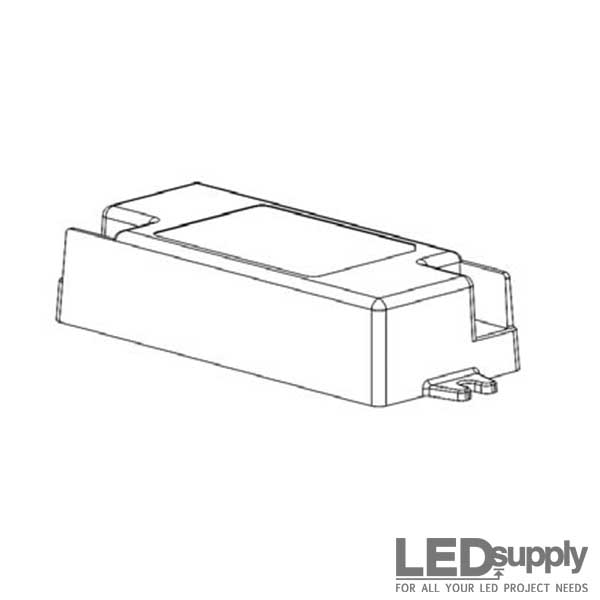

Click to enlarge

More images

Sale Price: $16.99
Compared at: $18.69
You Save: $1.70
PART #: PDA015B-350C
Volume Discounts
PCS% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class
FREE
Priority Mail
$5.99
FedEx Ground
$7.99
UPS Ground
$8.99
FedEx Express
CALC
94PCS IN-STOCK
Add to Cart
ORDER BY 3PM EST FOR
SAME DAY SHIPPING

Product Details


Features

INPUT POWER: 90 ~ 132Vac OUTPUT VOLTAGE: 17.5 - 42Vdc
WATTS: 15W DIMENSIONS: 5.2” L x 1.6” W x 0.80” H
OUTPUT CURRENT: 350mA CONNECTIONS: Terminal blocks (solid/stranded wire)
WARRANTY: 3-Years SAFETY: OVP, OCP, Short/Open Circuit Protection
CERTIFIED: UL Certified, IP20 MOUNTING: Mounting Holes (Screws)




Description

This Phihong PDA015B-350C 15 Watt LED driver is great for indoor and architectural lighting. With a wide output range from 17.5V – 42VDC, this driver can handle a wide range of LEDs and quantities. This driver will power a total of 15 watts at a constant current of 350mA. Input and output connections can be made via the terminal blocks on either side and there are mounting holes on either side so you can easily mount this driver wherever you need with a couple screws.

Added Protection

  • Input Over Current Protection: The input power line will be fused with a 1.6A fuse
  • Short Circuit Protection: This LED driver will withstand a short circuit across the outputs without internal damage!
  • Output Over Voltage Protection: The output shall be protected (latched) from over voltage
  • Open Circuit Protection: If circuit is open, output will not be damaged at nominal AC input




Technical Documentation

Output Specifications

Model AC Input
Voltage Range
DC Output
Voltage Range
Output
Current
Ripple
Output Current Range Max
Power
Min.Max.Min.Max.Min. Typ.Max.
PDA015B-350C 90 132 17.5 42 <1A 300mA 350mA 400mA 16.8W



Characteristics

Characteristics
Unit
Typical
Leakage Current
mA
<0.5mA at 110Vac and maximum load
Maximum Input Current
mA
<0.3A at full load, 100Vac
Weight
grams
120
Efficiency
%
82% minimum at nominal input voltage, full load
Turn-on/Turn off delay time
Seconds
0.5ms maximum
Operating Temperature
°C
-20 to +50
Storage  Temperature
°C
-40 to +85
Dimensions
mm/inch
(L) 132mm (5.2in) X (W) 40mm (1.60in) X (H) 21mm (0.80in)
Warranty
Yrs
3
