MagTech - 9-Watt 700mA Constant Current LED Driver

More images

MagTech - 9-Watt 700mA Constant Current LED Driver

Regular Price: $18.69

Sale Price: $16.99

You Save: $1.70

PART #: LD-CU7021AF

VOLUME DISCOUNTS

PCS

% OFF

10 - 49

50 - 99

7.5%

100 - 249

15%

250 - 499

20%

*Shipping Information

First Class > $39.99

FREE

First Class

$3.99

Ground

$11.99

2-Day

$13.99

Express

CALC

Purchase

147 PCS IN-STOCK

QTY

ORDER BY 3PM EST FOR
SAME DAY SHIPPING

AC Input Constant Current Driver
Sleek Design: 2.56"L x 1.38"W x 0.90"H
Replacement for Part# MD:LED-D35-2

THIS OPTION IS TEMPORARILY UNAVAILABLE

Product Details

Input: 100 ~ 250V_AC	Dimensions: 2.56"L x 1.38"W x 0.90"H
Output: 3 ~ 12V_DC	Certifications: UL and CE Certified
Output Current: 700mA	Safety: Short Circuit & Overload Protection
Power: 9-Watts	See Documentation for More Info

Description

The MagTech® LD-CU7021AF 9-Watt LED Driver accepts 100~250Vac, and outputs a constant 700mA current with a varying DC voltage between 3-12Vdc. The driver is UL and CE certified and very compact at 2.56"L x 1.38"W x 0.90"H.

For customers looking to replace their MD:LED-D35-2 LED driver, this MagTech LD-CU7021AF is a perfect replacement. For additional information please see the Frequently Asked Questions (FAQ) section below or this post here.

Technical Documentation

**Specifications:**
Input Voltage (VAC	100 ~ 250VAC, Full range
Output Current (constant):	700mA
Output Voltage Range:	3 ~ 12 VDC
Output Power (W)	12W
Short Circuit Protection	Yes
Overload Protection	Yes

**Electrical Specifications:**
Input Voltage (VAC	100 ~ 250VAC
Input Frequency (Hz)	50/60 Hz
Output Voltage (VDC)	3-12 VDC
Output Current (Constant)	700mA
Output Power (W)	9W
Short Circuit Protection	Yes
Overload Protection	Yes
Ambient Temperature	-20 ~ 60 Degree C
Storage Temperature	-20 ~ 80 Degree C
Maximum Temperature @ Tc	70 Degree C
Safety Approval	UL and CE Certified
Dimension	2.56" x 1.38" x 0.90" (LxWxH)
Weight	55g

Full Documentation

Documentation

FAQ

Frequently Asked Questions

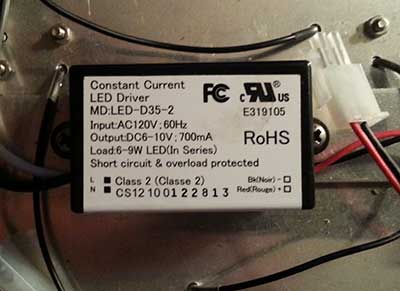

Q: Quick question on an LED Driver replacement. I have an outdoor light post that has three lamps, each lamp has 3 led's with the led driver (MD: LED-D35-2) pictured right powering them. I need a replacement and am wondering if your part number LD-CU7021AF is a suitable replacement, or if you recommend something else.

A: The MagTech LD-CU7021AF would be my recommended replacement for the driver you have. We get a lot of requests for replacements for that driver and our other customers have been very happy with the MagTech driver. Here are the specs of both drivers for comparison:

MD:LED-D35-2

Input Voltage: 120Vac

Output Voltage: 6-10Vdc

Output Current: 700mA

Wattage Load : 6-9W

LD-CU7021AF

Input Voltage: 120-250Vac

Output Voltage: 3-21Vdc

Output Current: 700mA

Wattage Load : 9W

Q: Hi, I am replacing the MD: LED-D35-2 with the LD-CU7021AF and the wires are different colors. Can you please tell me how to connect this new driver to my lamp?

A: The red and black wires match and will be connected the same way (output to the LED). However, the old (defective) driver has a white (N) and black (L) wire on the the input side that match up respectively with the blue (N) and brown (L) wires on the new driver. The sticker on the new driver can be easily confused, so please follow these instructions. They are correct.

	OLD Driver (MD: LED-D35-2)	New Driver (LD-CU7021AF)
Output + to LED	Red	Red
Output - to LED	Black	Black
Input L to Driver	Black	Brown
Input N to Driver	White	Blue
