MakersLED SLIM Heat Sink Fan
More images
- 12VDC Cooling Fan
- Made to mount on top of MakersSLIM
- 4800 RPM
FOR SAME DAY SHIPPING
Purchase
| SHIPPING | |
| 1st Class | FREE* |
| 1st Class | $5.99 |
| Ground | $11.99 |
| 2-Day | $15.99 |
| Express | CALC |
| DISCOUNTS | |
| QTY | % OFF |
| 10 - 49 | 2.5% |
| 50 - 99 | 5% |
| 100 - 249 | 7.5% |
| 250-499 | 10% |
* With orders > $49.99 and under 13oz. CLICK HERE for details.
Product Details
| OPERATING VOLTAGE: 12Vdc | RPM: 4800 |
| CURRENT: 0.10A | OUTER DIMMENSIONS: 120mm (L) 83mm (D) |
| BEARING: Sleeve Bearing | MOUNTING HOLES: 107mm (center to center) |
| CONNECTION: 12-Inch Wire Leads | WIRE: UL Listed 26 Gauge |
| AIR FLOW: Blows Aire Downward into Heat Sink Fins | COMPLIANCE: CE Safety, RoHS |
Description
Here is the perfecet cooling fan to incorporated into with the MakersHEATSINK SLIM; it will help keep your LEDs bright by providing active air movement. Rated for 12Vdc this fans can integrate seamlessly with the power from the MakersDRIVER or it can be powered directly from 12Vdc. The mounting hardware is included that allows the unit to secure with the fins of the heat sink.
Stagnant air that heats up around LEDs is a common problem, which causes overheating, fast degradation and lower lumen output. This fan can be the difference from running 40-watts of LEDs to 100-watts of LEDs.

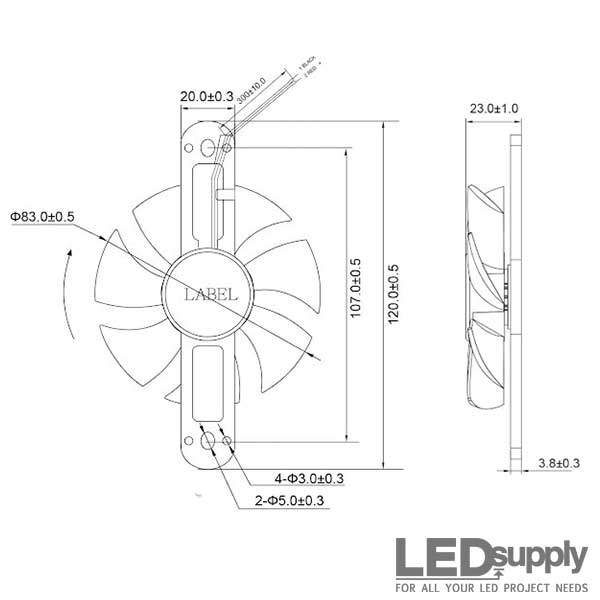

Technical Documentation
CHARACTERISTICS (T= 25° C)
| Part # | Dimensions (mm) | Rated Voltage (Vdc) |
Input Power (Watt) |
Fan Speed (RPM) |
Noise (dBA) |
Air Flow (CFM) |
||
|---|---|---|---|---|---|---|---|---|
| D | W | H | ||||||
| MAKERSSLIMFAN | 83mm | 120mm | 23mm | 12 | 1.20 | 2,000 | 23.7 | 38.3 |
CHARACTERISTICS
Full Documentation
