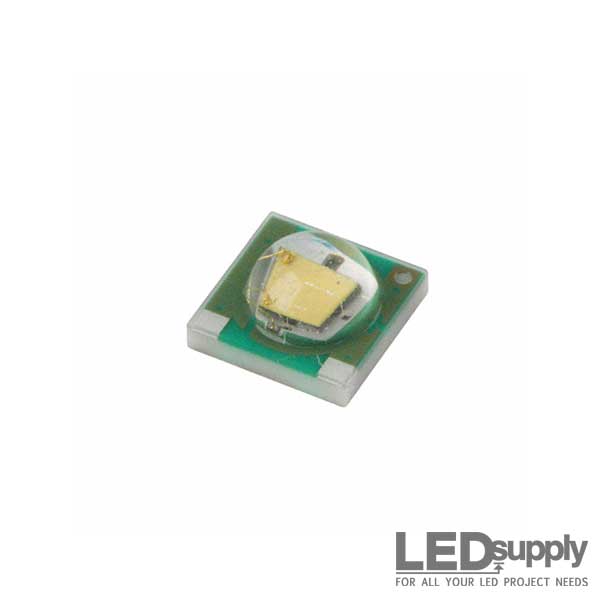

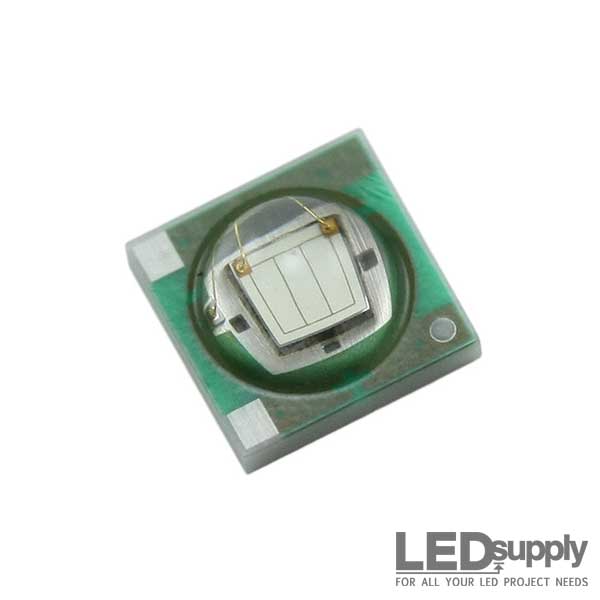

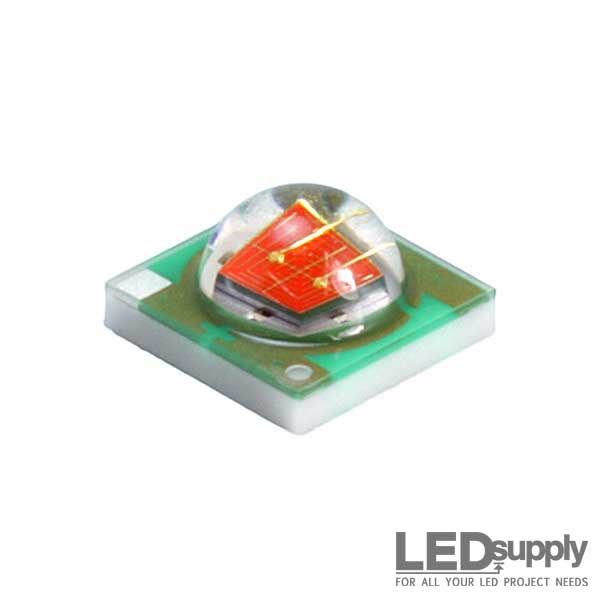

XP-E Emitters

XP-E Emitters
Click to enlarge

More images

Sale Price: $2.50
Compared at: $2.75
You Save: $0.25
PART #: XPEXXX-L1
Volume Discounts
PCS% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class
FREE
Priority Mail
$5.99
FedEx Ground
$7.99
UPS Ground
$8.99
FedEx Express
CALC
5452PCS IN-STOCK
Add to Cart
ORDER BY 3PM EST FOR
SAME DAY SHIPPING

Product Details


Features

XP-E Emitter: 80% Smaller Foot-print then XR-E Binning: Standard & ANSI
Max Drive Current: Up to 1000mA Wide Viewing Angle: 115° to 130°
Size: 3.45mm X 3.45mm X 2.00mm Colors: Color & White
Thermal Resistance: Low as 9°C/W Max. Junction Temp.: 150°C




Description

Cree XLamp® XP-E Emitters build and improve on the reliable technology from the XR-E line. Cree reduced the space between the LED die by 75%, packaged it inside an 80 percent smaller footprint and the benefit is 69% more lumen output compared to the XR-E line.

PRODUCTION LIMITED: The XP-E has limited availability. It has been replaced by and large with the newer XP-E2, however we still have a few options available and continue to list these items for your reference. Links to the XP-E2 emitters are included within the specifications below.




Technical Documentation

Color
CCT Wavelength Min./Typ./Max.
Group
Min. Flux
Order Code
Part #
Cool White
5,000K/5,000K/10,000K
Q4
100
XPEWHT-L1-0000-00CE3
XPEWHT-Q4-5000
Neutral White
3,700K/4,000K/5,300K
Q5
107
XPEWHT-L1-0000-00DE4
XPEWHT-Q5-4000
Warm White
2,600K/3,000K/3,700K
Q2
87.4
XPEWHT-L1-0000-00AE7
XPEWHT-Q2-3000
Warm White
2,600K/3,000K/3,700K
Q2
87.4
XPEWHT-L1-0000-00AE7
XPEWHT-Q2-2700
Royal Blue
450nm/465nm
15
425mW
XPEROY-L1-0000-00A01
XPEROY-L1
Blue
465nm/485nm
J
23.5
XPEBLU-L1-0000-00W01
XPEBLU-L1
Green
520nm/535nm
Q4
100
XPEGRN-L1-0000-00C01
XPEGRN-L1
Amber
585nm/595nm
N4
62
XPEAMB-L1-0000-00601
XPEAMB-L1
Red
620nm/630nm
N3
56.8
XPERED-L1-0000-00501
XPERED-L1
Photo Red
650nm/670nm
13
300mW
XPEPHR-L1-0000-00801
XPEPHR-L1
Far Red
720nm/740nm
11
210mW
XPEFAR-L1-0000-00601
XPEFAR-L1



Characteristics
Unit
Min.
Typical
Max.
Thermal Resistance, junction to solder point - white, royal blue, blue
°C/W
9
Thermal Resistance, junction to solder point - green
°C/W
15
Thermal Resistance, junction to solder point - amber
°C/W
10
Thermal Resistance, junction to solder point - red, red-orange, photo red, far red
°C/W
8
Viewing Angle (FWHM) - white
°Degree
115
Viewing Angle (FWHM) - royal blue, blue, green, red, red-orange, amber, photo red, far red
°Degree
130
Temperature coefficient of voltage - white
mV/°C
-4.0
Temperature coefficient of voltage - royal blue, blue
mV/°C
-3.3
Temperature coefficient of voltage - green
mV/°C
-3.8
Temperature coefficient of voltage - red-orange, red
mV/°C
-1.8
Max.
Temperature coefficient of voltage - amber
mV/°C
-1.2
Temperature coefficient of voltage - photo red
mV/°C
-3.0
Temperature coefficient of voltage - Far Red
mV/°C
-1.0
ESD Withstand Voltage (HBM per Mil-Std-883D) white, royal-blue, blue, green
V
8000
ESD Classification (HBM per Mil-Std-883D) amber, red-orange, red, photo red, far red
Class 2
DC Forward Current - white, royal blue, blue, green, photo red, far red
mA
1000
DC Forward Current - red-orange, red
mA
700
DC Forward Current - amber
mA
500mA
Reverse Voltage
V
5
Forward Voltage (@ 350 mA) - royal blue, blue, white
V
3.2
3.9
Forward voltage (@ 350 mA) - green
V
3.4
3.9
Forward voltage (@ 350 mA) - red-orange, red, amber, photo red
V
2.1
2.5
Forward voltage (@ 350 mA) - far red
V
1.9
2.4
Forward voltage (@ 500 mA) - amber
V
2.3
Forward voltage (@ 700 mA) - white
V
3.4
Forward voltage (@ 700 mA) - red-orange, red, photo red
V
2.3
Forward voltage (@ 700 mA) - far red
V
2.1
Forward Voltage (@ 1000 mA) - green
V
3.8
Forward Voltage (@ 1000 mA) - white, royal blue, blue
V
3.5
Forward Voltage (@ 1000 mA) - photo red
V
2.5
Forward Voltage (@ 1000 mA) - far red
V
2.25
LED Junction Temperature
°C
150




Full Documentation
