10193 Carclo Lens - Plain Tight Spot LED Optic

10193 Carclo Lens - Plain Tight Spot LED Optic
Click to enlarge

More images

Sale Price: $1.25
Compared at: $1.38
You Save: $0.13
PART #: 10193
Volume Discounts
PCS% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class
FREE
Priority Mail
$5.99
FedEx Ground
$7.99
UPS Ground
$8.99
FedEx Express
CALC
394PCS IN-STOCK
Add to Cart
ORDER BY 3PM EST FOR
SAME DAY SHIPPING

Product Details


Featured Specifications

8.2° Illumination Pattern - XPE 5.8 Cd/lm - MCE
87.3% EFF - XPE Heat Resistant Polycarbonate
36.3 Cd/lm - XPE 8.7° - EndorStar
Fits 10736, 10732 & 10425 Carclo Lens Holder 86% EFF - EndorStar
20° - MCE 24 Cd/lm - EndorStar
84.5% EFF - MCE Prevent Contact with Solvents or Vapor




Description

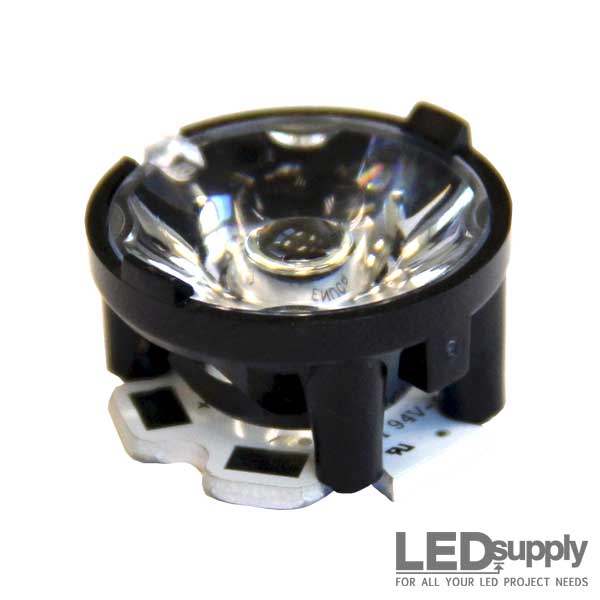

The Carclo #10193 is a 20mm diameter secondary optic manufactured in lens quality poly-carbonate and designed to collimate LED light into a narrow spot pattern. The #10193 optic is tough, impact resistant, UL rated and can withstand higher temperatures than acrylic optics. The tab on the outside edge of the optic secures the optic into a 20mm optic holder (shown in the above image). Compatibility with LEDs is shown in the technical documentation and featured specifications (specifications will vary depending on which LED the optic is used with).




Technical Documentation

Characteristics:
MFG LED Eff. FWHM Cd/lm
CREE CreeXLampMC-EWhite 84.5 20 5.8
CREE Cree XLamp XM-L White 16.2 10.1
CREE CreeXLampXP-EWhite 87.3 8.2 36.3
LG LG 3535 White 11.3 21.1
LUXEON LumiledsLuxeonRWhite 85.6 12.3 18.2
LUXEON LumiledsLuxeonRebelESWhite 8 85.6 12.3 18.2
LUXEON LumiledsLuxeonRebelWhite 87.1 8.6 32.5
LUXEON LumiledsLuxeonT White 85.6 12.3 18.2
NICHIA NichiaTop Emitting083 White 86.9 10.3 12.1
NICHIA NichiaTopEmittingNFSW036 White 88.6 5.1 41.4
NICHIA NichiaTopEmittingNS3W183T White 89.3 9.1 23.1
OSRAM OsramDragonGoldenDragon W5SMWhite 90 5.4 30
OSRAM OsramDragonPlatinumDragon W5SNWhite 86 5.9 36
Samsung SamsungWH5White 88.3 11.9 9.9
SEOUL SSCAcrichA2000White 87.5 20.7 5.9

Notes for Table

  • Eff.: At Carclo Optics this is determined by measuring the ratio of the light collected after the Optic output face (excluding scattered light) and dividing this by all the light collected from the LED alone.
  • FWHM: Beam angle is typically expressed as the Full Width in degrees at Half Maximum intensity (FWHM); A measure of the width of a distribution defined as the separation of the data points on either side of the peak which have values equal to 50% of the maximum. For intensity distributions this is the angular range at which the intensity falls to half its maximum value.
  • Cd/lm: The SI base unit of luminous intensity which is the power emitted by a light source in a particular direction, weighted by the sensitivity of the human eye.
  • TIR (Total Internal Reflection) Optic: When light passes from a high refractive-index medium (such as glass) to a low refractive-index medium (such as air) there is a special angle, known as the critical angle, above which light is 100% reflected. Any light rays that fall within the critical-angle undergo total internal reflection. Carclo TIR optics use this principle to produce highly efficient optics with a huge variety of beam shapes.
  •


    Important Information

    20mm TIR Optics The most common size of TIR optic as these produce a range of beam angles from relatively tight to wide. There are also two reflectors within our 20mm range that take the beam even wider â€" therefore, you can design your fixture around this family of optics and select what beam is required as you build.
