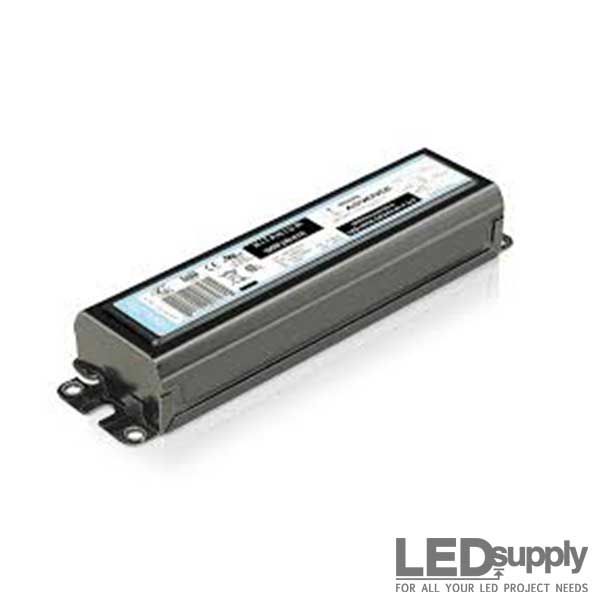

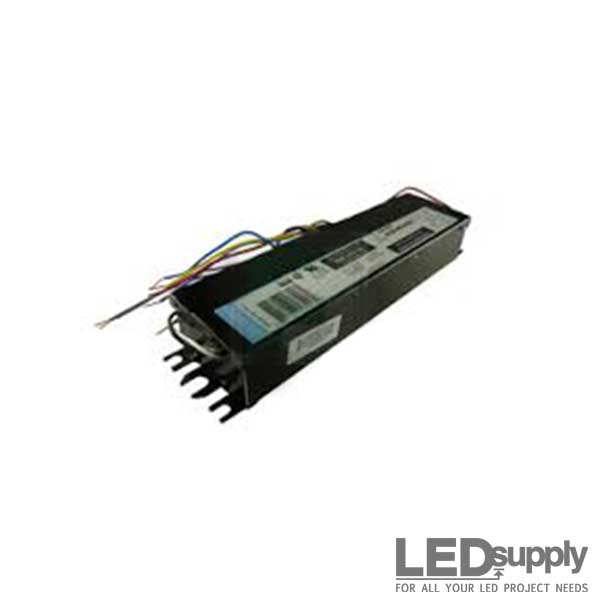

Xitanium 95W LED Electronic Driver with 0-10V Dimming

Xitanium 95W LED Electronic Driver with 0-10V Dimming
Click to enlarge

More images

Sale Price: $24.99
Compared at: $27.49
You Save: $2.50
PART #: XI095C275V054DNF1
Volume Discounts
PCS% OFF
10 - 49
5%
50 - 99
7.5%
100 - 249
15%
250 - 499
20%
First Class
FREE
Priority Mail
$5.99
FedEx Ground
$7.99
UPS Ground
$8.99
FedEx Express
CALC
52PCS IN-STOCK
Add to Cart
ORDER BY 3PM EST FOR
SAME DAY SHIPPING

Product Details


Featured Specifications

Adjustable Output Current (mA): 1000mA - 2750mA Input Voltage Range (DC): 120-277VAC
Output Voltage Range (DC): 27-54VDC Compliant: RoHS, SA, UL Class 2
Dimming: 0-10V Connection Type: 18AWG 105C/600V Solid Copper

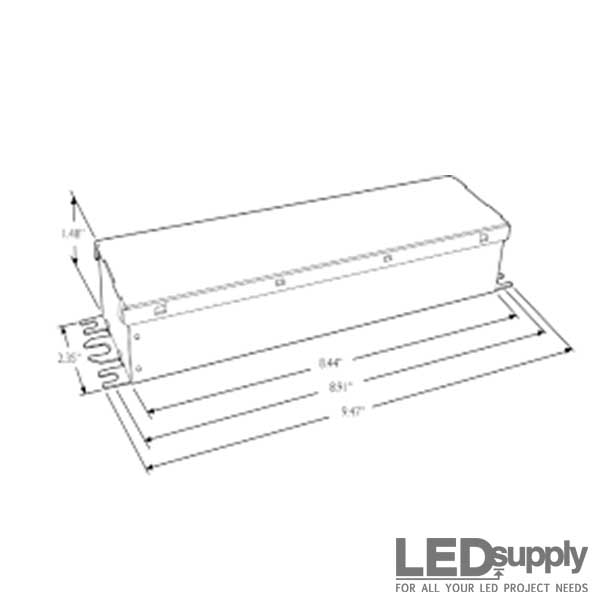

Protection: Short Circuit & Open Circuit for LED +- Form Factor: 8.44"(L) X 2.35"(W) X 1.48"(H)




Description

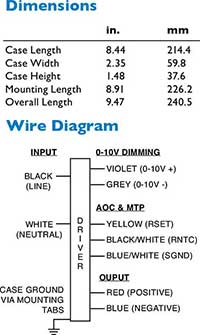

dimensions & wiring diagram



This ballast style Xitanium LED driver is capable of running 95 Watts of LEDs at varying constant current outputs via the Adjustable Output Current (AOC).  In addition to the flexibility of being able to adjust the output current, this driver includes the option for 0-10V dimming.  The unit is UL Class 2 output and is housed in a casing capable of 90 degree Celcius.   These features provide benefits that allow luminaire designs for higher ambient temperatures (High-Bay), the flexibility of design via the adjustable drive current and the dimming feature can help maximize energy savings and allow for specific light levels.

AOC

Adjustable Output Current is a feature that allows the user to easily change the current output of the unit (see chart in documentation).  If the Rset is left open (no external resistor) then the driver will default to its maximum output of 2750mA.  However, by using a resistor the output can range anywhere from 1000mA to 2750mA.

0-10V Dimming

For dimming the Xitanium uses a 150µA source current that can interface with most 0-10V dimmers. The documentation list several dimmers that the unit was tested with and includes a dim curve graph.




Technical Documentation

Input
Voltage
(VAC)
Output
Power
(W)
Output
Voltage
Range
(VDC)
Output
Current
(A)
Efficiency@
Max Load
& 70° C
Case
Max Case
Temp.
(°C)
Input
Current
(Arms)
Max.
Input
Power
(W)
Inrush
Current
(Apk/50% µs
THD
@ Max.
Load
(%)
Power
Factor
@ Max
Load
Surge
Protection
Common/
Diff (KV)
Weight
(Lbs/Kgs)
Envir.
Protection
Rating
120 95 27 - 54 1.0 - 2.75 90 90 0.9 107 50/142 < 10% > 0.95 3/3 1.77/0.8 UL damp
& dry
277 92 0.4 116/138 < 15%





Electrical Specifications @ 25°C Tcase

Parameter Performance
Line Voltage 120-277Vac_rms
Line Current 0.9A @ 120V, 0.4A @ 277V
Line Frequency 50/60Hz
Min. Mains voltage operational 108 V [min]
Max. Mains voltage operational 305V [max]
Output voltage range 27V to 54Vdc
Maximum open circuit voltage <60V
Output Current Ripple
(ripple = peak to average / average)
15% max @ max Iout
Low frequency (≤120 Hz) content <5%
Protections Short Circuit and Open Circuit Protection for LED + and LED
Ambient Temp Range -35°C to +60°C
Max Case Temperature (Tcase) 90°C
Interfaces 0-10V Dimming
AOC (Adjustable Output Current) 1000mA to 2750mA via external resistor
(refer to page 4 of documentation)
MTP (Module Temperature Protection) Current cutback (Refer to specifications below)
0-10V Dimming Specifications 150µA source current from driver, See dim curve for detail
Environmental Protection Rating UL damp and dry
Agency Approbations UL8750, UL1310, UL935, CSA-C22.2 No. 250.13-12, CSA C22.2 No. 223
Electromagnetic Compliance FCC Title 47 Part 15 Class A
Audible noise <24dB Class A




Full Documentation
